Fog/Driving Lamp Bulb: Service and Repair

Fog Lamp Bulb

Removal
1. Remove undertray for access.

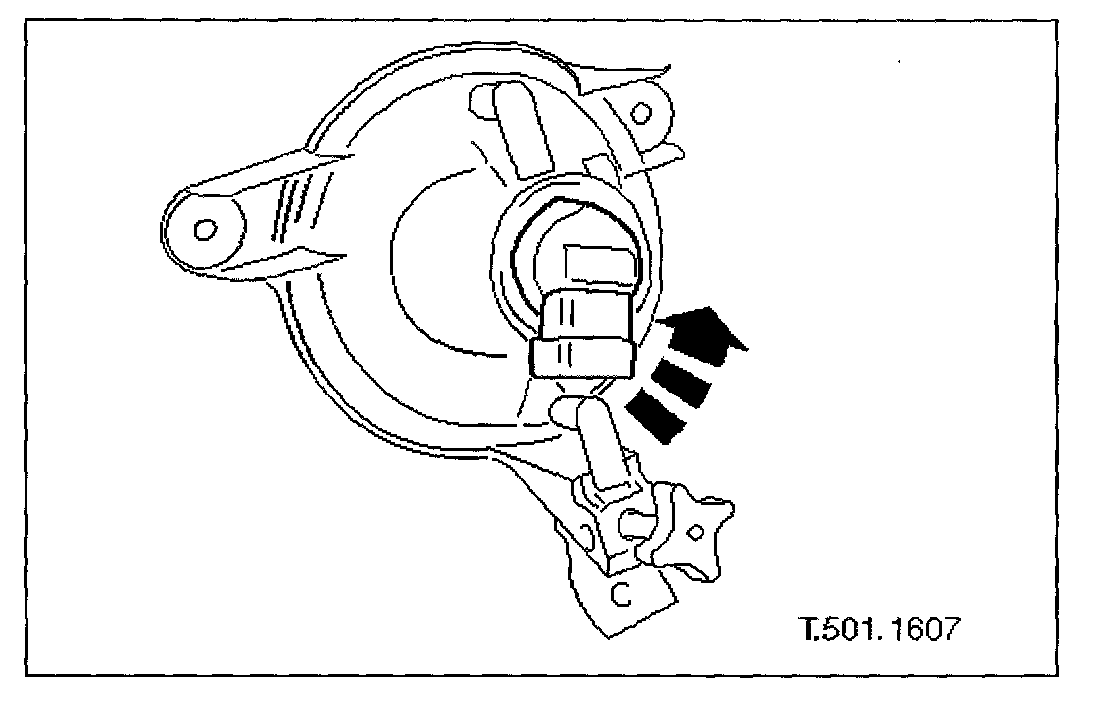

2. Disconnect fog lamp harness multiplug.







3. Rotate bulb holder 1/4 turn counter-clockwise to release and remove from lamp assembly.


4. CAUTION: If bulb is to be refitted, the glass must not be touched with the bare hand. Failure to observe this caution will result in premature bulb failure.


Remove bulb from holder.

Installation


1. CAUTION: Fog lamp bulbs are of the halogen type and must not be touched with bare hands. Failure to observe this caution will result in premature bulb failure.


Install bulb in holder.

2. Install bulb holder in lamp assembly and rotate 1/4 turn clockwise to fully seat and engage.
3. Connect fog lamp harness multiplug.
4. Install undertray.
