Timing Cover: Service and Repair

Engine front cover

Removal

1. Open the engine compartment and fit paintwork protection sheets.
2. Set the engine compartment cover to the service access position.

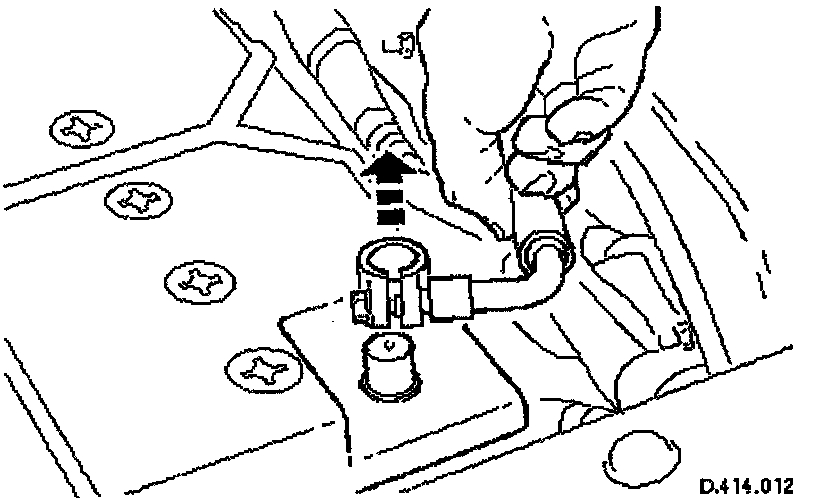

3. Disconnect the battery ground cable.
Remove the battery cover.
4. Drain the coolant from the radiator. Service and Repair

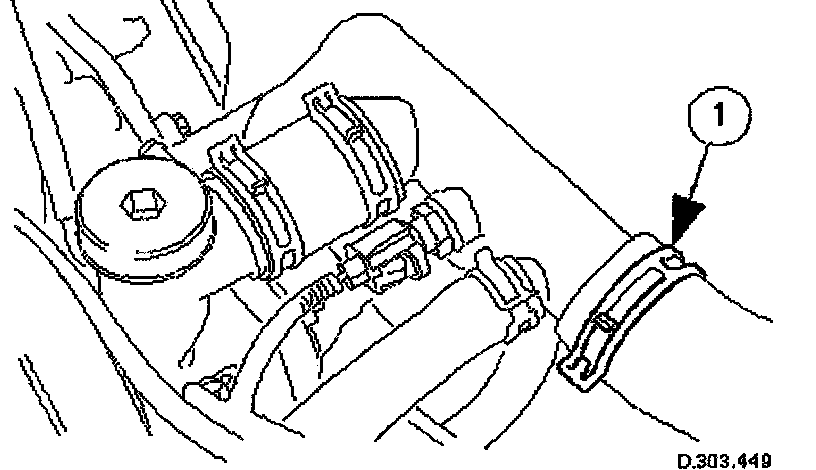

5. Disconnect the radiator top hose.
Slacken the hose retaining clip and reposition the clip along the hose.
Disconnect the hose from the radiator.

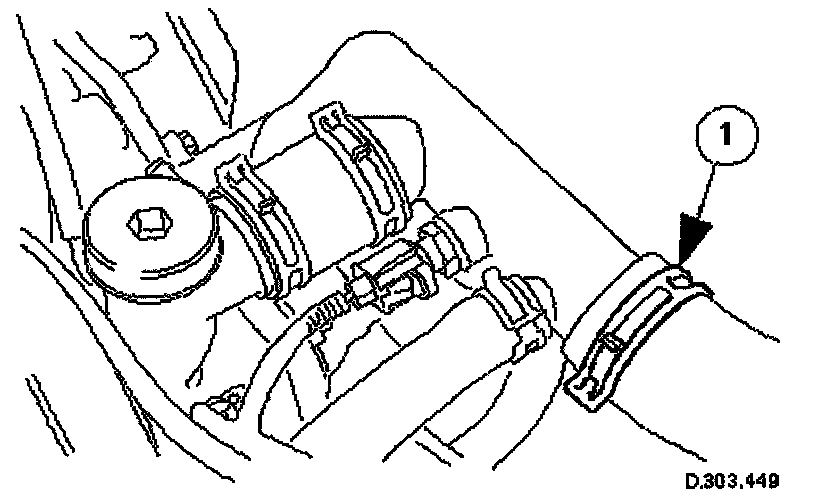

6. Disconnect the top hose from the coolant outlet pipe.
Release and reposition the hose clip, and disconnect the top hose.

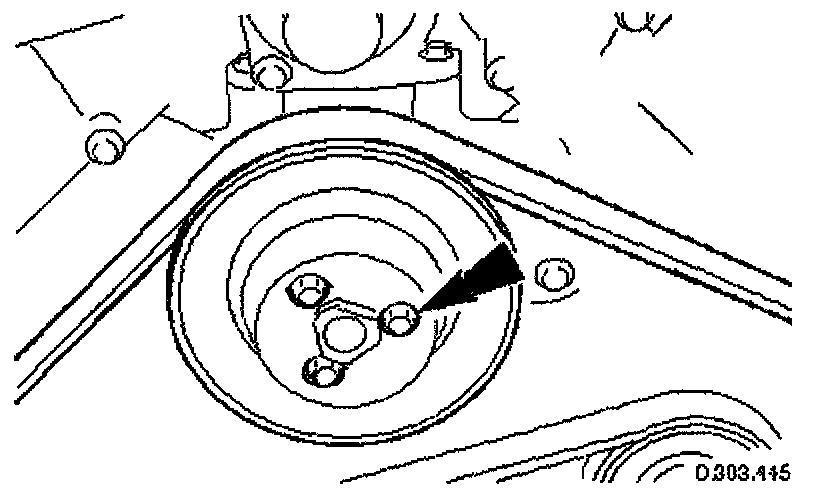

7. Slacken the three screws which secure the water pump pulley.

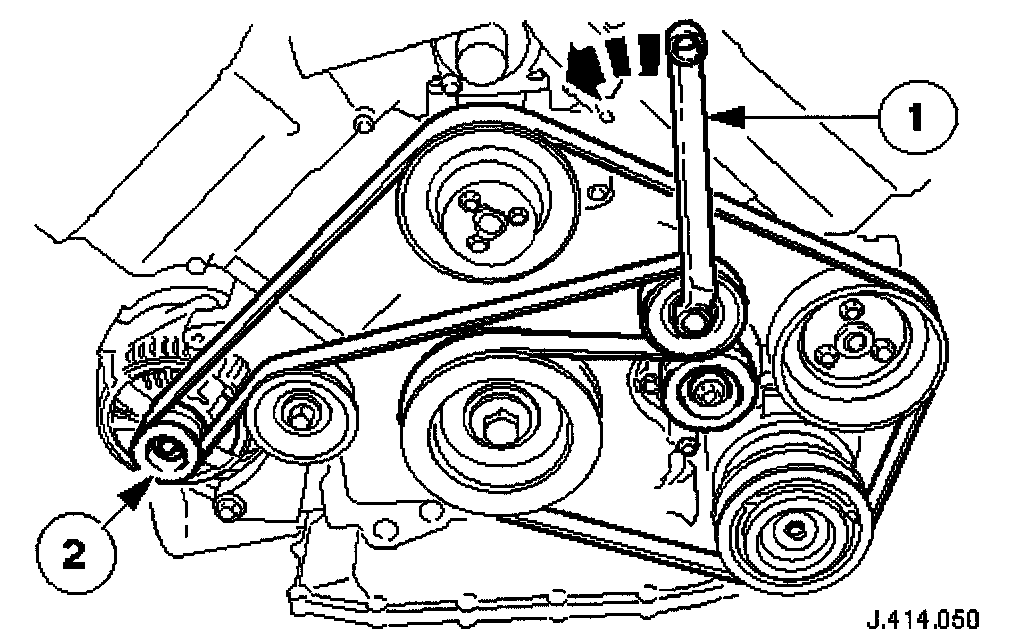

8. Remove the drive belt from the generator and accessory drive.
Use a spanner e.g. Churchill JD-230 or Snap On XDHM 1415, on the center bolt of the belt tensioner idler pulley, to turn the adjuster assembly to the left against spring tension.
Whilst holding the tensioner against spring tension, remove the drive belt from the generator pulley.
Release the tensioner slowly and remove the spanner.
Disconnect the belt from the other pulleys and remove it..

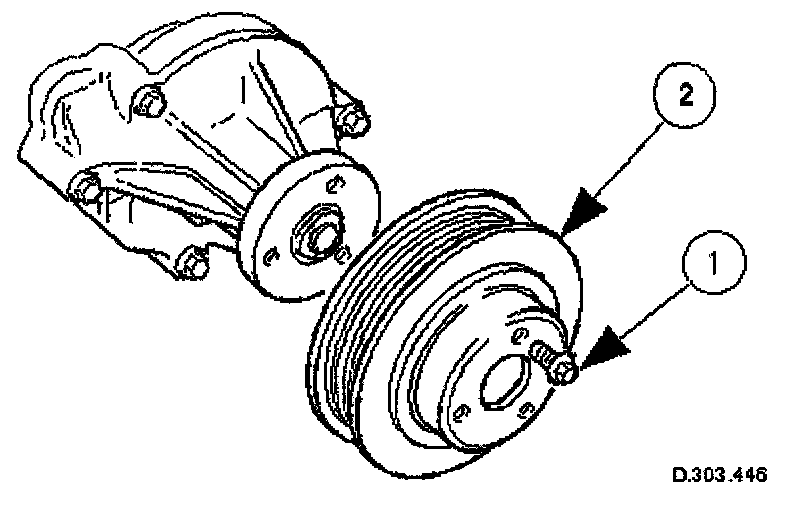

9. Remove the pulley from the water pump.
Remove the pulley securing screws.
Remove the pulley from the water pump.
10. Remove the belt tensioner assembly, from the Front Accessory Drive. Service and Repair
11. Remove the idler pulley, from the Front Accessory Drive. Service and Repair
12. Remove the crankshaft damper. Service and Repair
13. Carefully remove the engine covers, taking care not to damage the plastic fixings or the rubber inserts.





14. Disconnect the intake tube from the throttle body.
Remove the two bolts which secure the intake tube to the throttle body.
Disconnect the intake tube from the throttle body.





15. Disconnect the air cleaner cover.
Release the five clips which secure the air cleaner cover.
16. Disconnect the air flow meter multi-plug.





17. Remove the intake tube / air flow meter / air cleaner cover assembly.
Remove the intake tube / air flow meter / air cleaner cover assembly.
Remove and discard the rubber seal; air intake tube to throttle body.
18. Remove the purge valve, from the evaporative control system.
19. Remove the on-plug ignition coils.





20. Disconnect the engine harness retaining clips from the Bank 1 timing cover.





21. Disconnect the engine harness retaining clips from the Bank 2 timing cover.
22. Remove the camshaft covers. Service and Repair

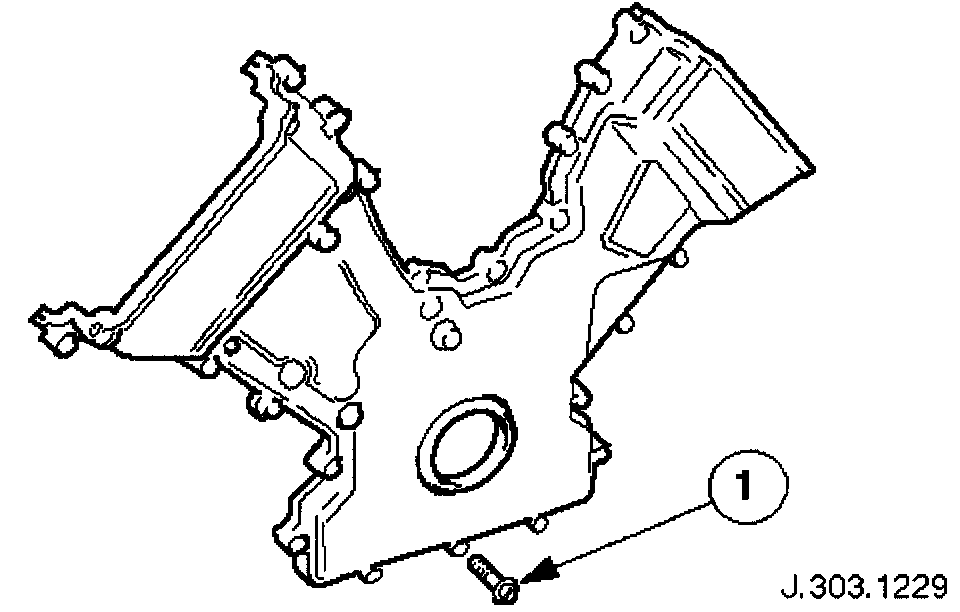

23. Remove the timing cover securing bolts.
Remove the twenty-four bolts which secure the timing cover.





24. Remove the timing cover, step 1.
Ease the cover towards the front of the vehicle to separate it from the engine.





25. Remove the timing cover, step 2.
Standing at the right hand side of the vehicle, rotate and manoeuvre the cover upwards to clear the water pump and hoses.

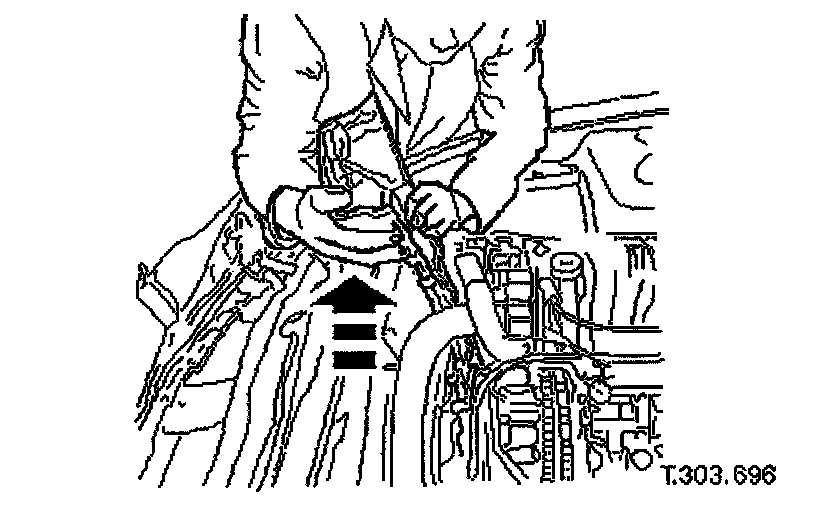

26. Remove the timing cover, step 3.
Lift the cover clear of the engine compartment.
27. Clean all parts and mating faces.

Installation





1. Install new seals to the timing cover.
Install and fully locate, a new seal to the inner groove on the face of the timing cover.
Install and fully locate, a new seal to the outer groove on the face of the timing cover.
Remove the transit ring and check that the oil seal is not damaged.

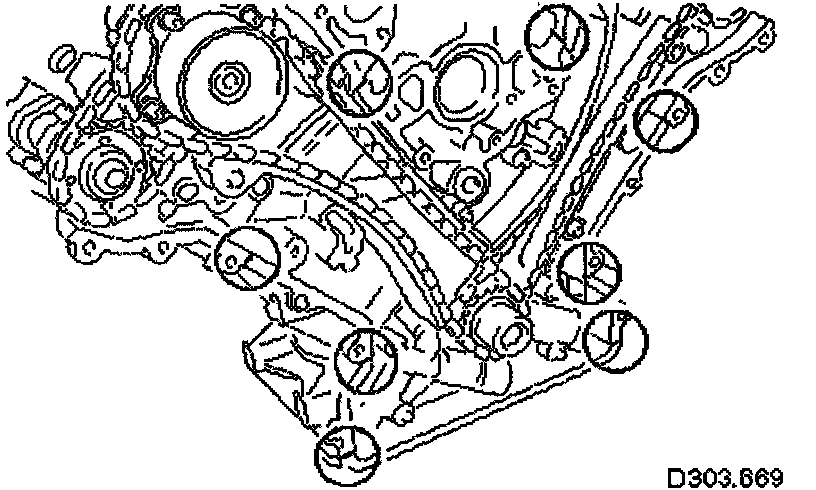

2. Apply sealant to the eight joints on the engine face.
Sealant beads to be 3 mm diameter and 12 mm long.
Cut the nozzle of the sealant tube to produce a 3 mm bead.
(Install and tighten the securing bolts within twenty minutes of sealant application)

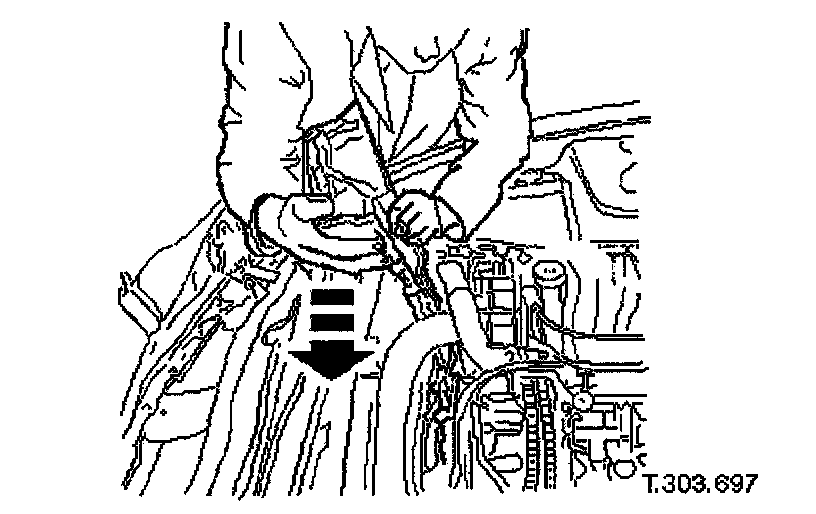

3. Install the timing cover, step 1.
Lower the cover into the engine compartment, to its approximate position.





4. Install the timing cover, step 2.
Standing at the right hand side of the vehicle, rotate and manoeuvre the cover downwards to clear the water pump and hoses.





5. Install the timing cover, step 3.
Ease the cover towards the engine and locate it directly onto the dowels so that the gaskets or sealant are not smeared.

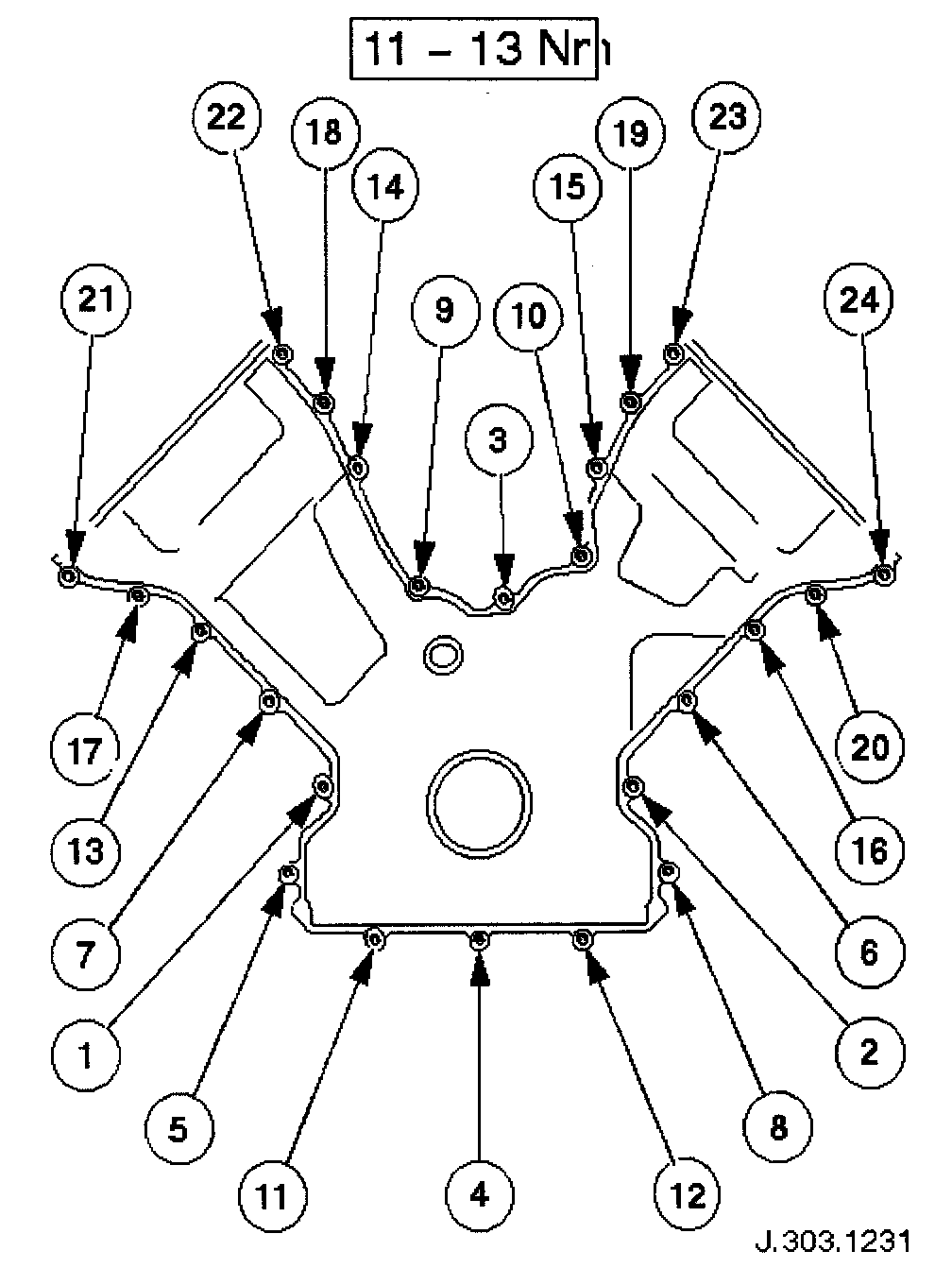

6. Install and tighten the securing bolts in the correct order.
Tighten to 11 - 13 Nm.
7. Install the camshaft covers.
8. Install the on-plug ignition coils and coil covers.
9. Install the purge valve.





10. Reposition and secure the engine harness clips to the Bank 1 timing cover.





11. Reposition and secure the engine harness retaining clips to Bank 2 timing cover.





12. Install the intake tube / air flow meter / air cleaner cover assembly.
Install a new rubber seal; air intake tube to throttle body.
Install the intake tube / air flow meter / air cleaner cover assembly.





13. Reconnect the air cleaner cover.
Install the five clips which secure the air cleaner cover.





14. Connect the intake tube to the throttle body.
Connect the intake tube to the throttle body.
Install the two bolts which secure the intake tube to the throttle body.
15. Reconnect the air flow meter multi-plug.
16. Install the engine covers.
17. Install the crankshaft damper.
18. Install the idler pulley, to the Front Accessory Drive.





19. Install the belt tensioner assembly, to the Front Accessory Drive.





20. Install the pulley to the water pump.
Install the pulley to the water pump.
Install the pulley securing screws.
Tighten as far as possible; then to the correct torque after the belt has been installed.





21. Install the drive belt to the generator and accessory drive.
Locate the belt around the pulleys, except the generator pulley.
Use a spanner e.g. Churchill JD-230 or Snap On XDHM 1415, on the center bolt of the belt tensioner idler pulley, to turn the adjuster assembly to the left against spring tension.
Whilst holding the tensioner against spring tension, connect the drive belt to the generator pulley.
Release the tensioner slowly and remove the spanner.

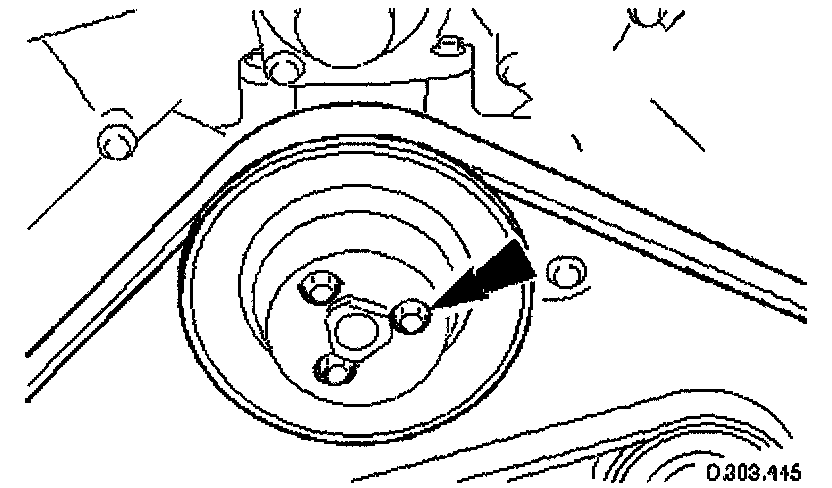

22. Tighten the three screws which secure the water pump pulley, to 10 - 14 Nm.





23. Connect the top hose to the coolant outlet pipe.
Connect the top hose. Reposition the hose clip and tighten.





24. Connect the radiator top hose.
Connect the hose to the radiator.
Reposition the clip along the hose and tighten the clip.
25. Reset the engine compartment cover to the normal position and connect the gas struts.
26. Connect the battery and install the battery cover.
27. Refill the cooling system.
28. Remove the paintwork protection sheets and close the engine compartment.
