Trunk, Engine Compartment and EMS Fuse Boxes

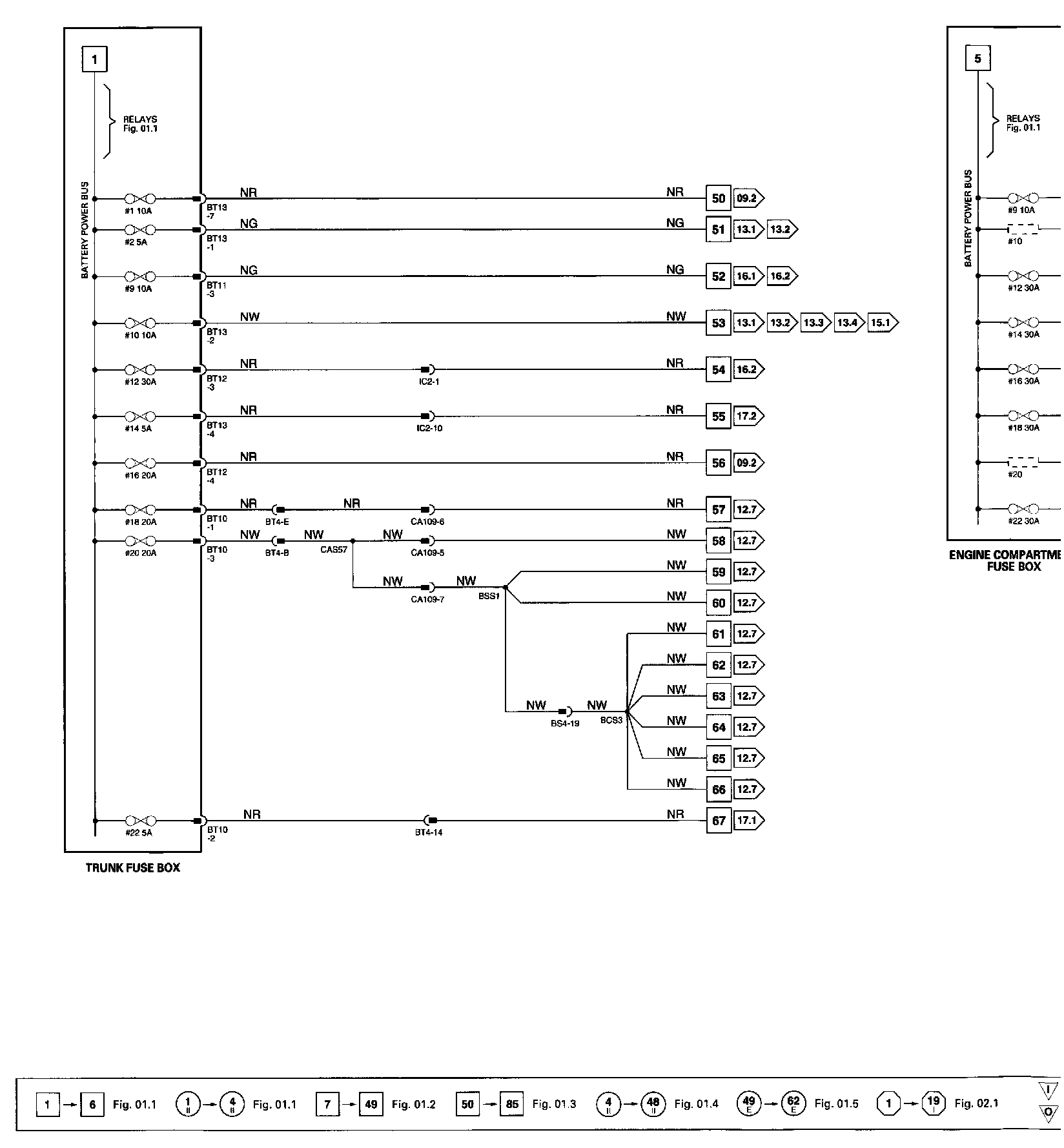

�1�Wiring Diagram:

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

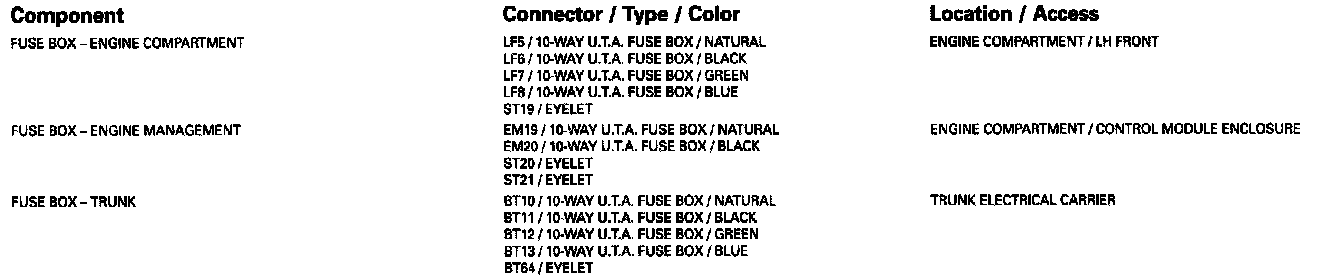

Components:

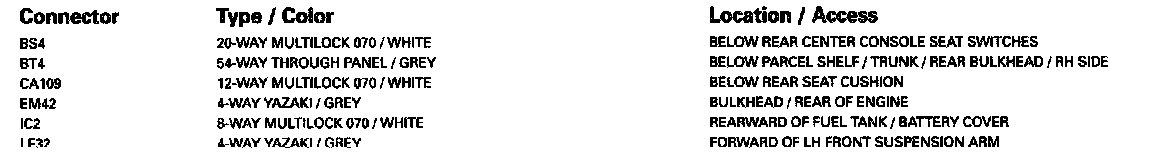

Harness-To-Harness Connectors:

Refer to Vehicle / Locations for detailed information and illustrations regarding the location and identification of harnesses, relays, grounds and control modules. Locations

For detailed information and illustrations regarding the location and identification of control module pins, refer to Vehicle / Diagrams / Connector Views. Connector Views
