CAN and SCP Networks

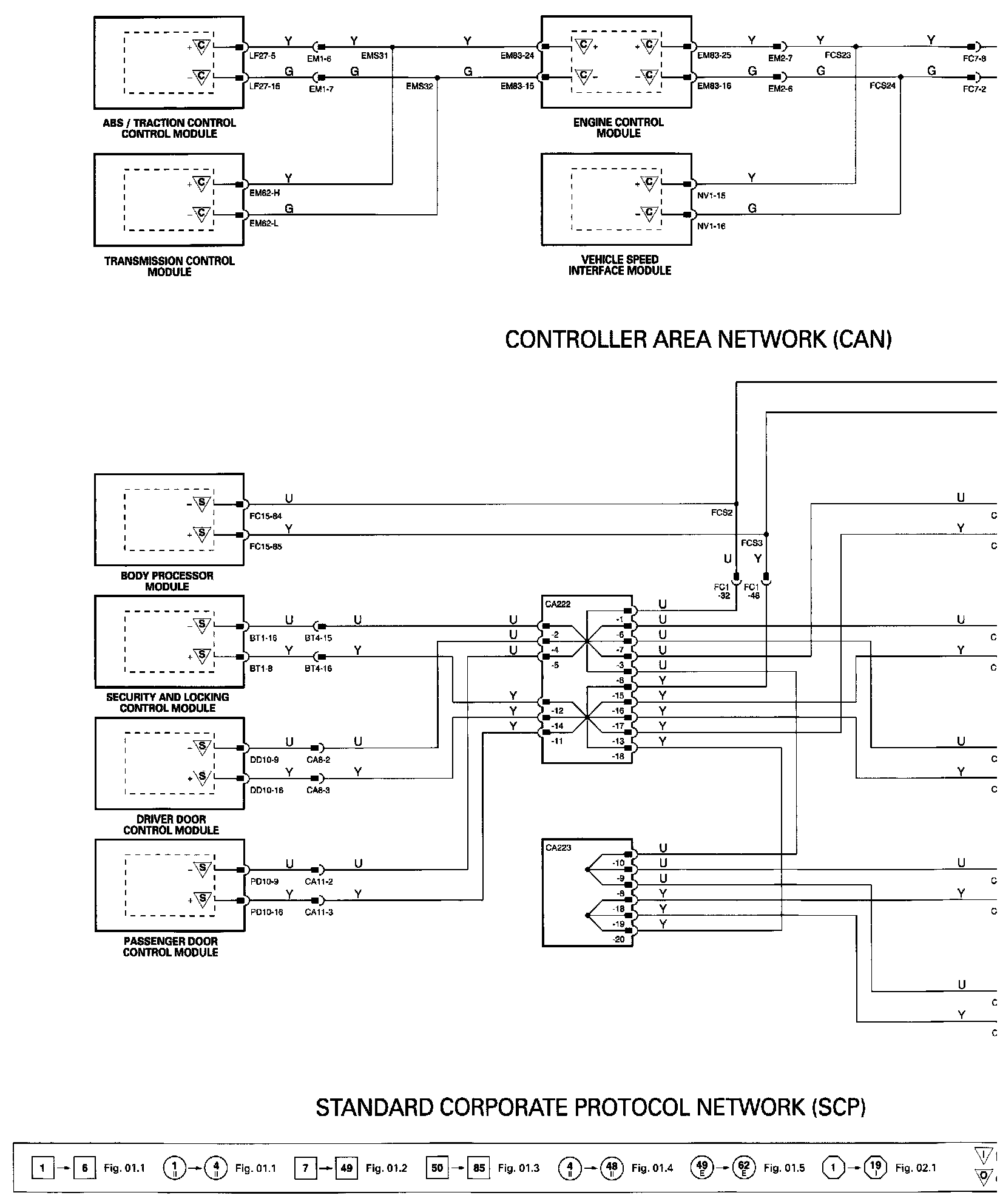

�U�Wiring Diagram:

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

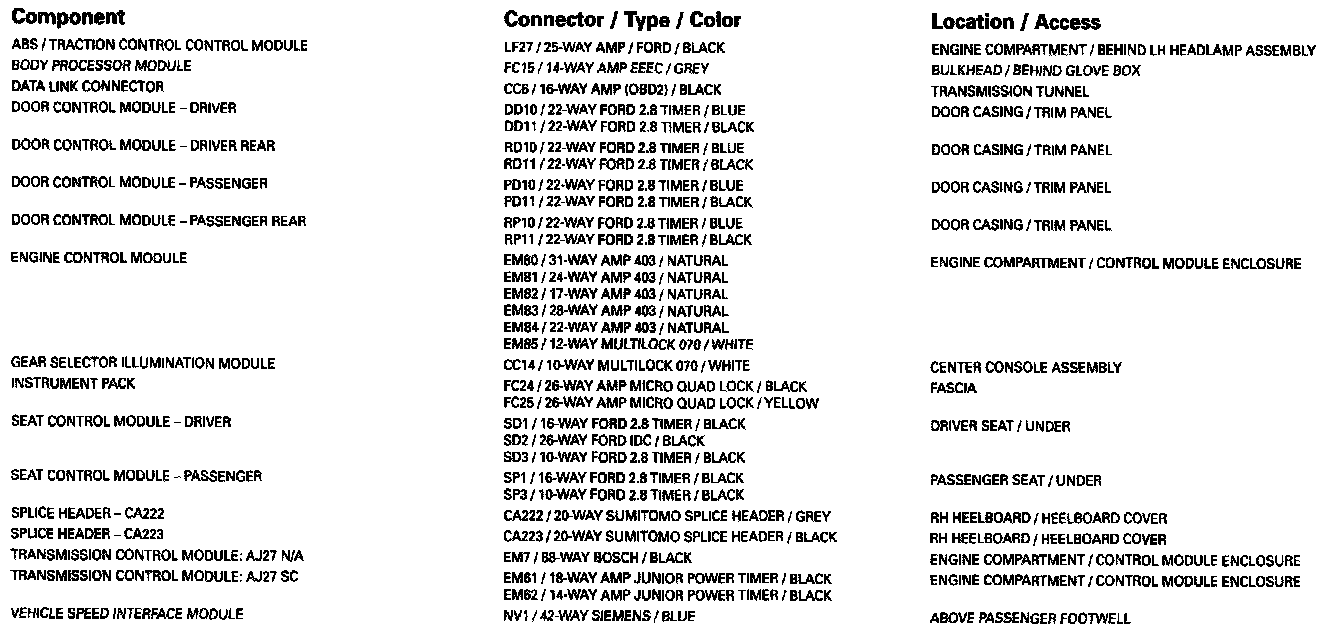

Components:

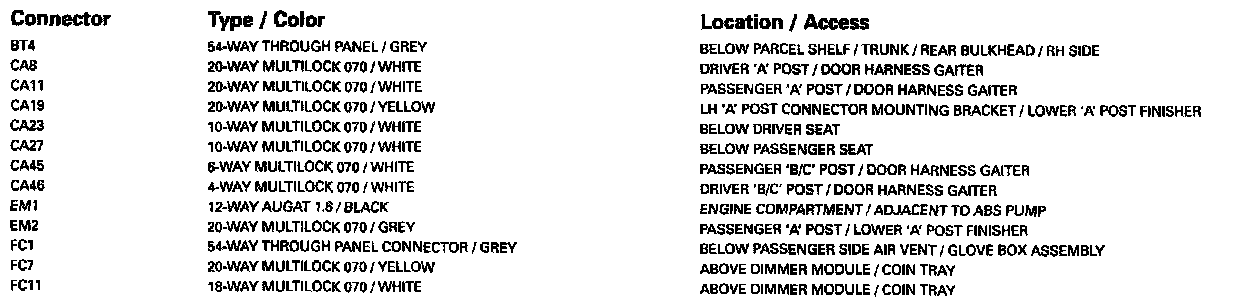

Harness-To-Harness Connectors:

Grounds:

NOTE: Refer to the Description and Operation for CAN and SCP Network Messages. Description and Operation

Refer to Vehicle / Locations for detailed information and illustrations regarding the location and identification of harnesses, relays, grounds and control modules. Locations

For detailed information and illustrations regarding the location and identification of control module pins, refer to Vehicle / Diagrams / Connector Views. Connector Views
