Veneer Panel, Daimler and Vanden Plas Models

Removal

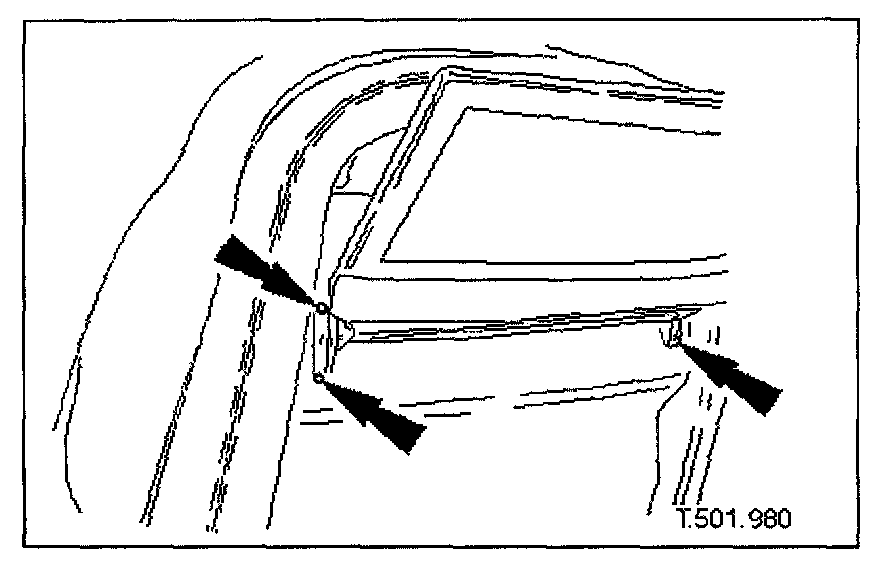

1. Remove screws securing picnic tray hinges to seat back finisher and remove tray from seat.

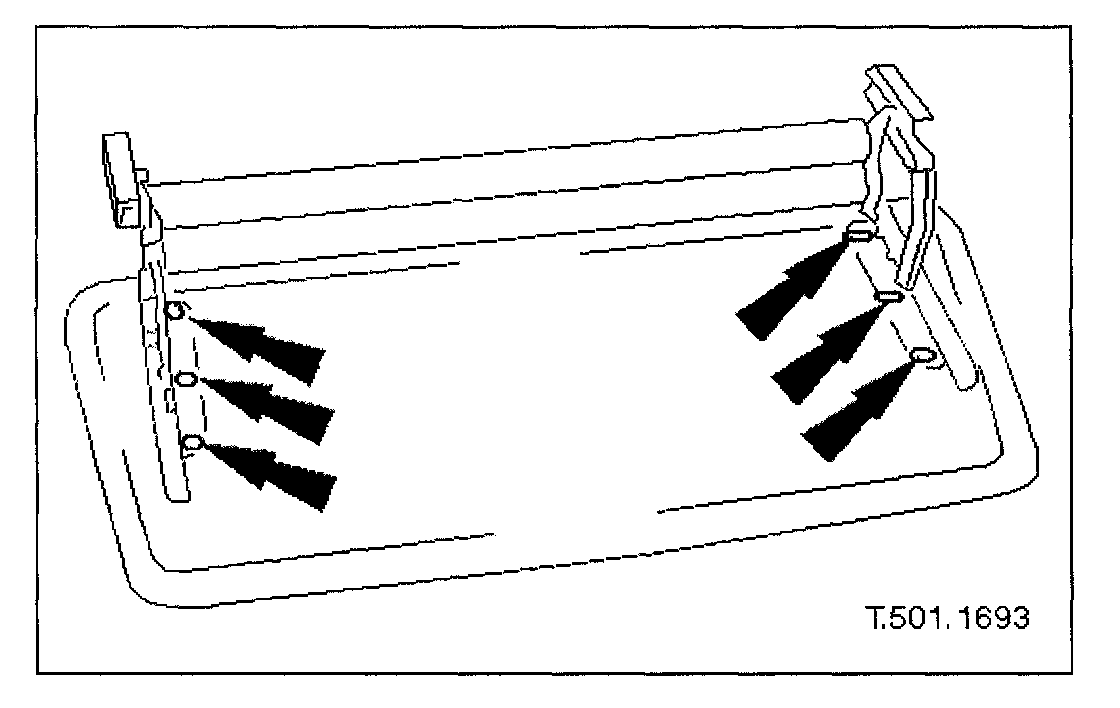

2. Remove screws securing hinges to picnic tray. and remove hinges from tray







3. Remove clips from hinge center securing screw positions.

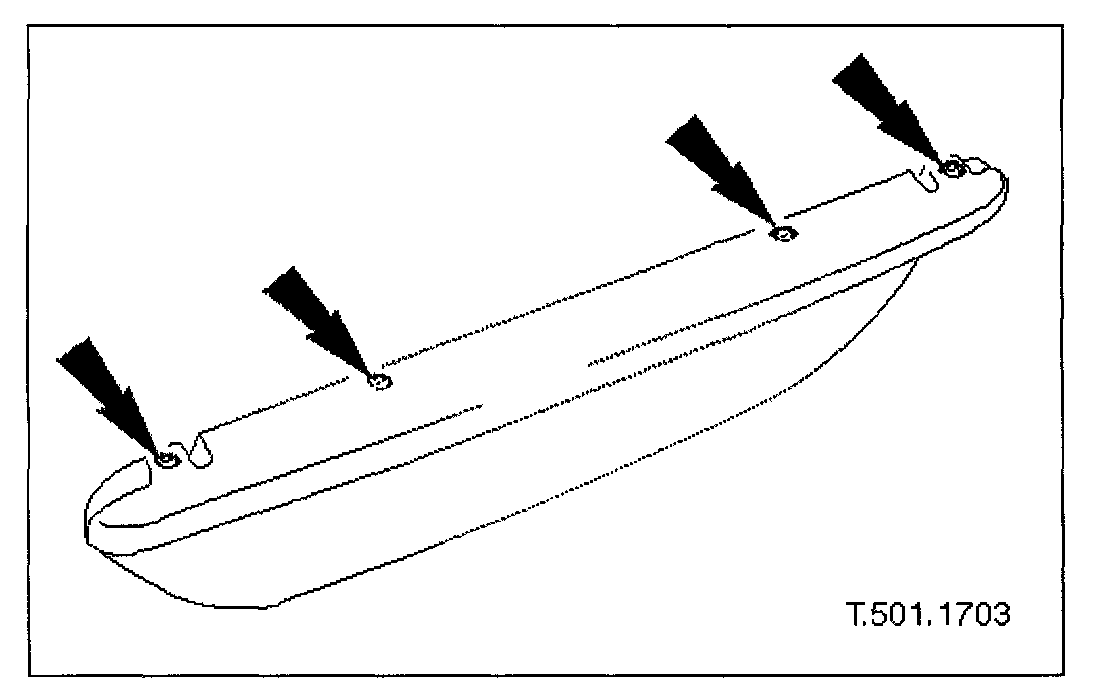

4. Remove trim securing screws and remove trim from veneer panel.


Installation
1. Position trim on veneer panel and install trim securing screws.
2. Install clips at hinge center securing screw positions.
3. Position hinges on veneer panel and install securing screws.
4. Position hinges on seat back finisher and install securing screws.
