Synchronising Control Module With Sliding Roof Panel

SYNCHRONISING CONTROL MODULE WITH SLIDING ROOF PANEL

Removal
1. Remove sliding roof trim panel for access. Service and Repair
2. Remove battery cover and disconnect ground cable from battery terminal.
3. Remove roof console for access.
4. Remove sliding roof panel control module.

Installation

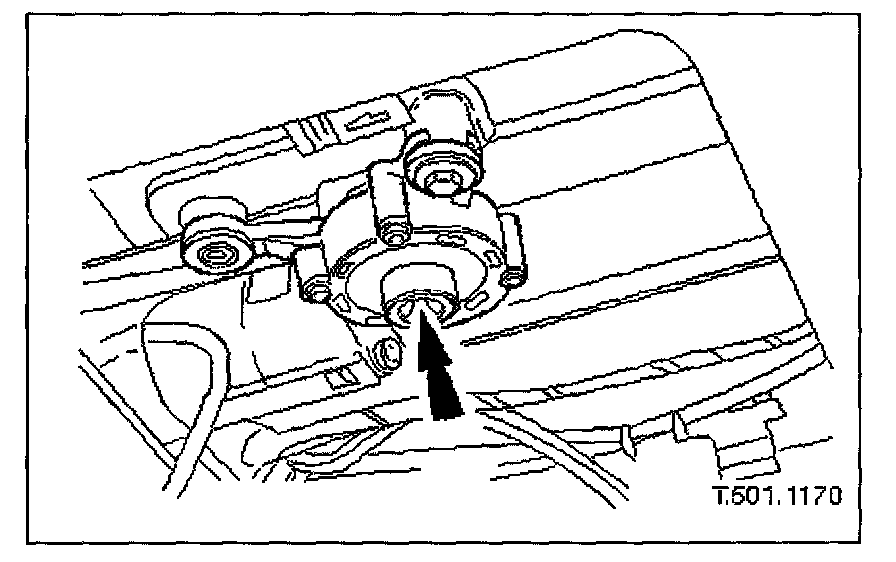

1. Using a drive key or screwdriver in the motor gearbox slot, manually move the sliding roof towards the closed position.

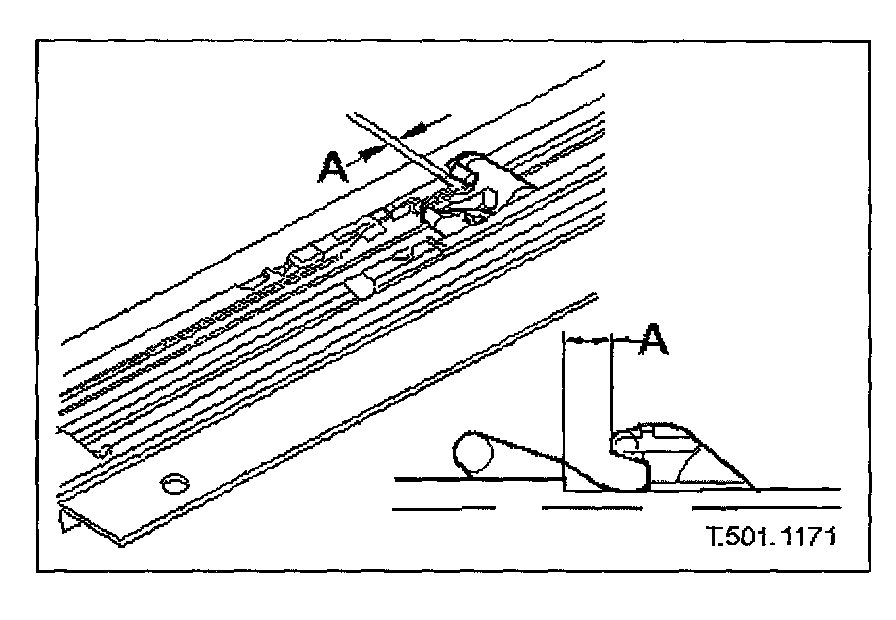

2. Position the sliding roof with an 8 mm gap between the driven lever and the guide rail step.







3. Index control module gears.

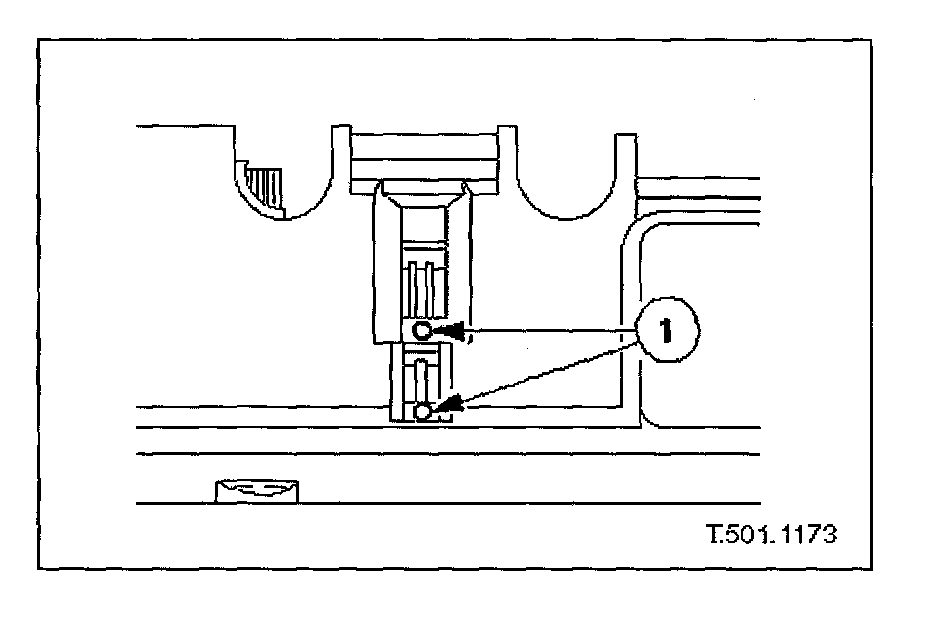

1. Viewing gears through aperture in control module, rotate adjuster wheel until white indexing marks on gears are aligned.
4. Fit control module to sliding roof frame.
5. Using a drive key or screwdriver in the motor gearbox slot, manually rotate the spindle 1/4 turn counter-clockwise to re-engage the motor drive.
6. Fit roof console.
7. Connect ground cable to battery terminal and fit battery cover.
8. Check for satisfactory operation of sliding roof panel by fully opening and closing.
