Sliding Roof Flange Finisher

Removal
1. Remove sliding roof trim panel for access.
2. Turn ignition switch to position II.
3. Fully open sliding roof panel.
4. Turn ignition switch to 0 and remove key.

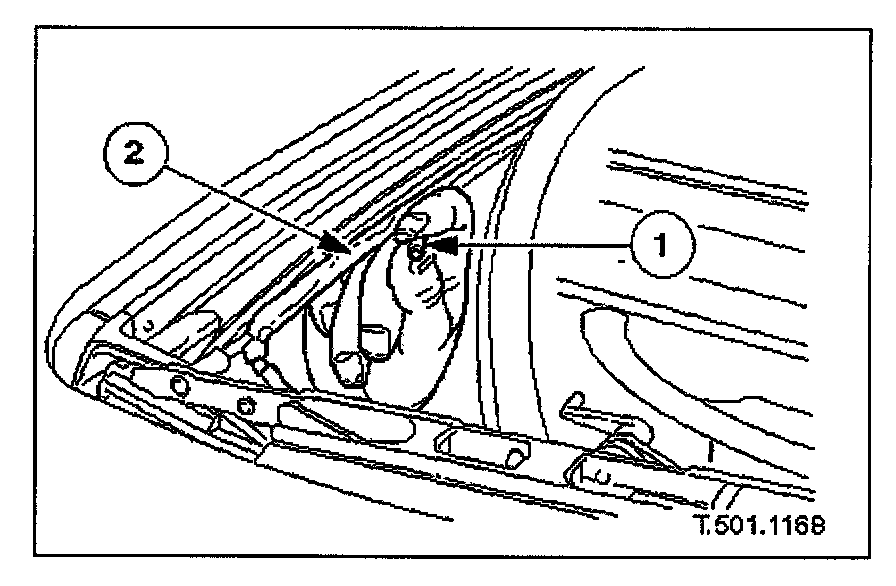

5. Remove finisher.
Exercising care to avoid damaging edge of headlining, remove aperture trim finisher from flange. Release headlining from BIW aperture flange.


Installation
1. Fit edge of headlining over BIW aperture flange.
2. Fit and fully seat trim finisher to flange.
3. Insert key and turn ignition switch to II.
4. Close sliding roof panel.
5. Turn ignition switch to 0.
6. Fit sliding roof trim panel.
