Obscuration Bands

OBSCURATION BANDS

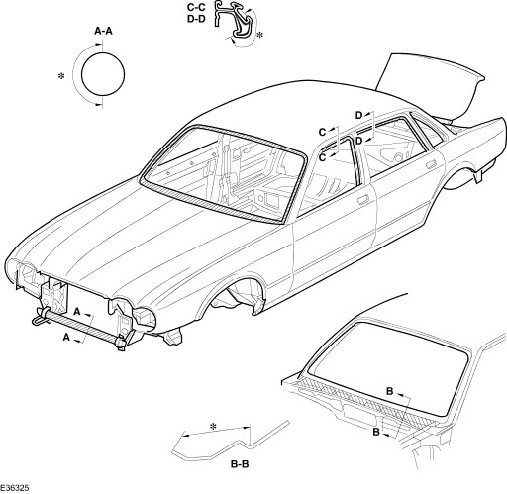

To mask unsightly areas between panels, through gaps and under bonded glass, matt black paint with heat resistance of 40 degrees to 120 degrees C is applied in the areas indicated by hatching and asterisks.

NOTE: This process is not required on dark colored vehicles.

Obscuration Bands
