Passenger Side Cantrail and Upper 'A' Post Trim Pad

PASSENGER SIDE CANTRAIL AND UPPER 'A' POST TRIM PAD

Removal
1. Remove front and rear grab handles. Service and Repair
2. Remove draught welt from adjacent section of door aperture flange.

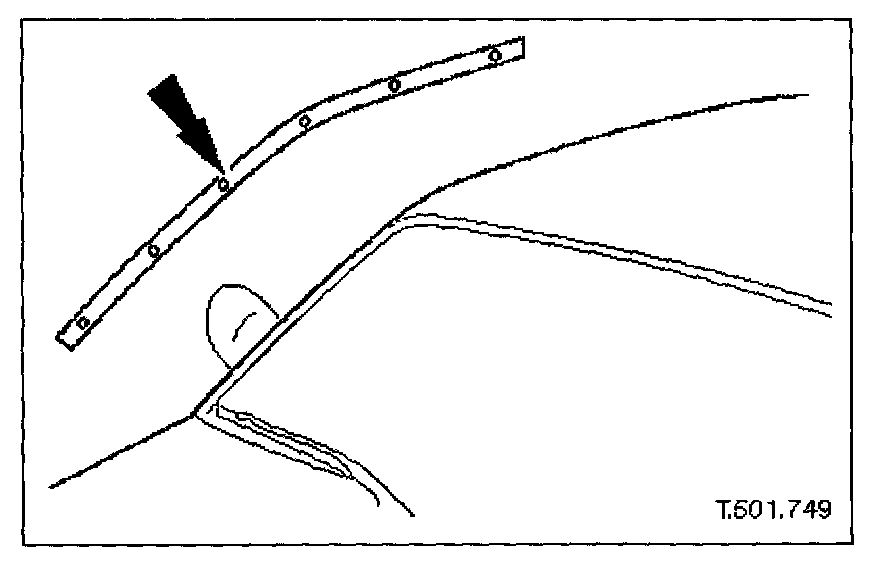

3. Using a trim removal tool, carefully ease the six trim pad fir tree fasteners from cantrail and upper 'A' post locations.
4. If premium ICE is fitted, carefully withdraw trim pad for access and disconnect tweeter connectors.
5. Remove trim pad from vehicle and remove tweeter.
6. Remove and discard fir tree fasteners.

Installation
1. Fit new fir tree fasteners to the trim pad.
2. Fit tweeter to trim pad.
3. Position trim pad for access and connect tweeter to harness.
4. Commencing at top of 'A' post and working rearwards, fully seat three fir tree fasteners.
5. Fully seat remaining three fir tree fasteners in upper 'A' post.
6. Fit front and rear combined grab handles. Service and Repair
7. Fit draught welt to adjacent section of door aperture flange.
