Roof Console Veneer Panel

ROOF CONSOLE VENEER PANEL

Removal
1. Remove battery cover and disconnect ground cable from battery terminal.
2. Remove roof console.

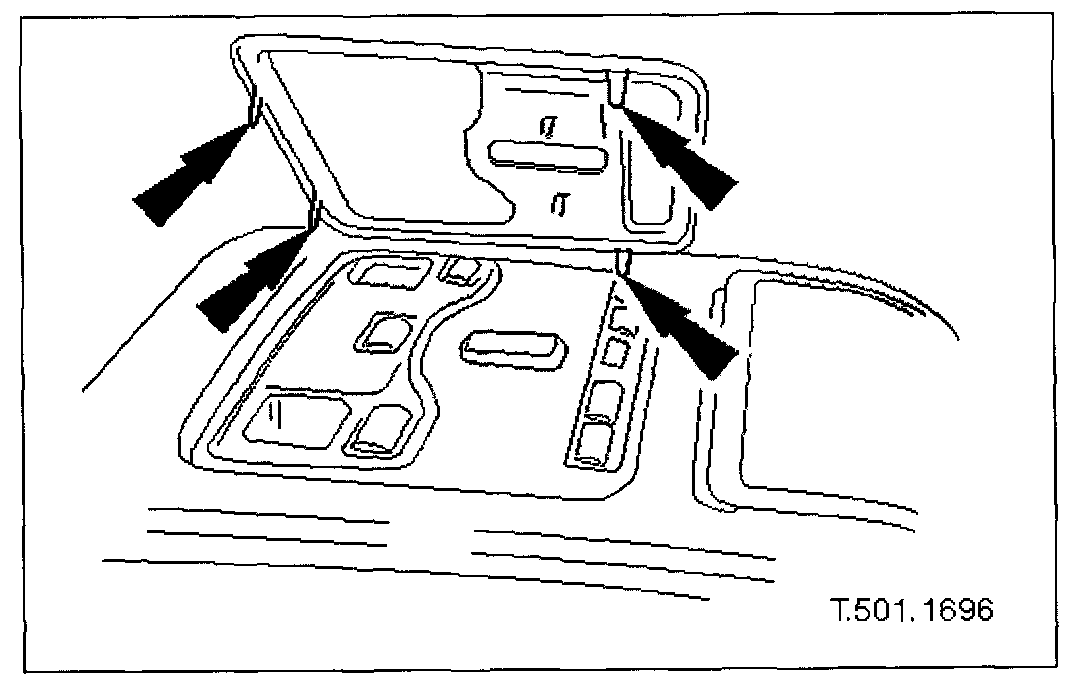

3. Bend back veneer panel retaining tangs from console and using a thin blade, carefully release panel from console.

Installation
1. Remove backing paper and apply adhesive pad to back of panel.
2. Position and fully seat veneer panel on console.
3. Bend retaining tangs to secure veneer panel to console.
4. Install roof console.
5. Connect ground cable to battery terminal and install battery cover.
