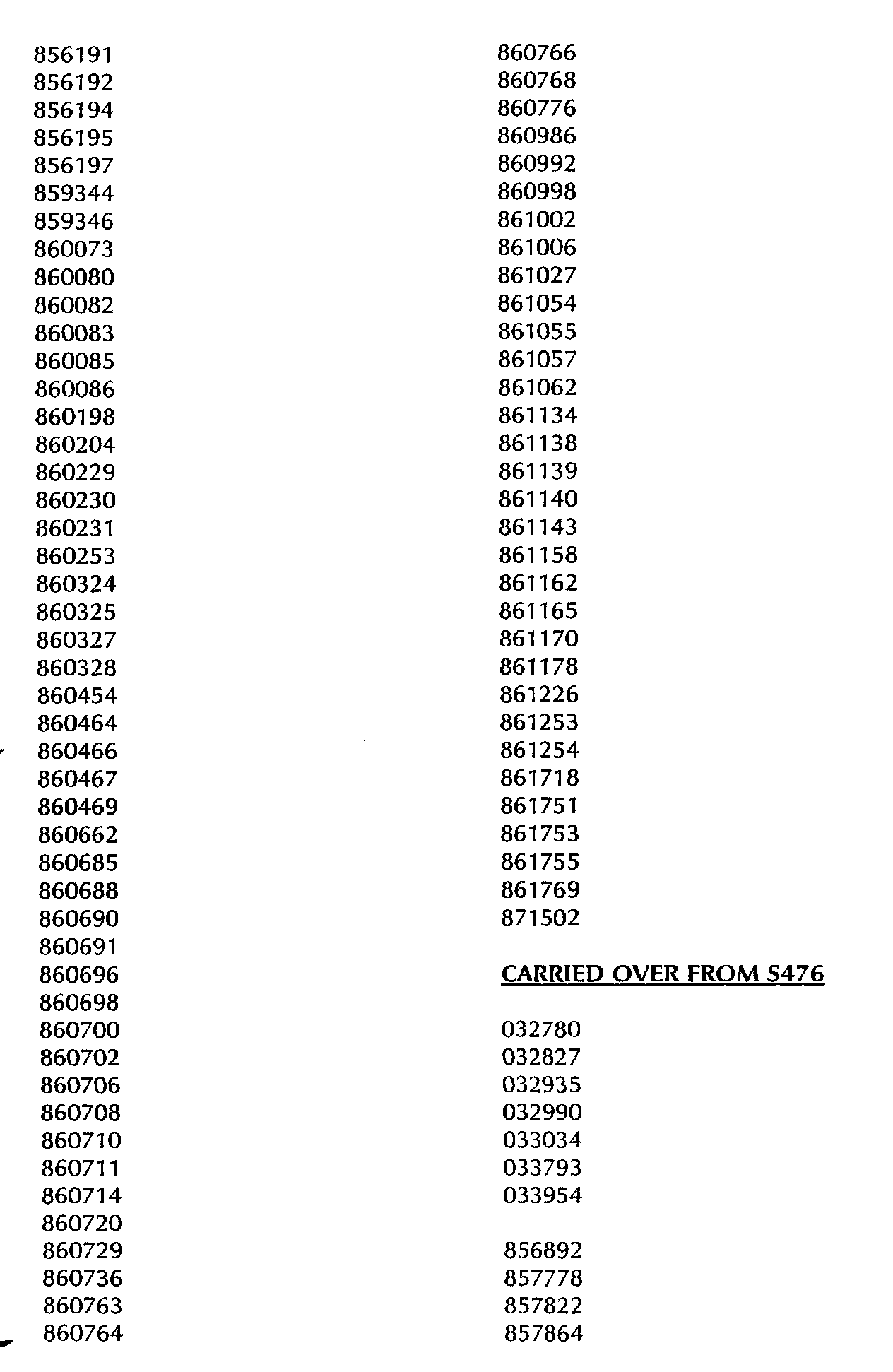

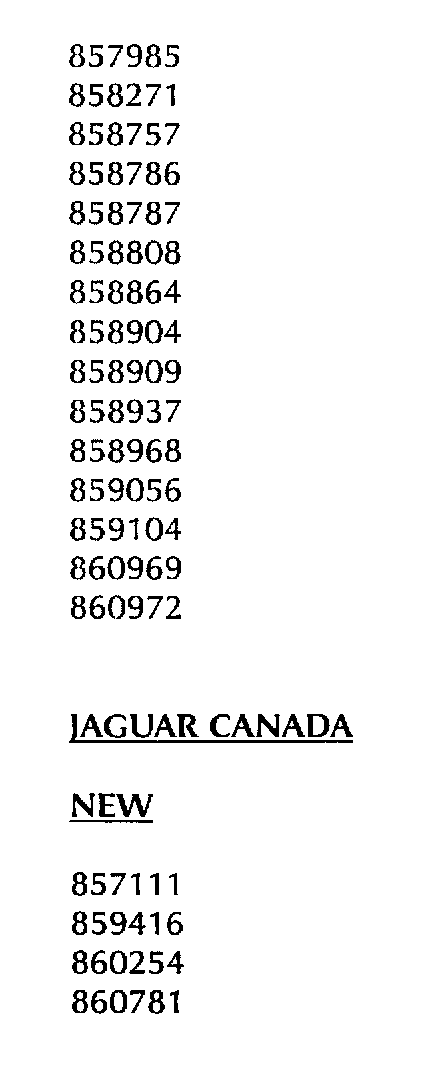

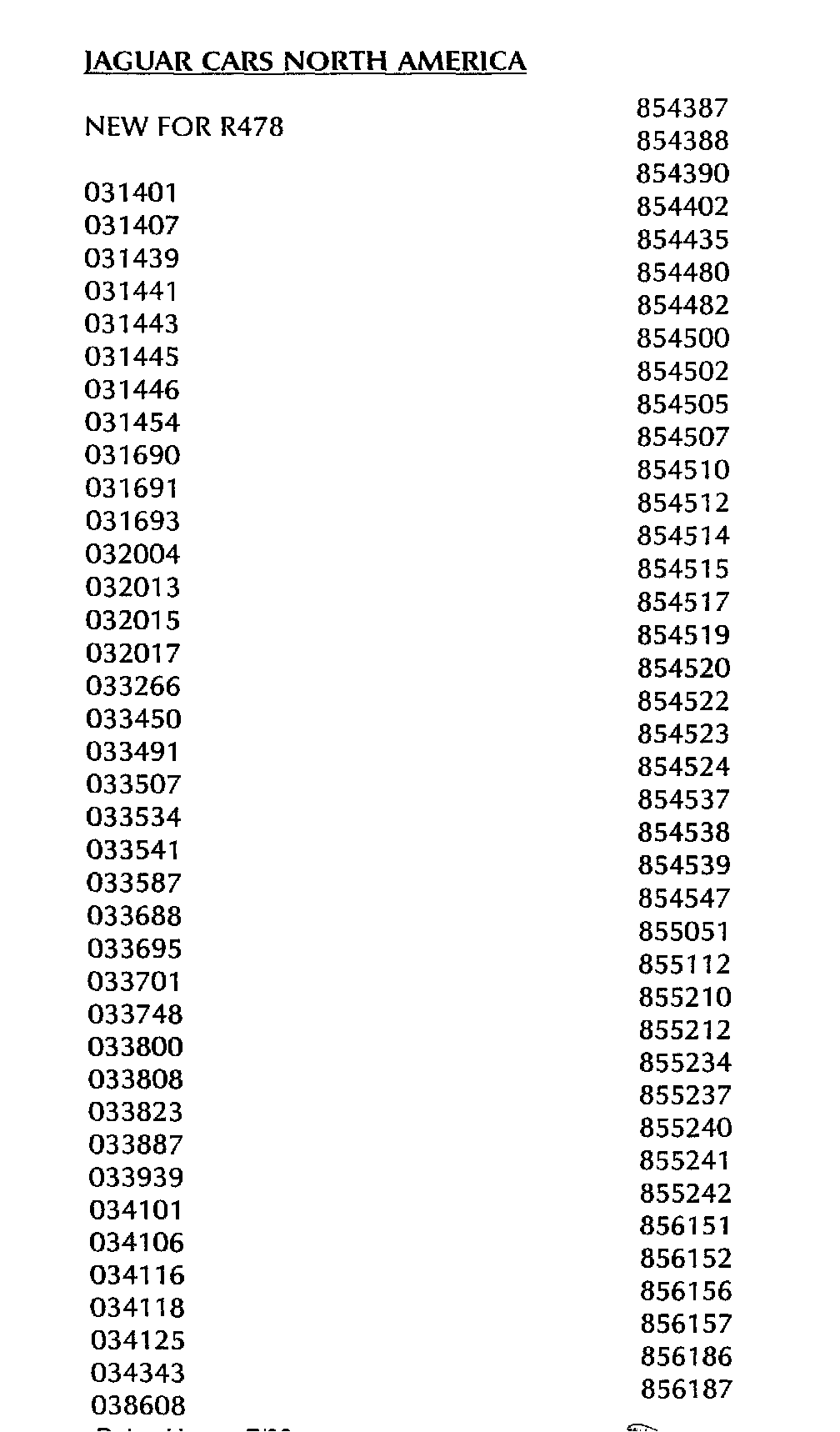

List of Affected Vehicles and Markets

LIST OF AFFECTED VEHICLES AND MARKETS











Parts Information:

DESCRIPTION PART NO. QTY/VEH
Automatic Transmission W/ torque converter,
supplied pre-filled NNE 44OOAA/NK 1
Seal - oil cooler pipe EBC 4899 2
Bolt - torque converter to drive plate EAC 5580 3
Gasket - exhaust manifold to catalytic converter EAZ 2050 2
Nut, catalytic converter to downpipe (VDP only) FN 110041/J 4
Nut, catalytic converter to manifold JZN 100021 8
Gasket - catalytic converter to front
downpipe (VDP only) NNC 6764AB 2
Oil, auto transmission (1 liter container) JLM 20237 See note

Note:
Transmissions will be supplied overfilled, to compensate for the small loss of ATF when the cooler pipes are disconnected and reconnected. No ATF will normally be required for unsold vehicles in stock. For vehicles which have already been run in service, 1 liter of ATF is required to flush the oil cooler and connecting pipes.

RETURN OF REMOVED TRANSMISSIONS:

USA dealers

For this recall, return all removed transmissions, complete with torque converters, to ZF USA as soon as possible, reusing the packaging in which the new units were supplied. Ensure that the procedures below are followed before returning the transmission.

^ Torque converters should not be removed from the transmissions. Ensure that the torque converter retaining strap is transfered over to the removed unit.

^ Drain all oil before repacking for transit. Remove the drain plug from the sump pan, drain the oil and reinstall and tighten the drain plug.

^ Transfer all shipping plugs from the new unit to the removed unit.

^ All removed gaskets and seals along with all drained transmission oil should be discarded.

^ Make a copy of the shipping ticket and attach it to the bar code label to ensure proper credit on the claim. Send both to:

Jaguar Cars

Att: Warranty Parts Return

Canada dealers

Follow the normal return policy, i.e. await disposition list, then return the transmission to Jaguar Canada.
