Oil Pump Front Seal

Front Seal - Oil Pump

Removal
1. Remove the transmission unit.
2. Remove the torque converter from the transmission unit.





3. Remove the front pump seal.
Remove and discard the seal retaining snap-ring.

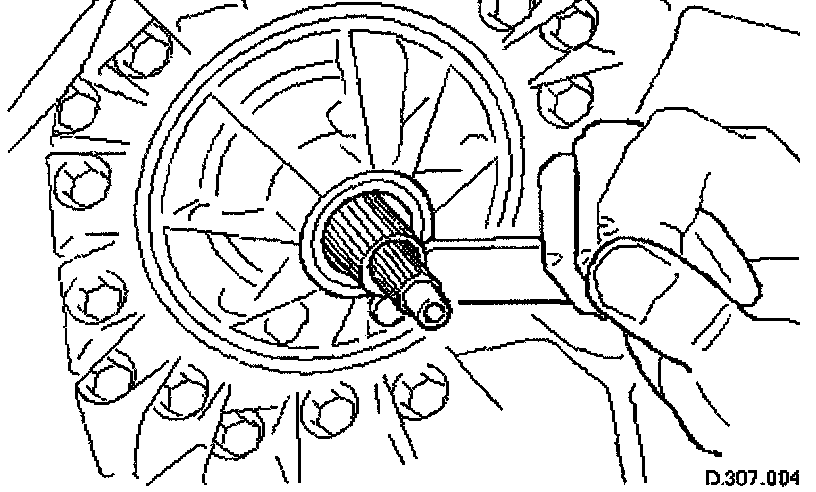

Using a 'Snap-on' oil seal puller, remove and discard the seal.
4. Clean the seal housing.

Installation
1. Installation is the reverse of the removal procedure.

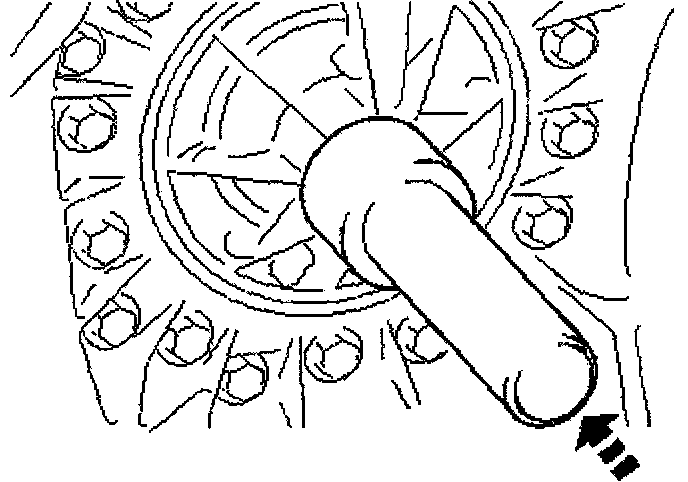

2. Use tool 307 - 357 to install the seal. Lubricate the seal prior to fitting.
