Home >> Jaguar >> 1999 >> XK-8 Convertible (X100) V8-4.0L (AJ27) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Connector Views

Connector Views








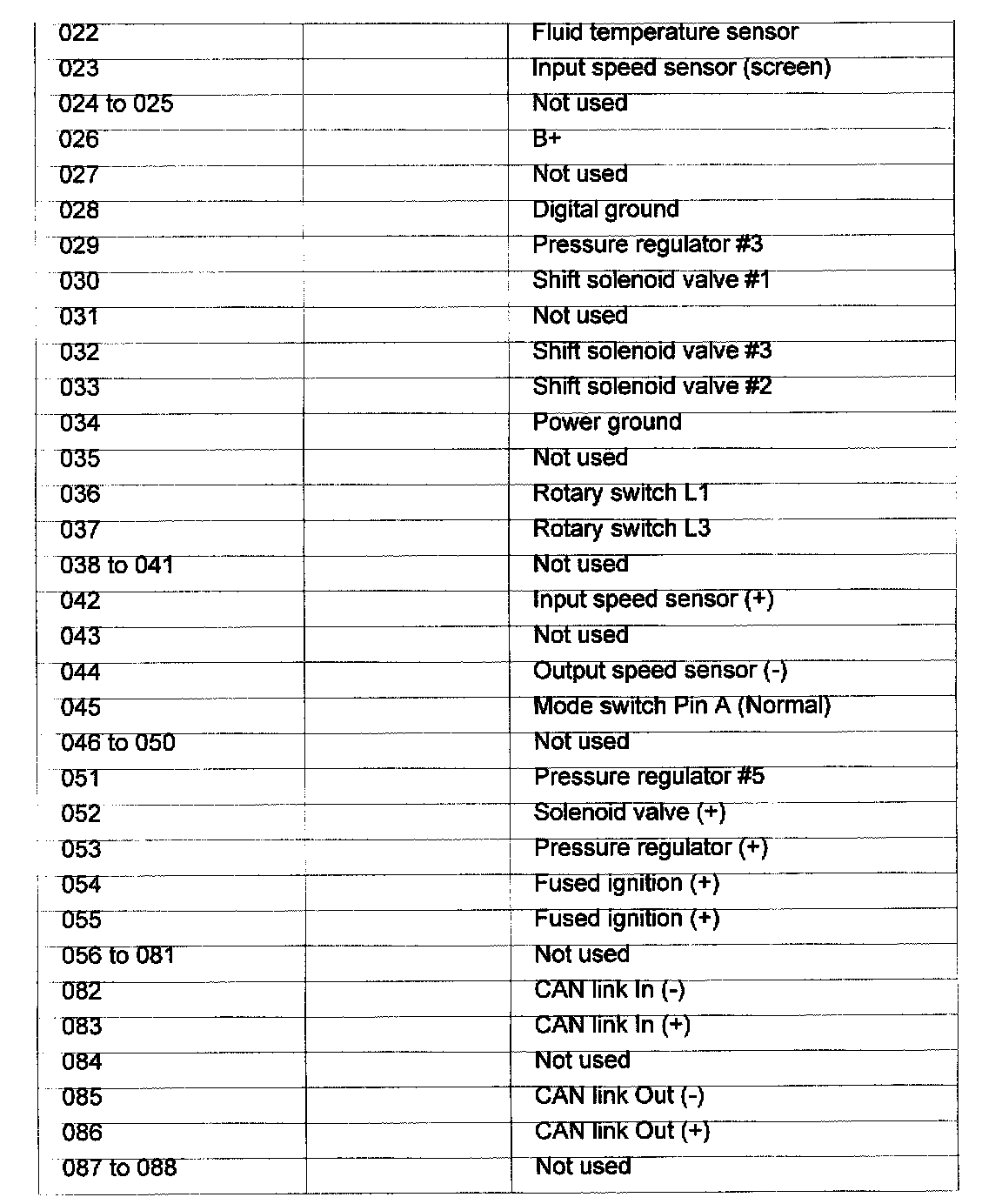

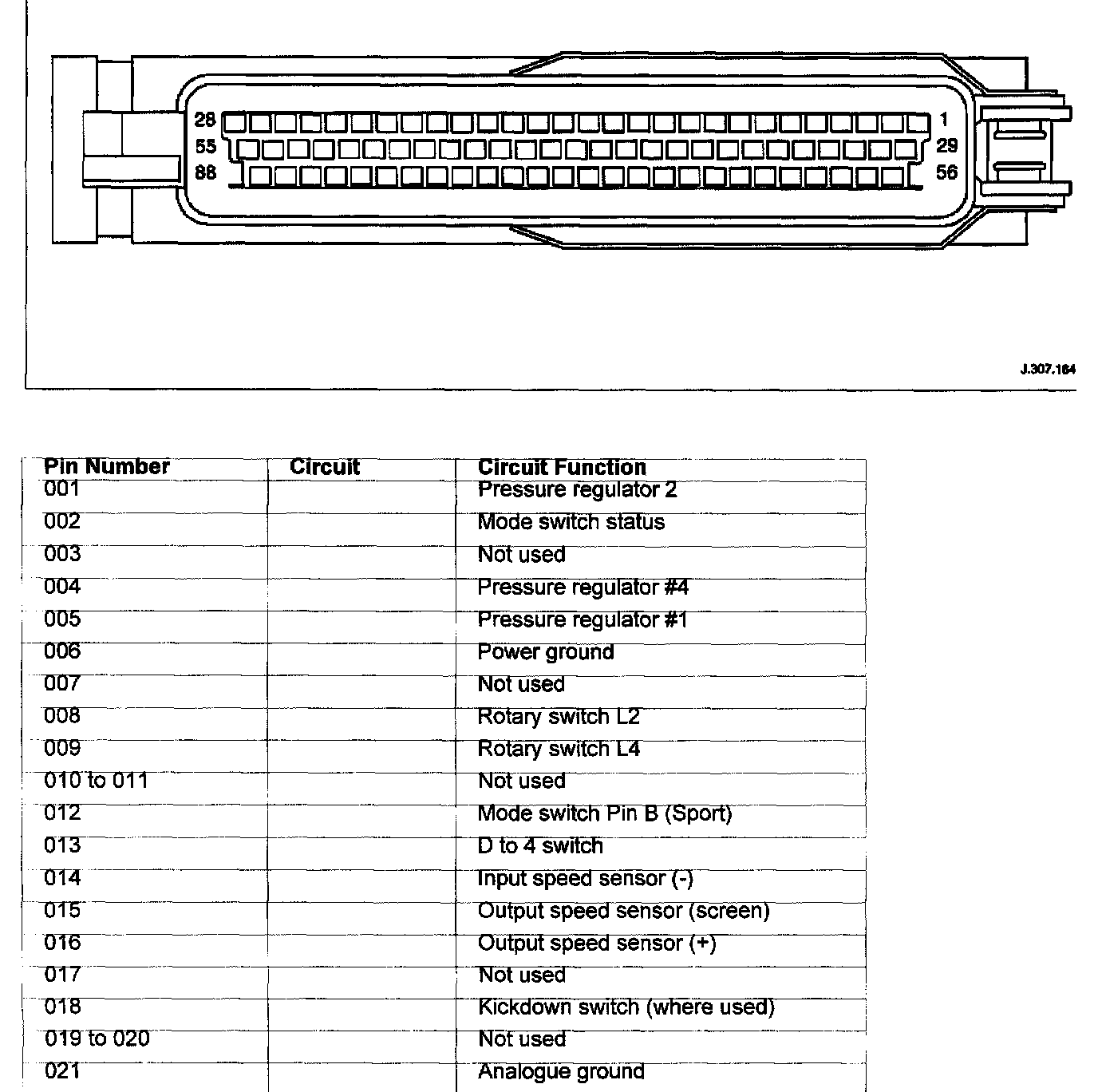

Connector Pin Identity Chart for EM061





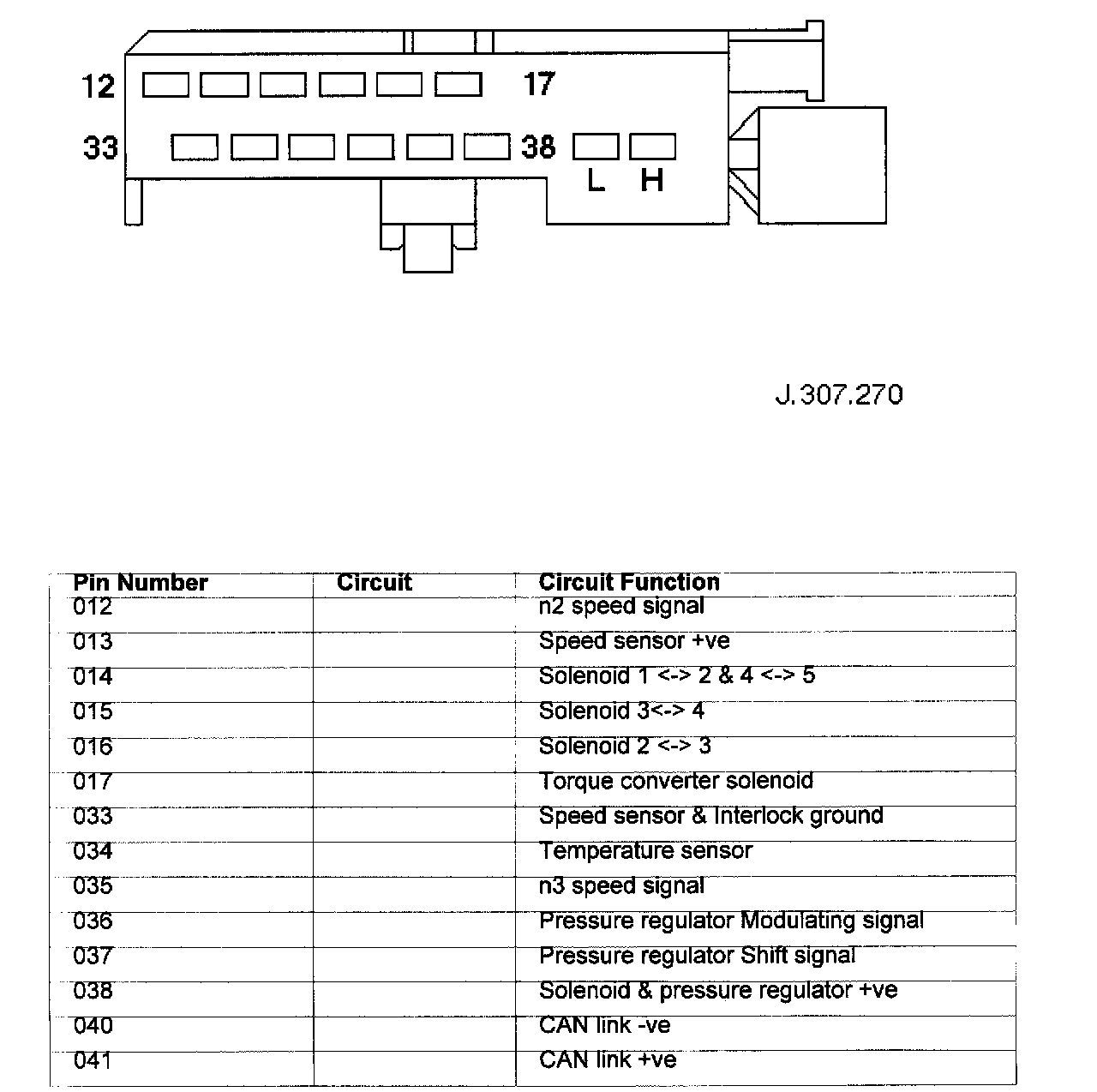

Connector Pin Identity Chart for EM062





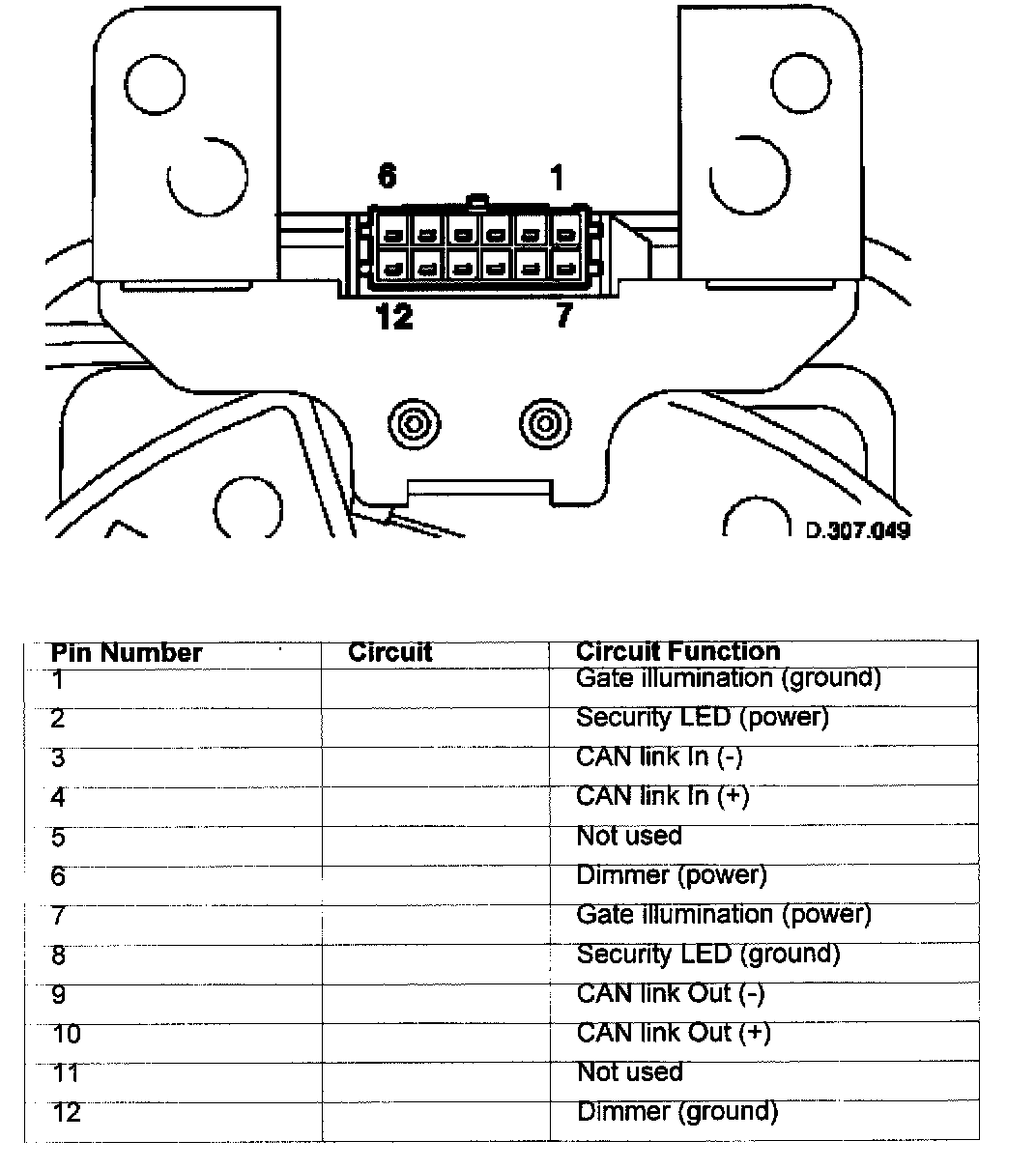

Connector Pin Identity Chart for CC008





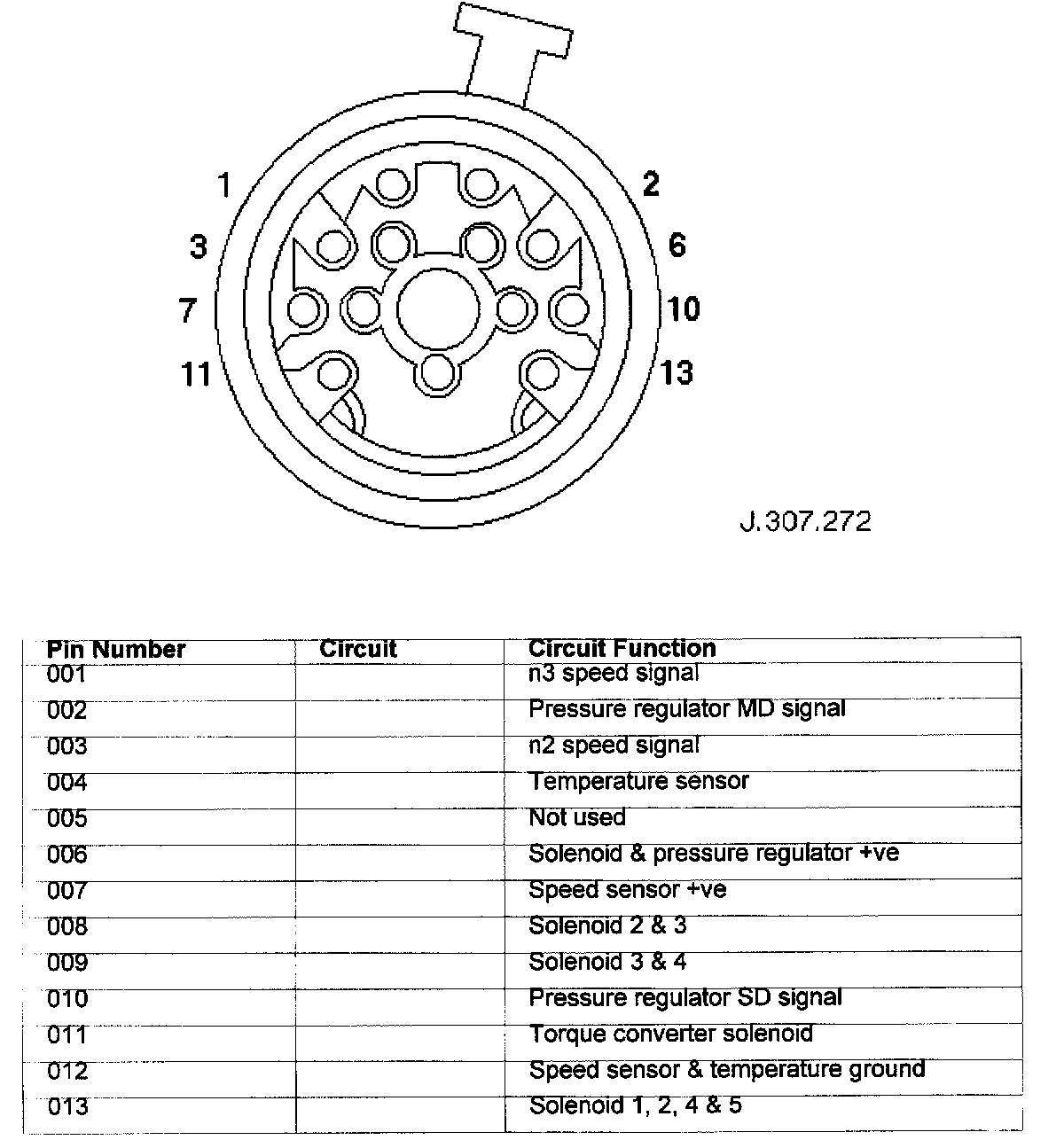

Connector Pin Identity Chart for GB001





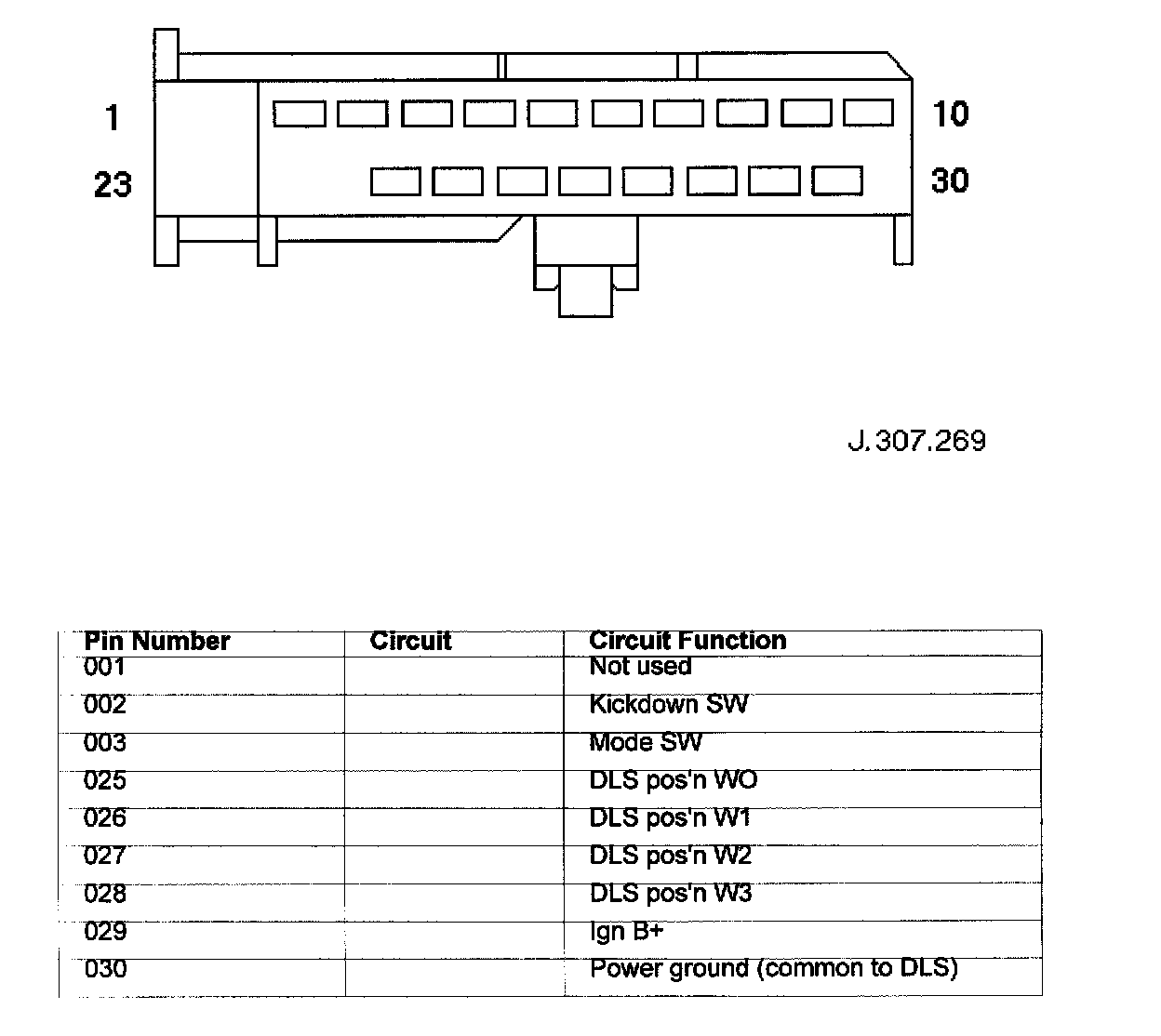

Connector Pin Identity Chart for EM044








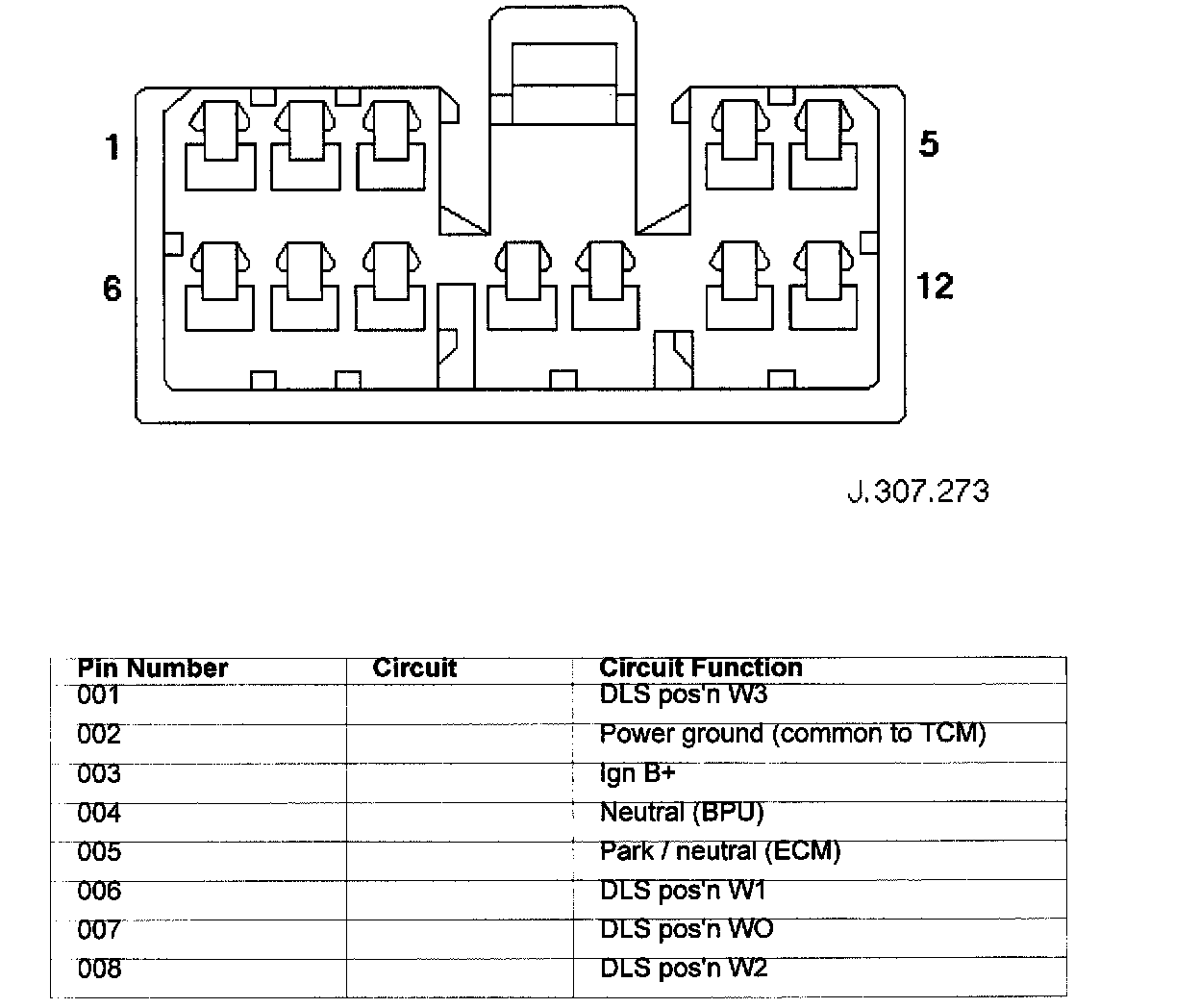

Connector Pin Identity Chart for EM007





Connector Pin Identity Chart for FC088

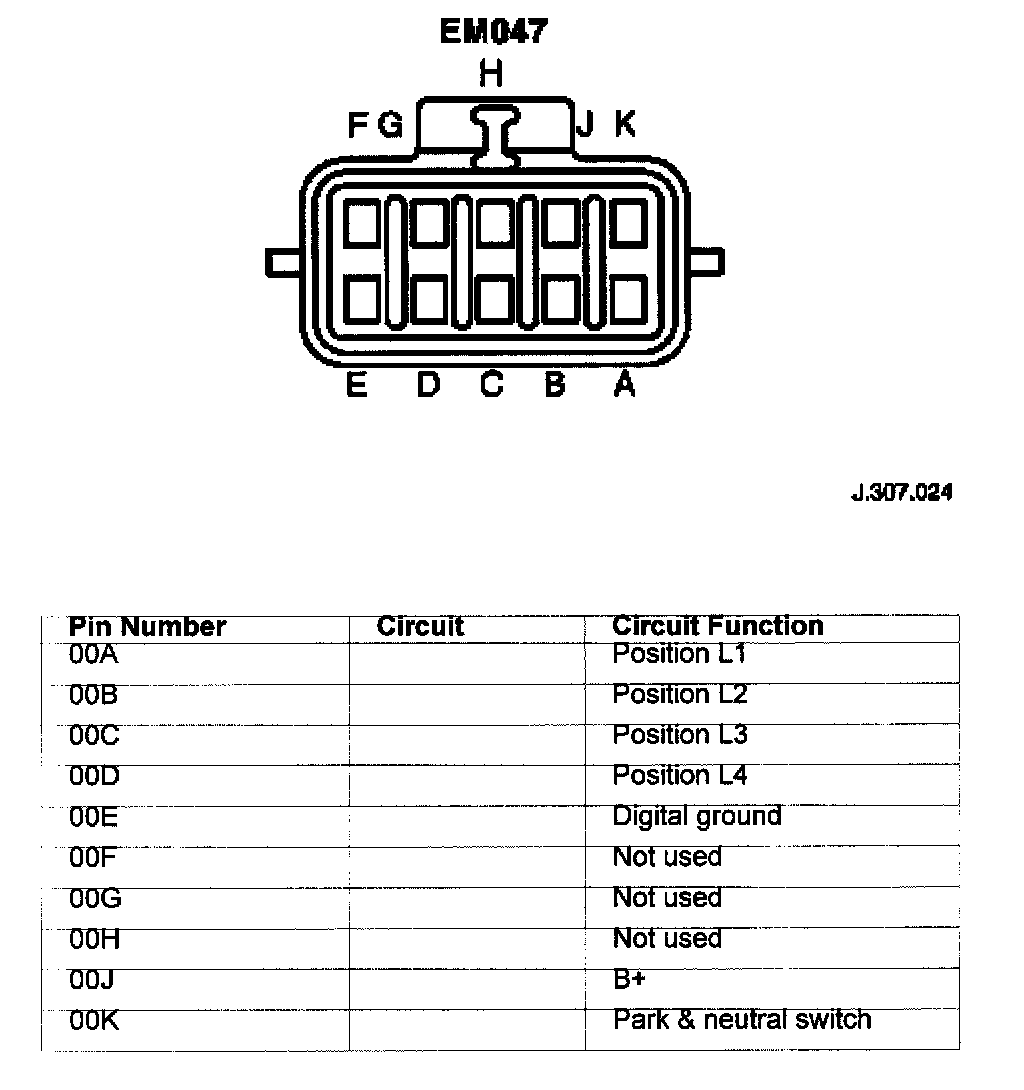

Connector Pin Identity Chart for EM047

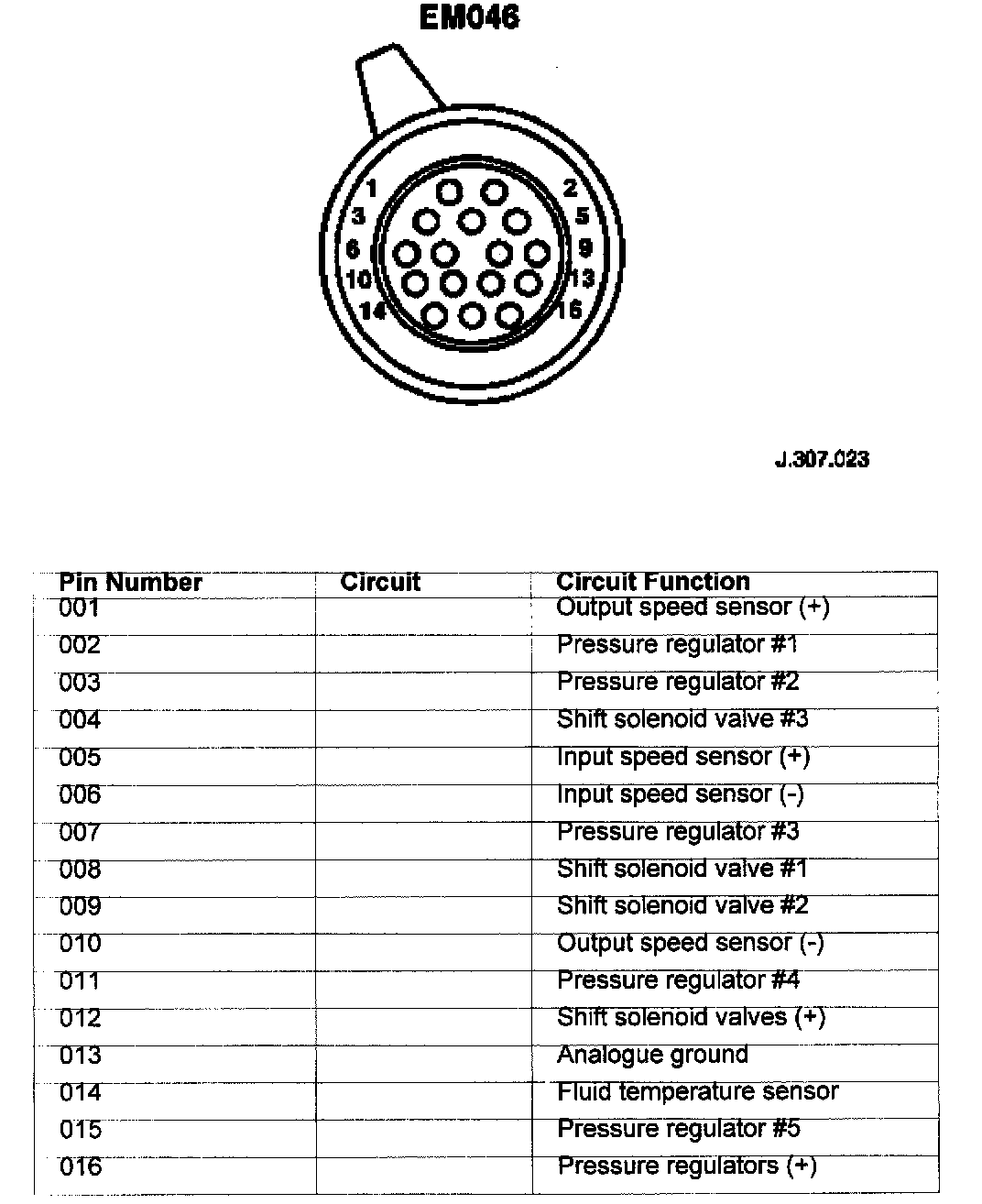

Connector Pin Identity Chart for EM046
