CAN Messages By Node

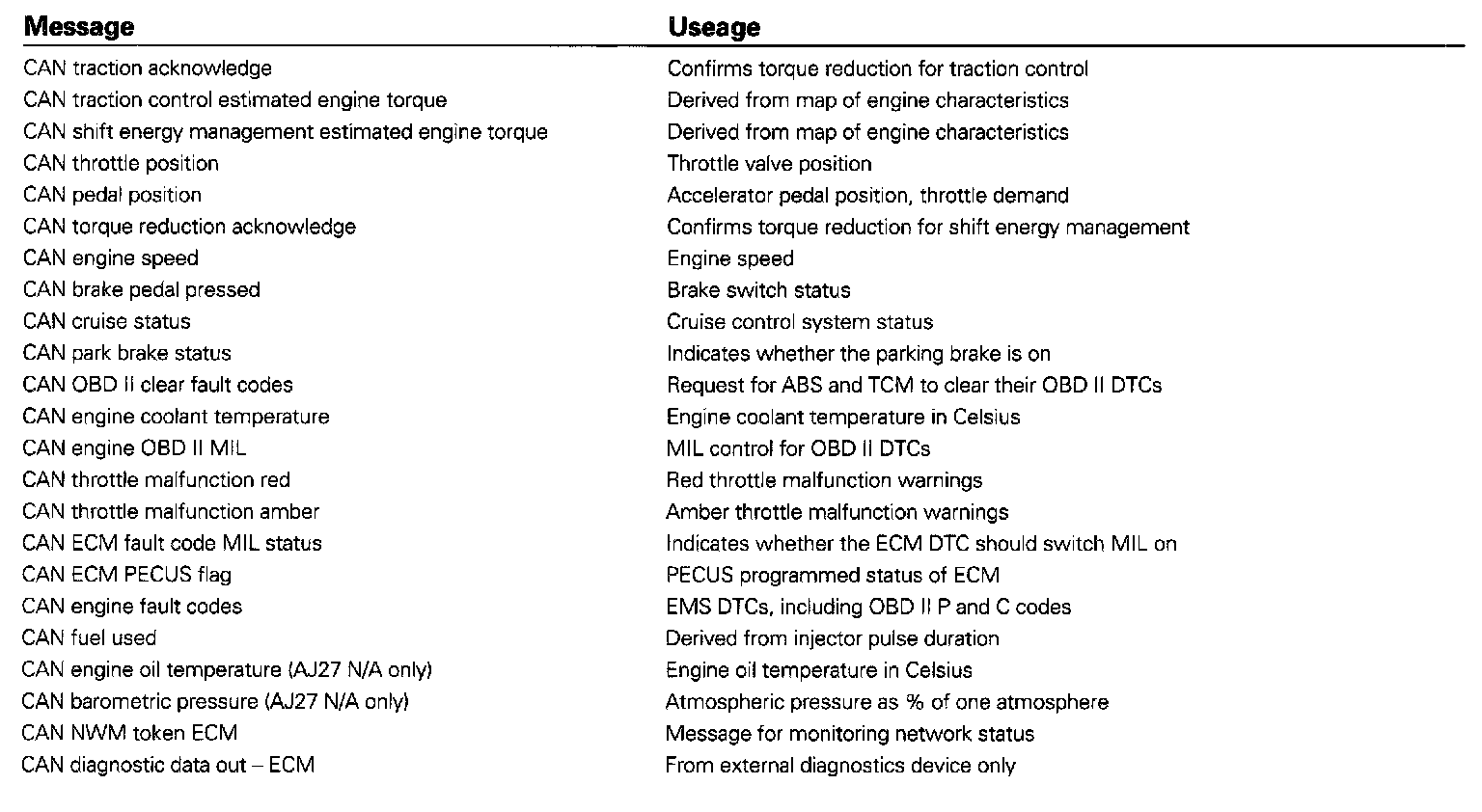

NODE: Engine Control Module
Transmitted by ECM







NODE: Engine Control Module
Received by ECM







NODE: Transmission Control Module
Transmitted by TCM







NODE: Transmission Control Module
Received by TCM

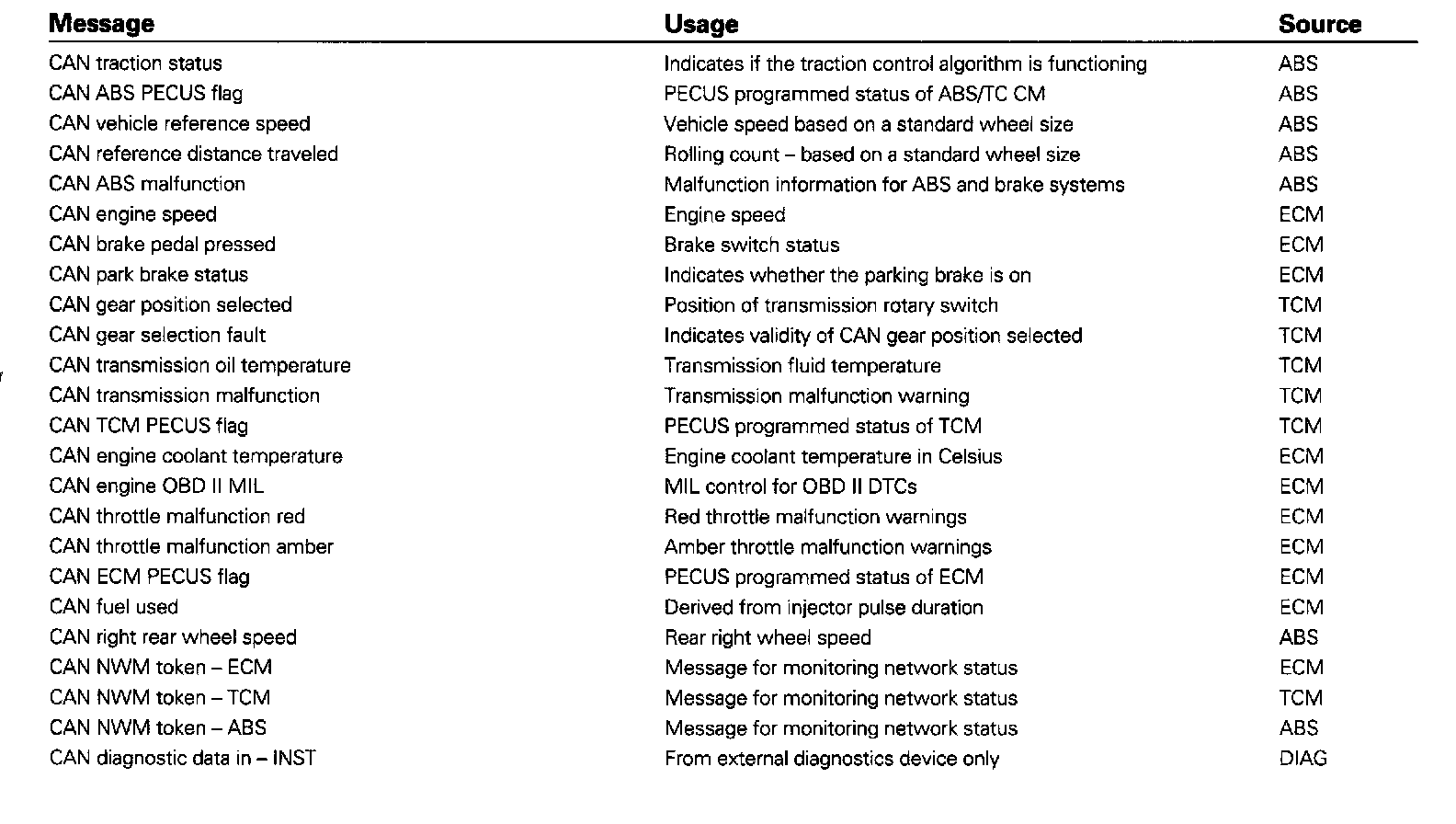

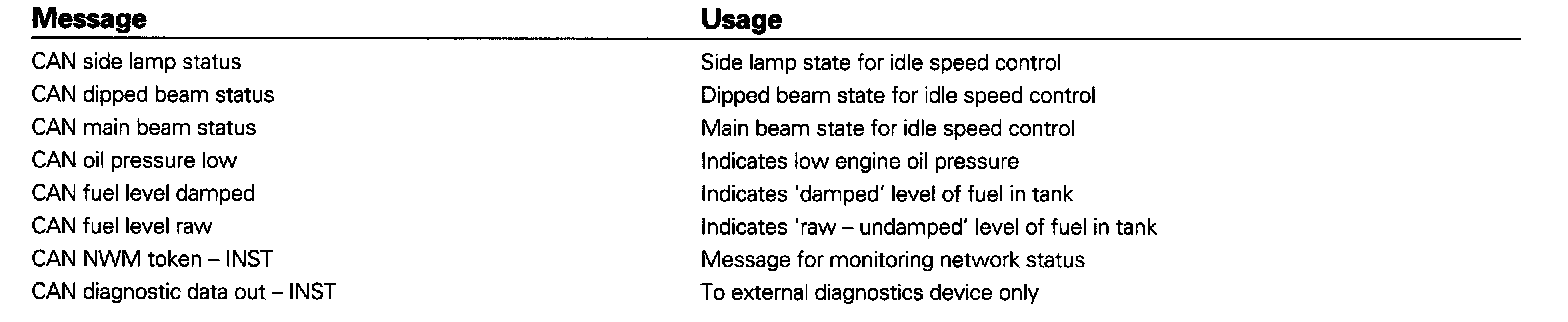

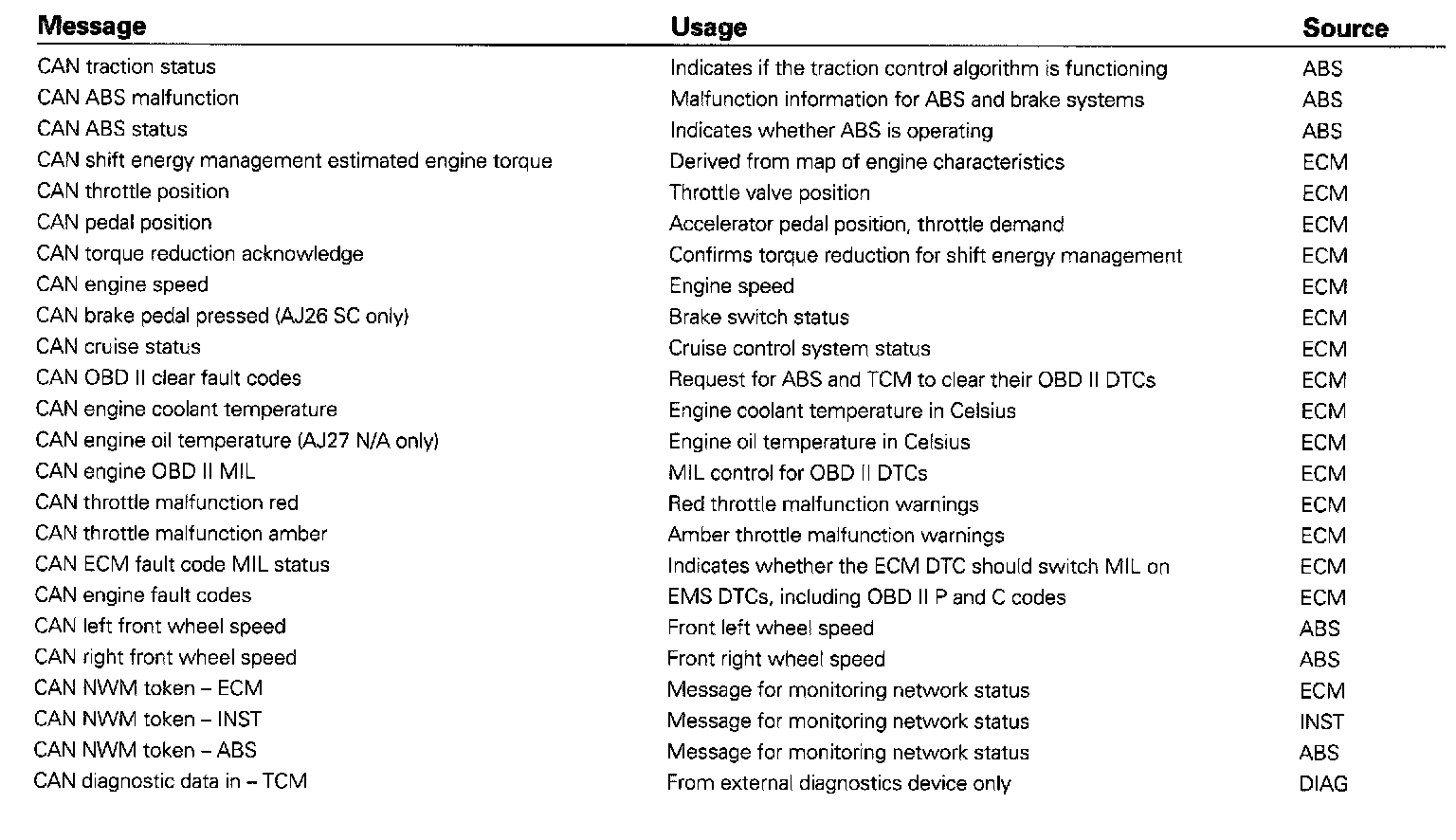

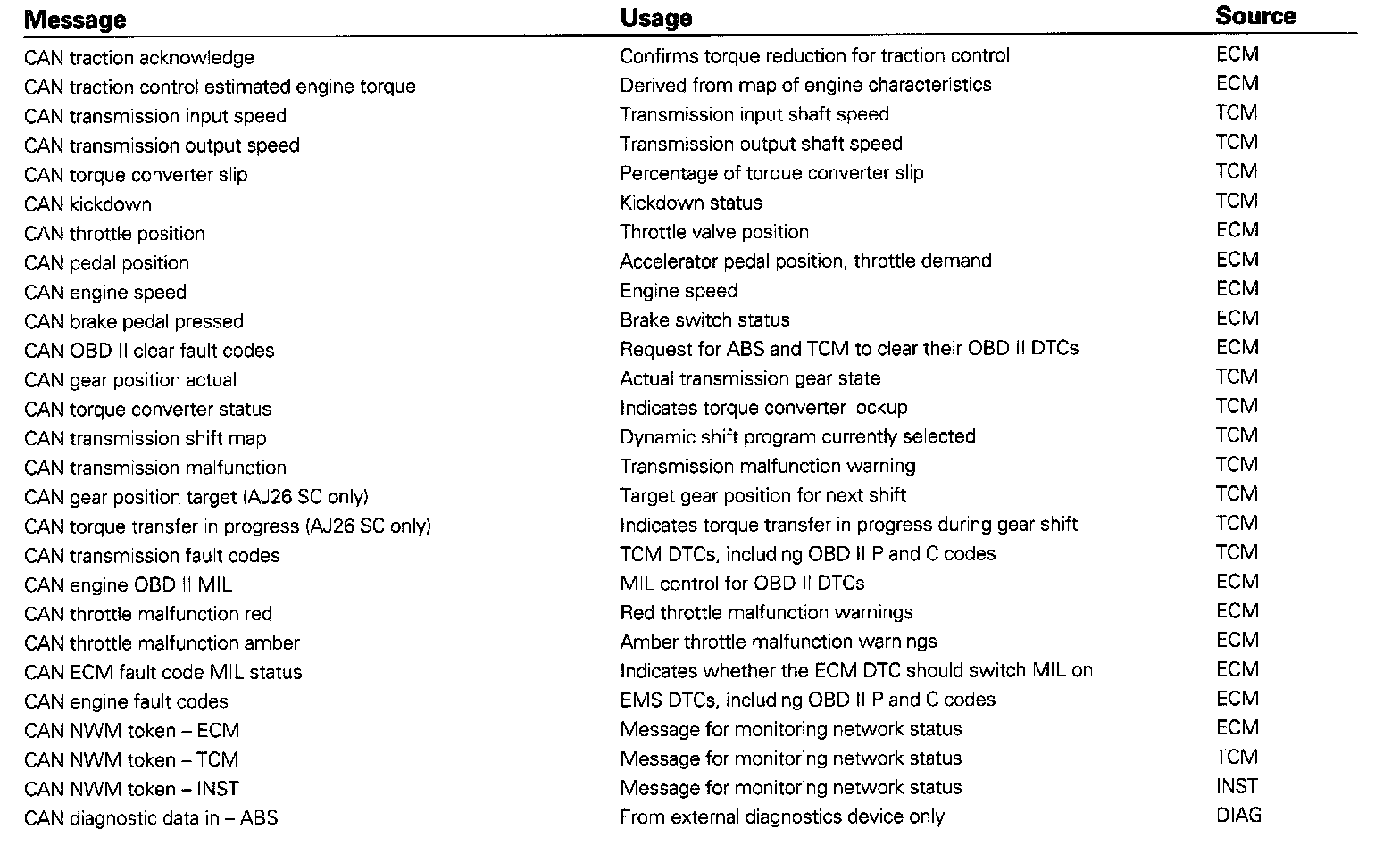

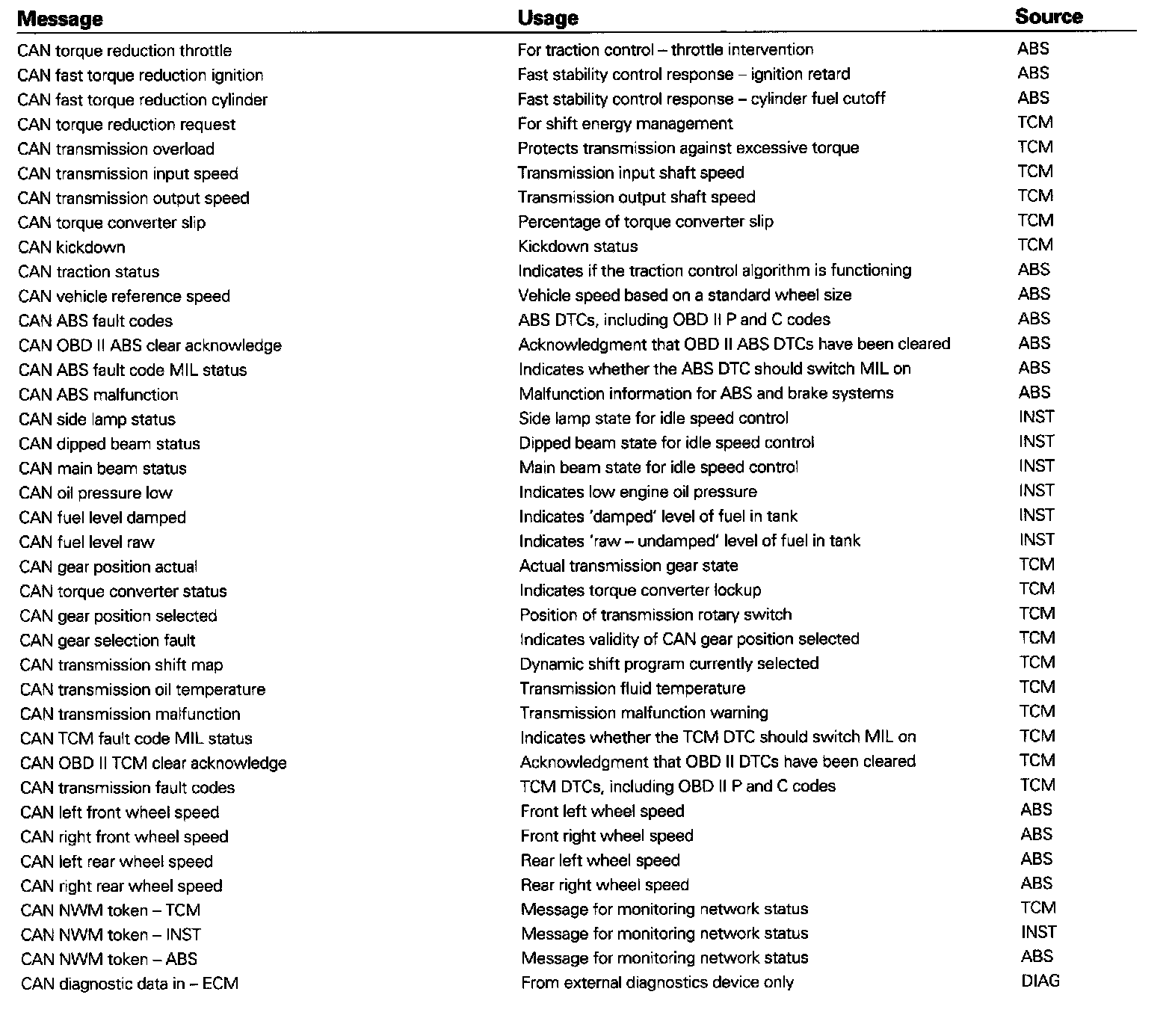

NODE: Instrument Pack
Transmitted by INST







NODE: Instrument Pack
Received by INST

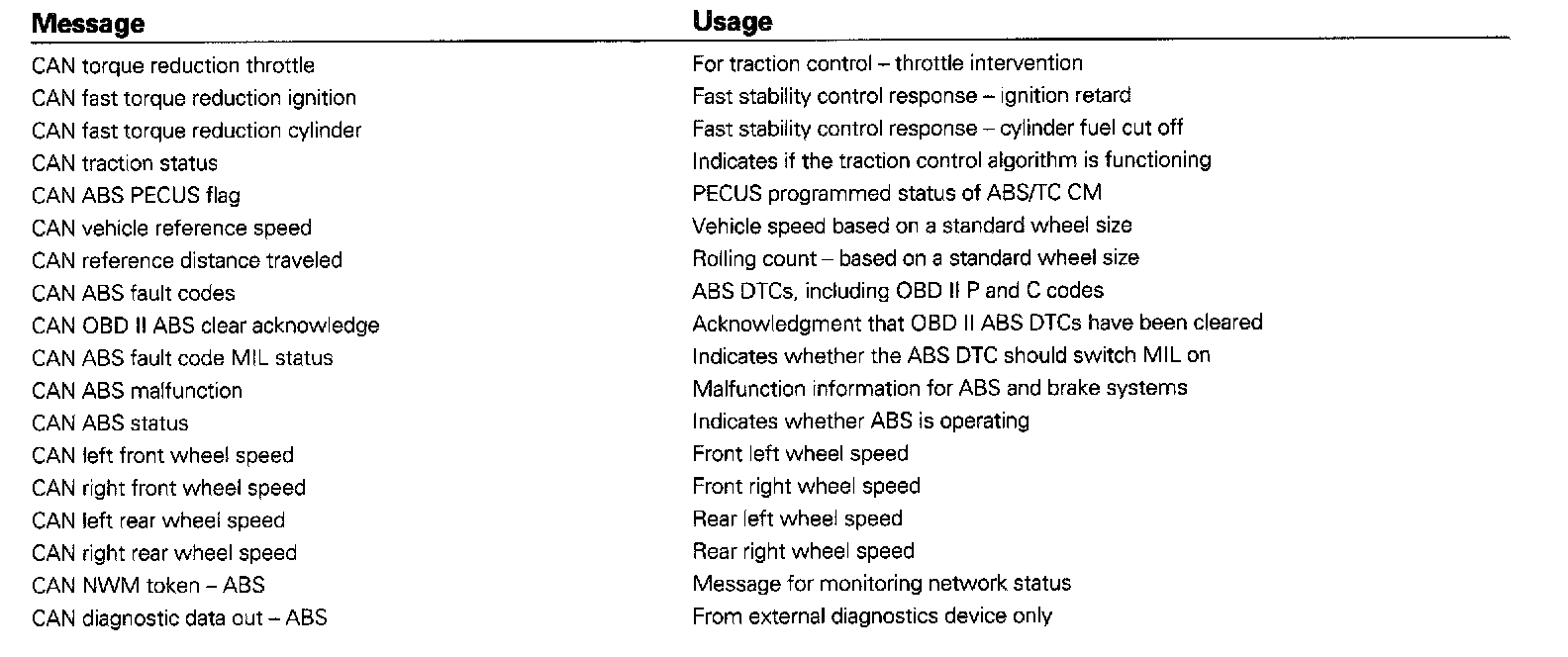

NODE: ABS/Traction Control Control Module
Transmitted by ABS/TC CM







NODE: ABS/Traction Control Control Module
Received by ABS/TC CM

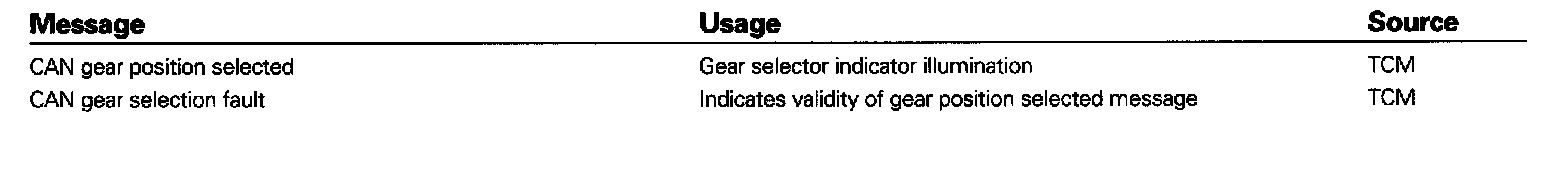

NODE: Gear Selector Module (listen Only)
Received by Gear Selector Module
