Dimmer Controlled Lighting

�=%:

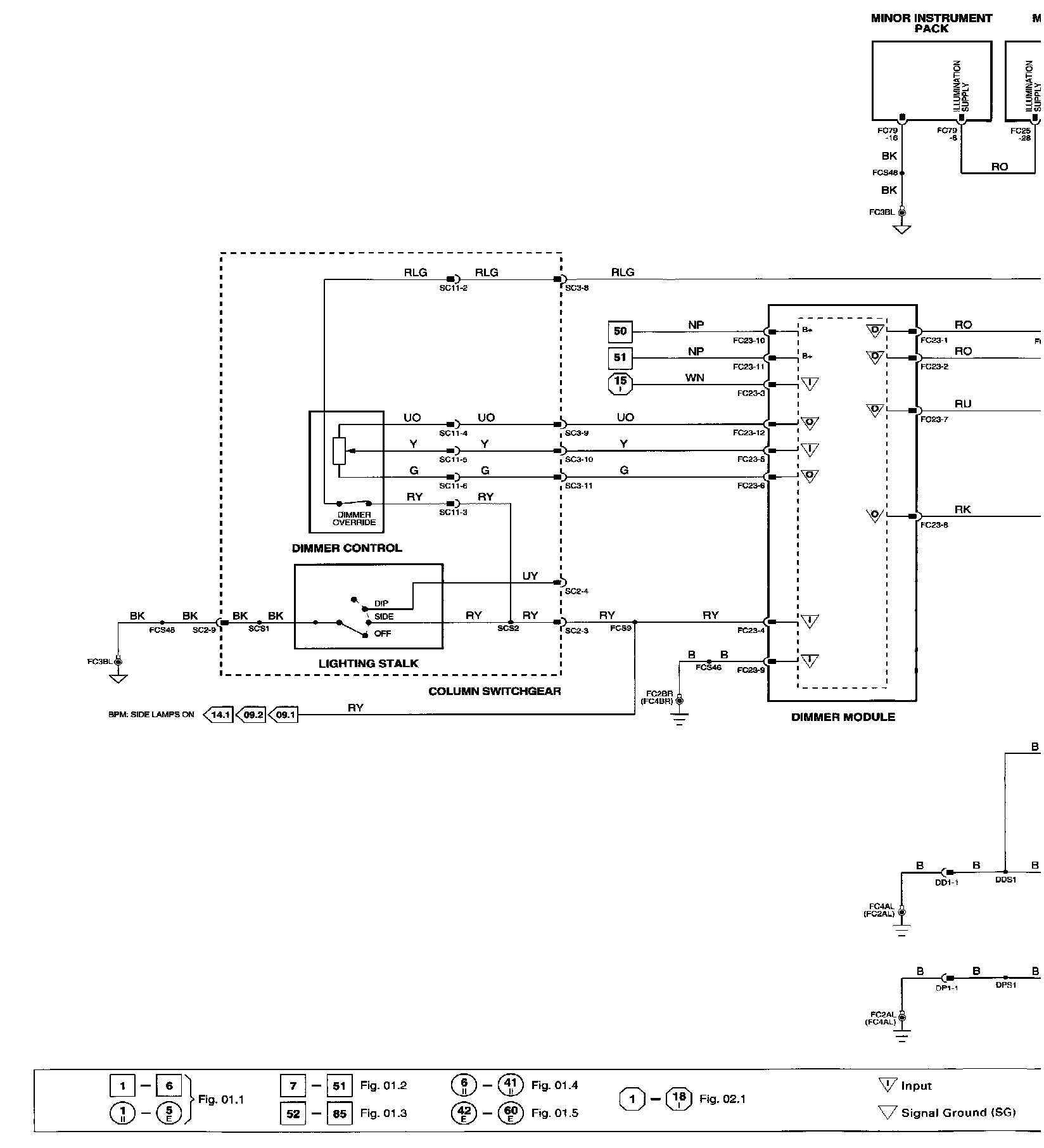

Wiring Diagram


Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

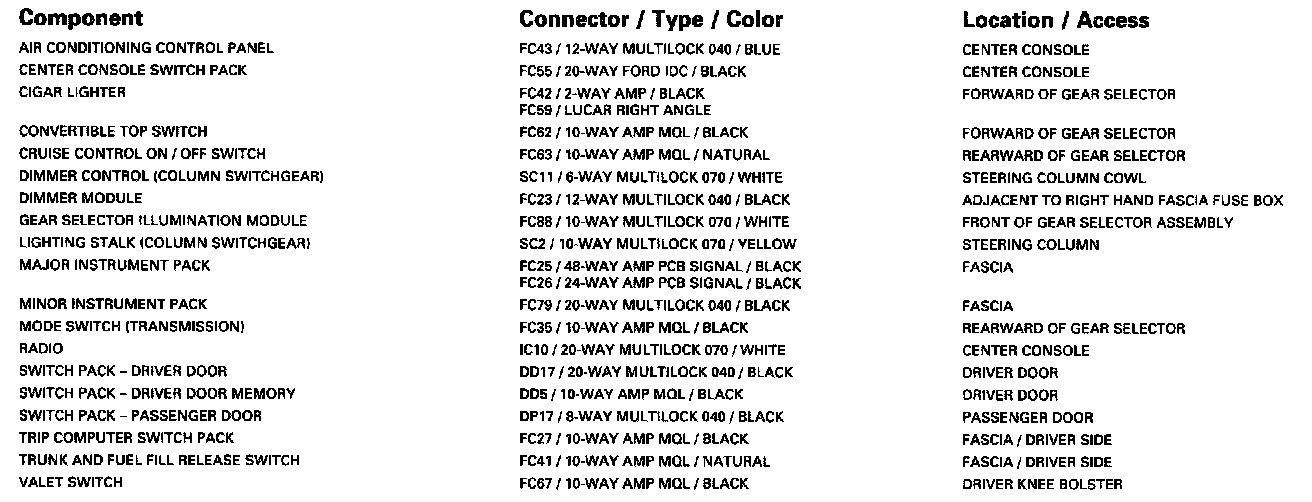

Component Information

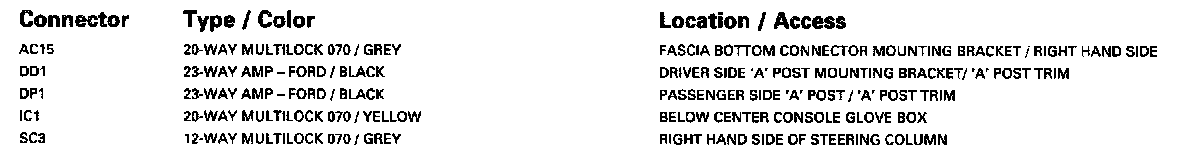

Harness to Harness Connector Information

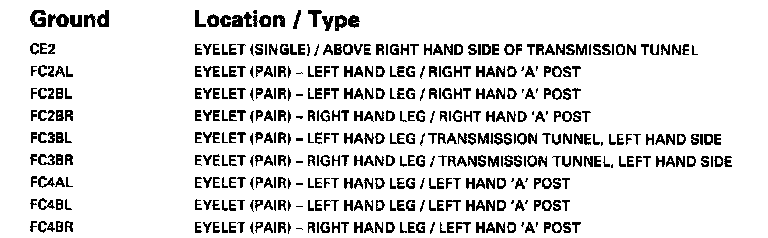

Ground Information

Q�=%:

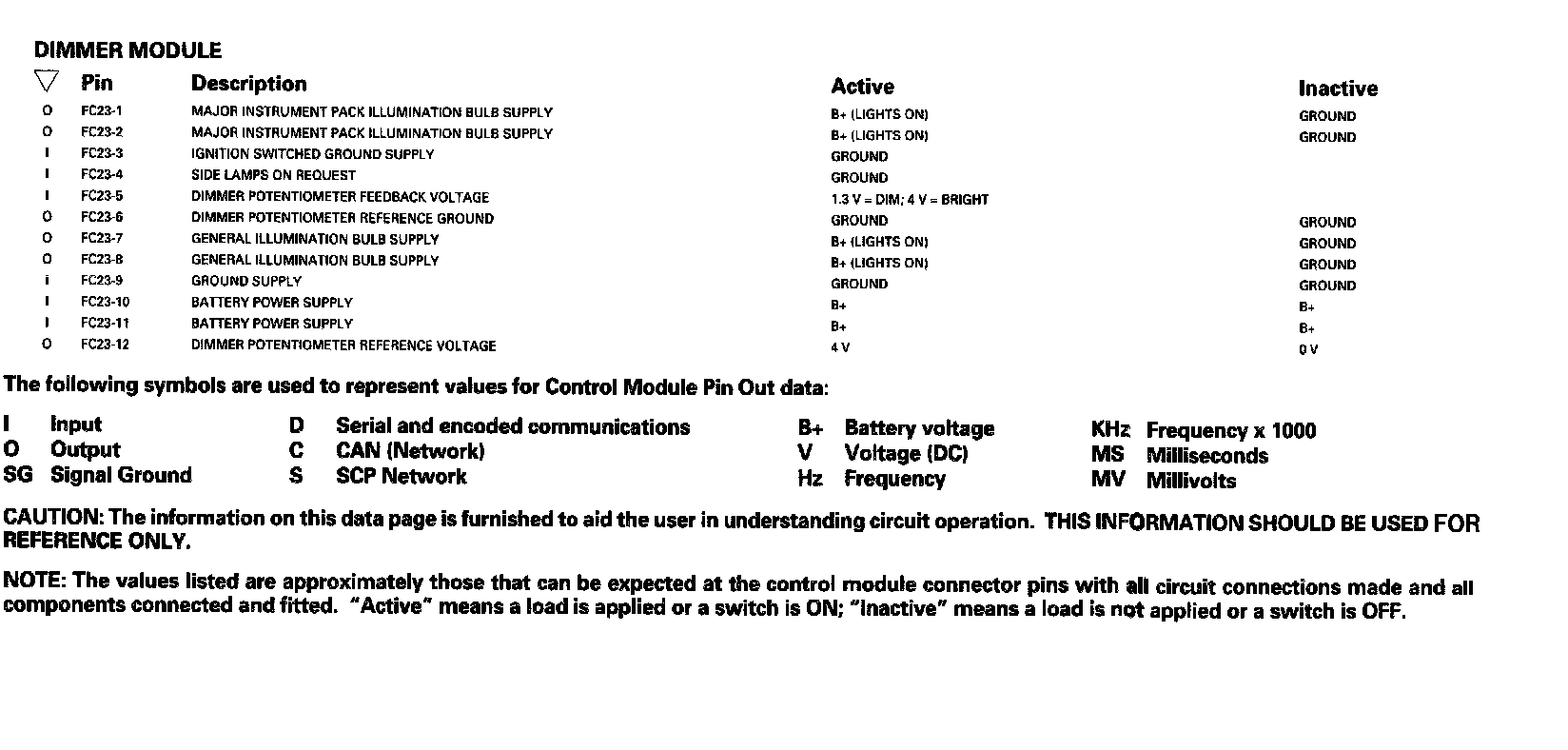

Control Module Pin Out Information
