Ignition Switched Ground Distribution

<+�:

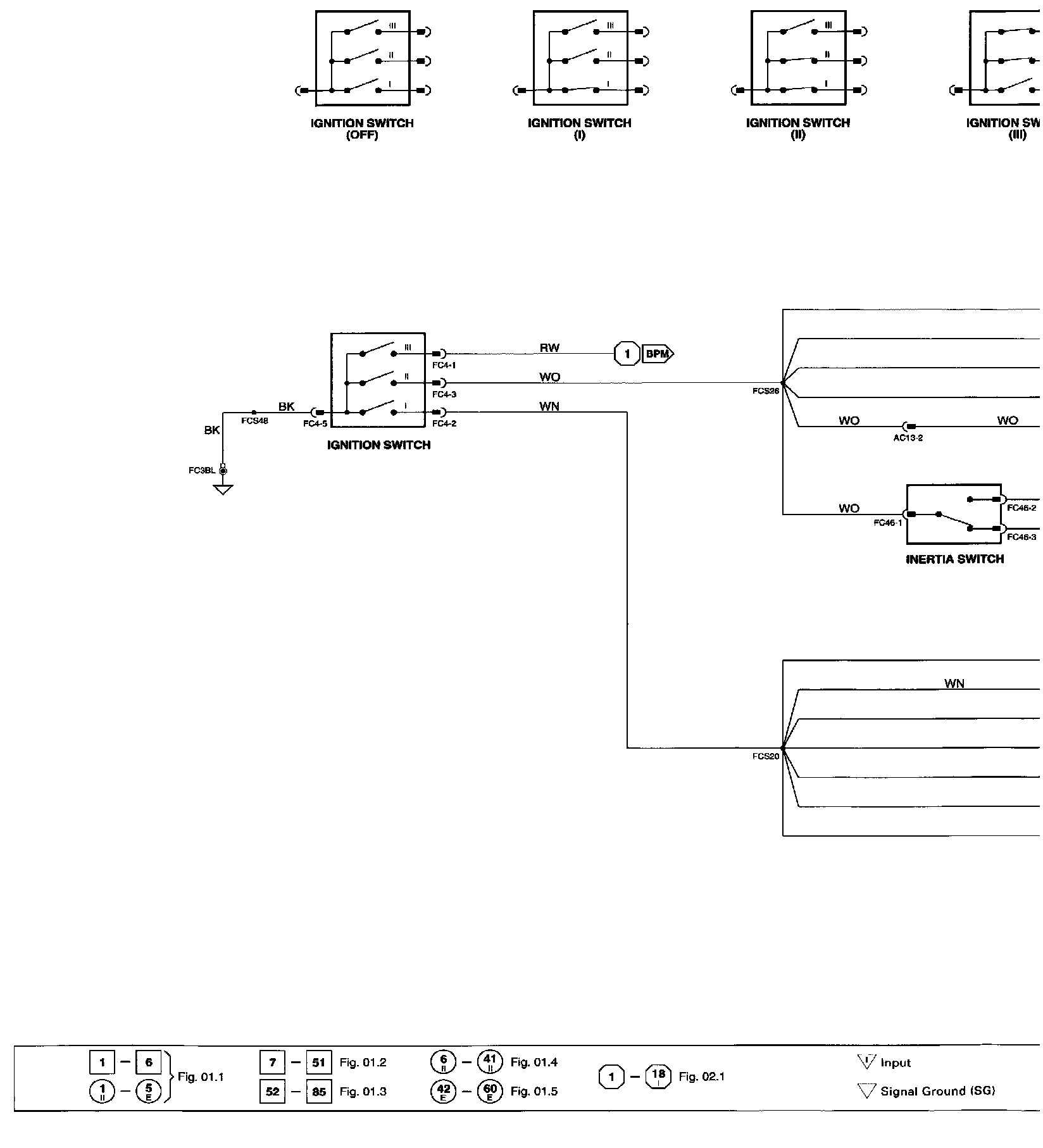

Wiring Diagram


Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams







Component Information

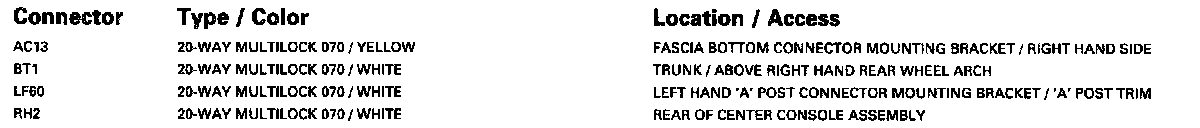

Harness to Harness Connector Information







Ground Information
