Auxiliary Power Outlet

��:

ACCESSORY CONNECTORS

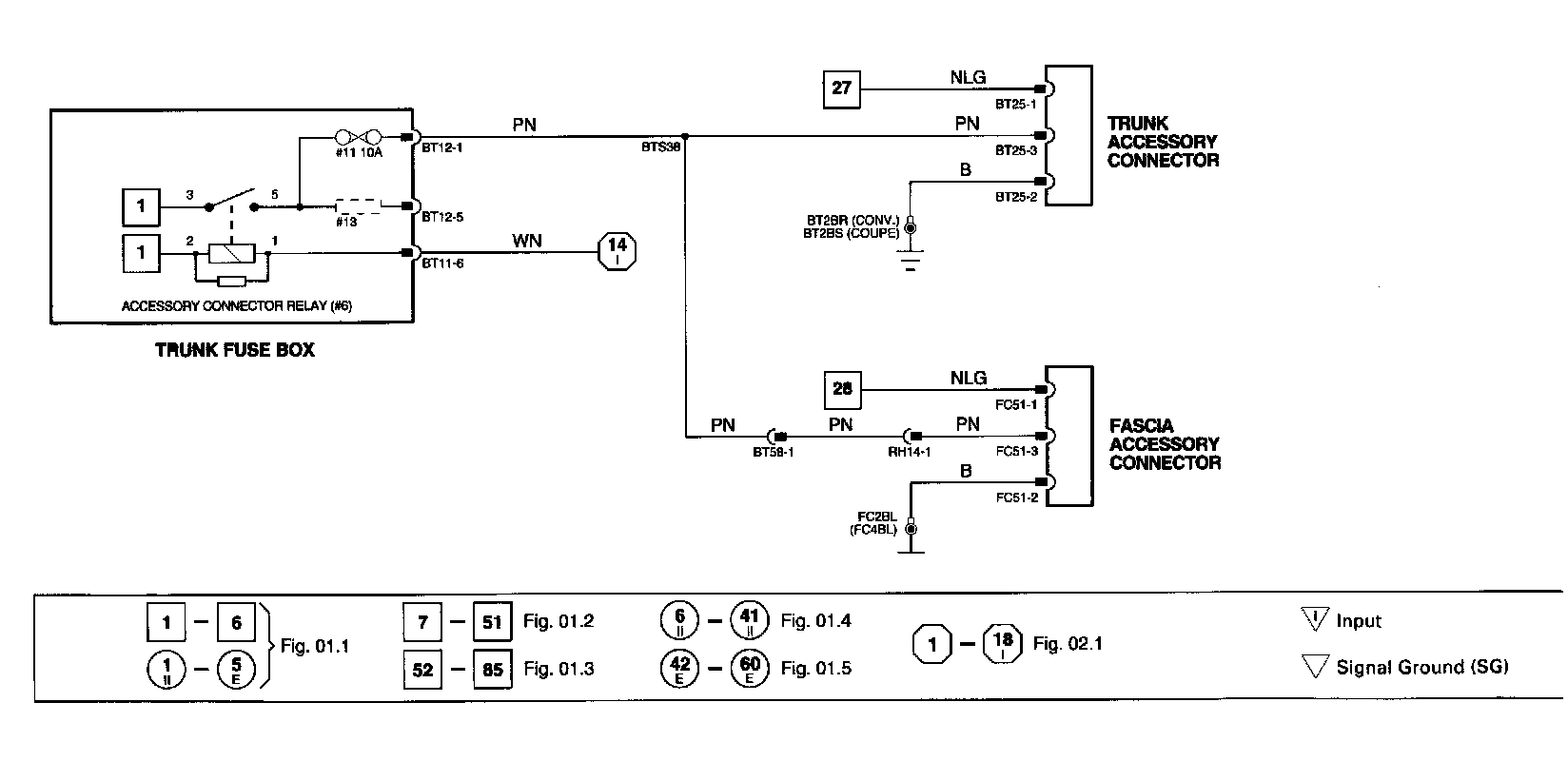

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

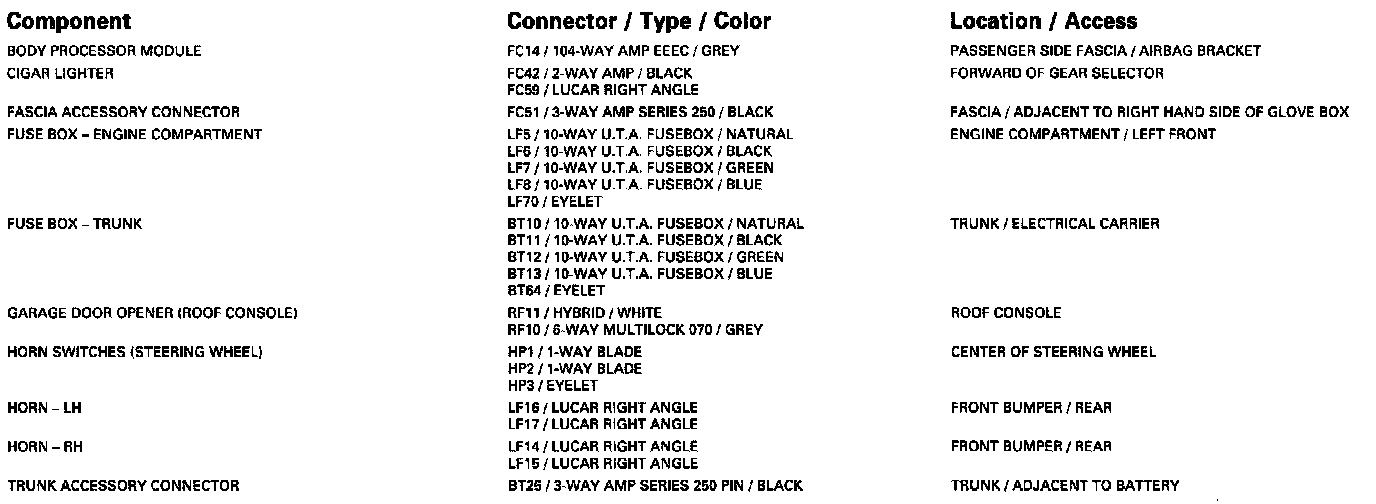

Component Information






Relay Information

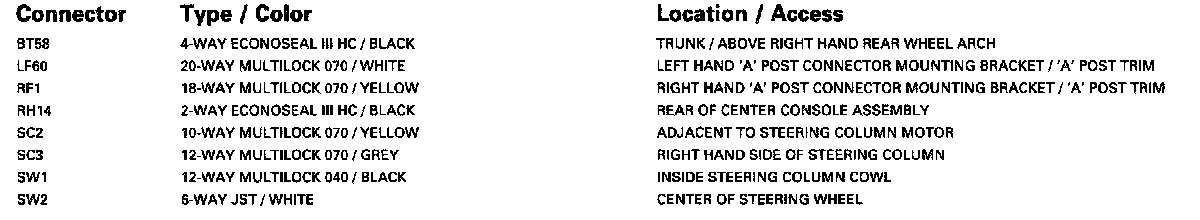

Harness to Harness Connector Information







Ground Information

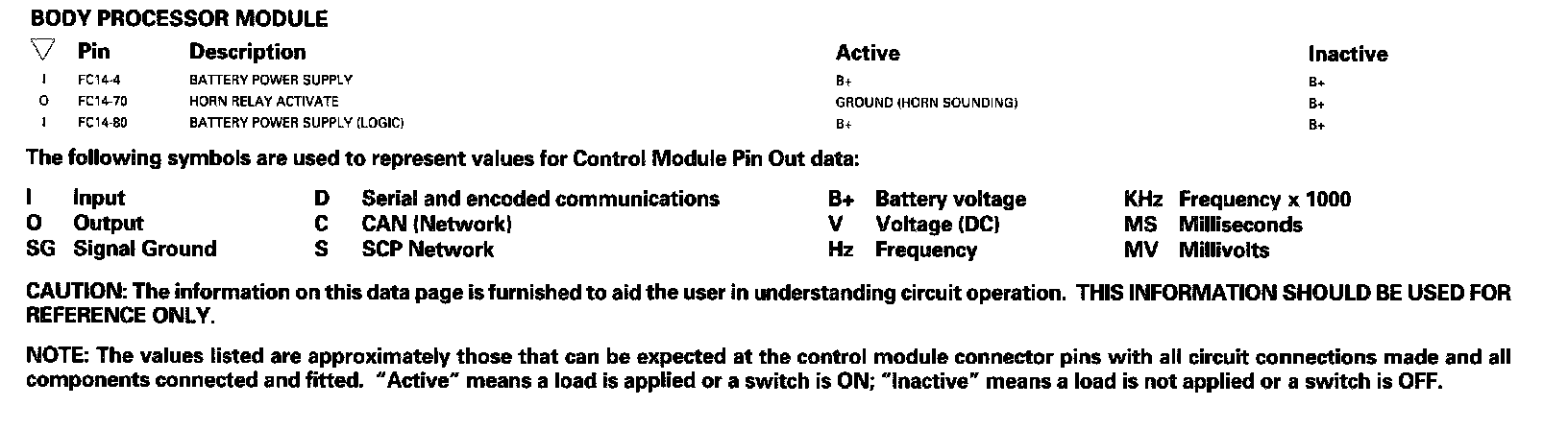

Control Module Pin Out Information
