Heating and Air Conditioning

Connector Pins Identification

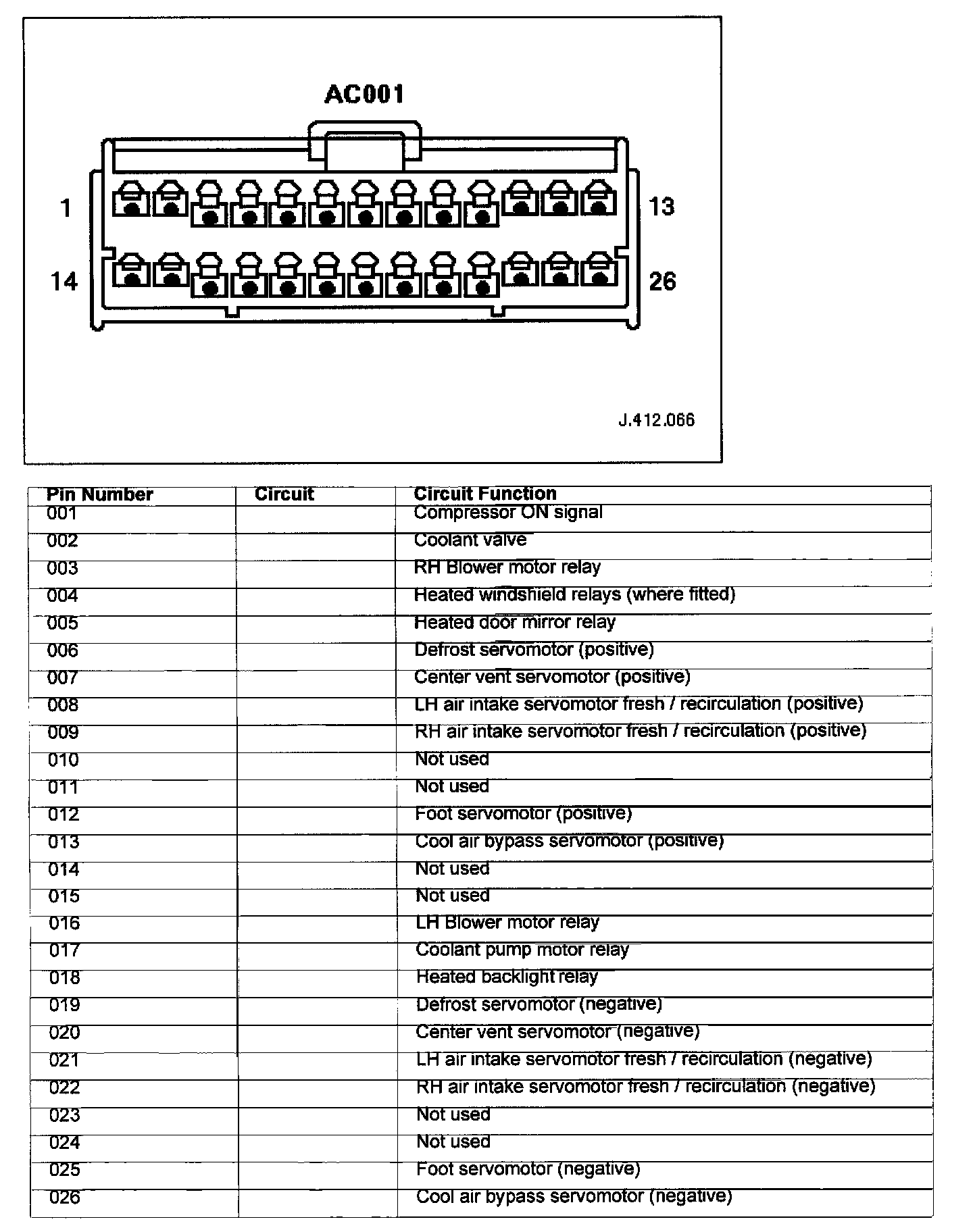

Connector Pin Identity Chart For AC001:

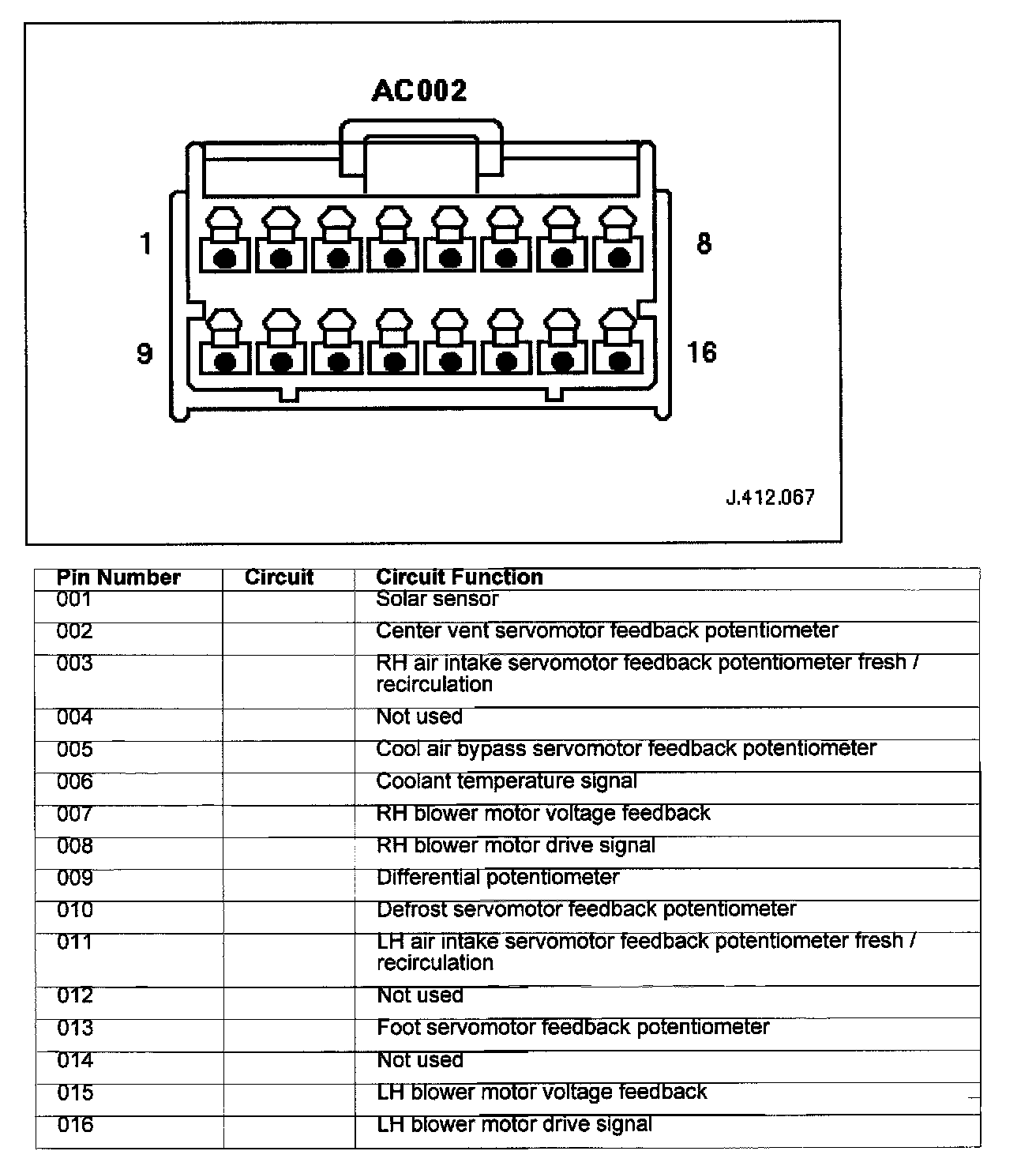

Connector Pin Identity Chart For AC002:

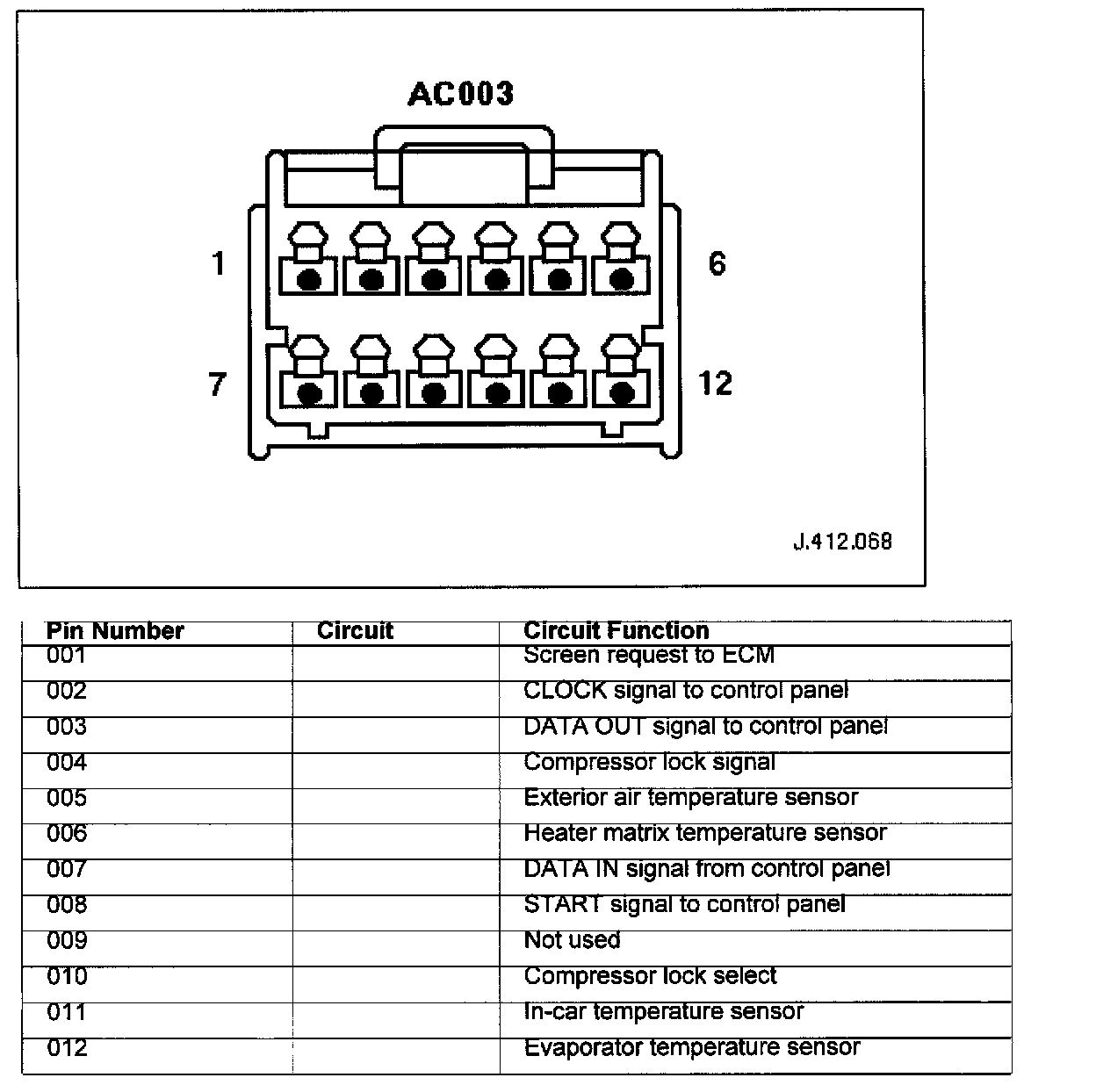

Connector Pin Identity Chart For AC003:

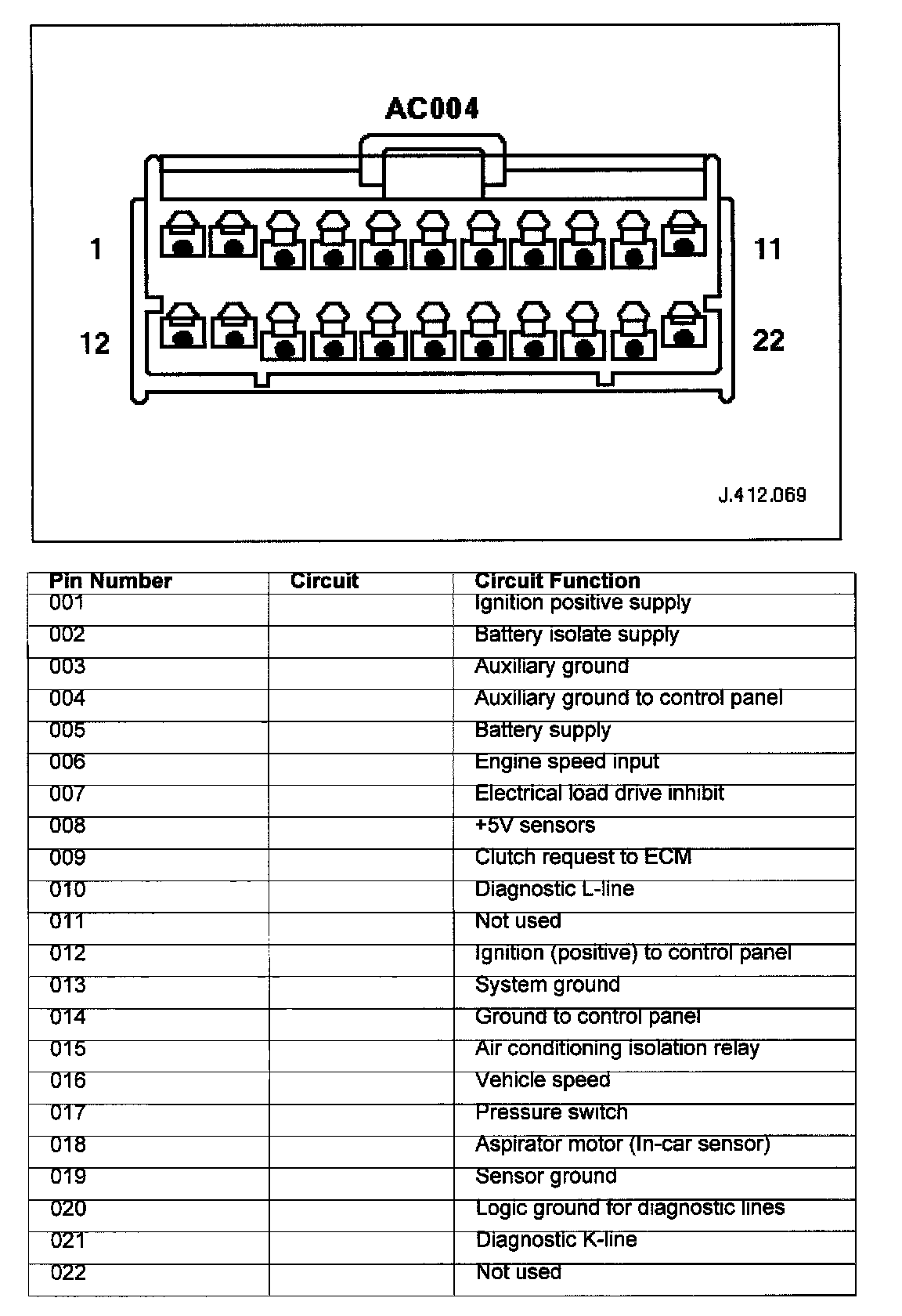

Connector Pin Identity Chart For AC004:

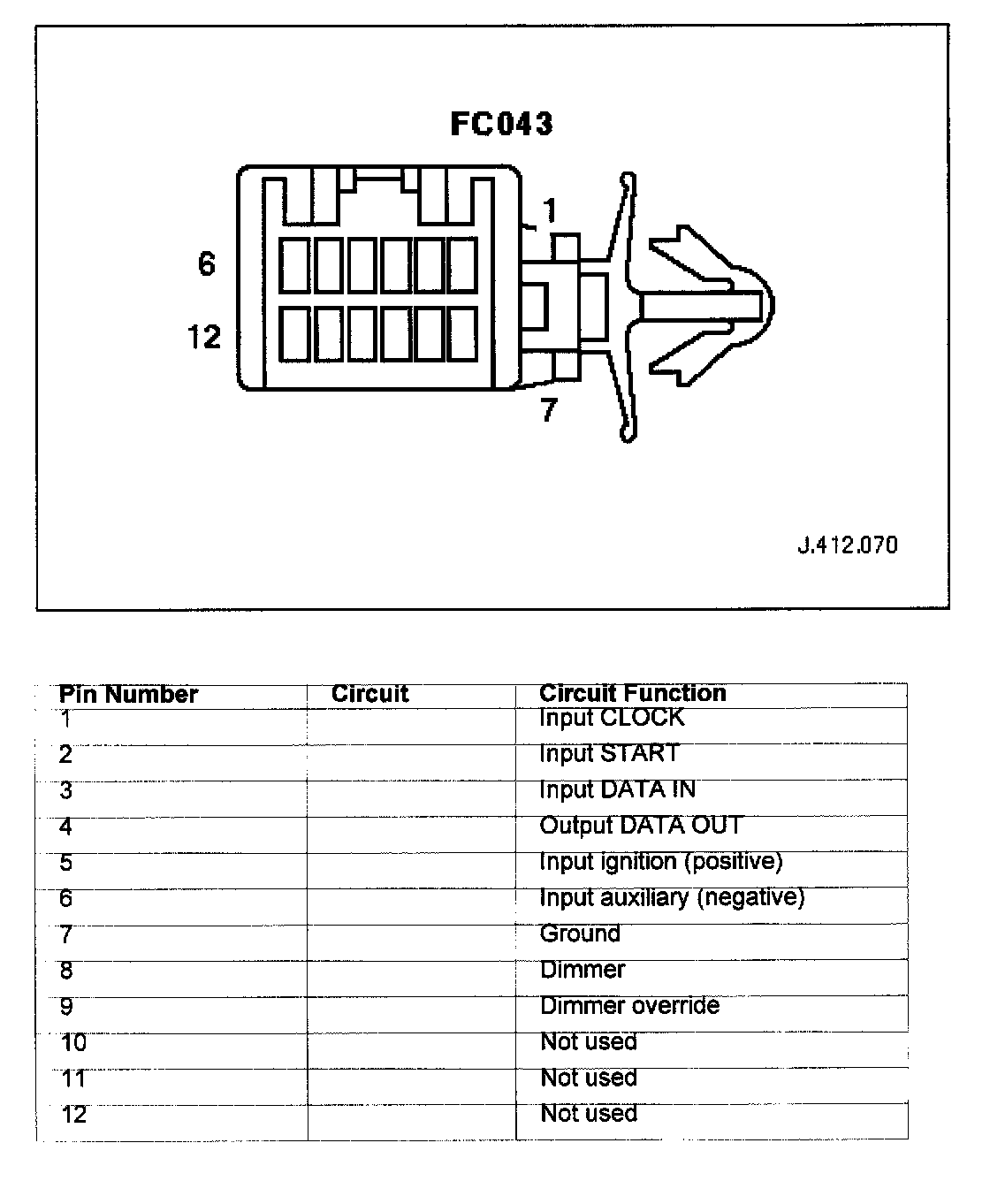

Connector Pin Identity Chart For FC043:

Control Panel Communication
The control panel provides operator interface with the climate control system.
Control panel operation is described in detail in the D section.

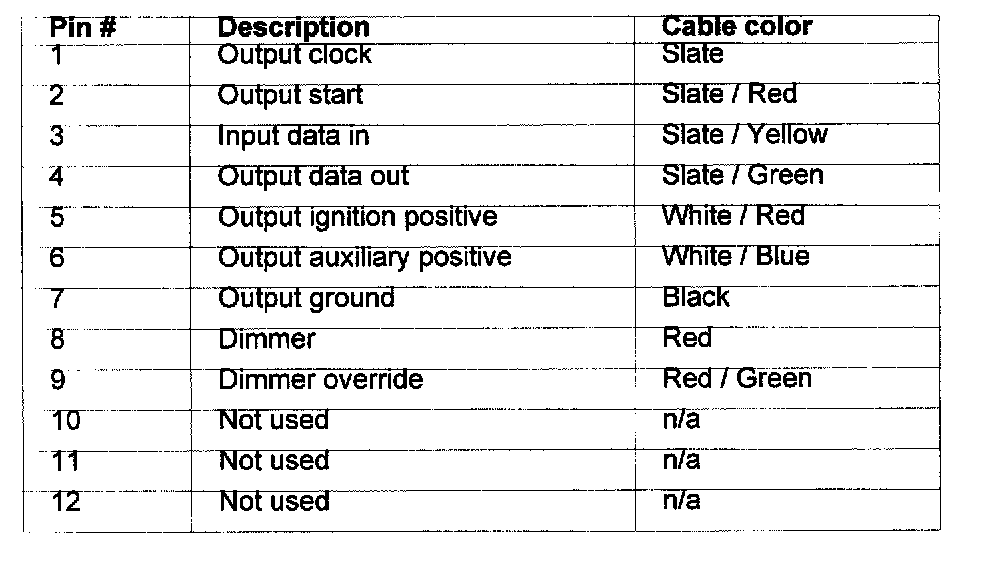

Control Panel Inputs / Outputs:

Identification:

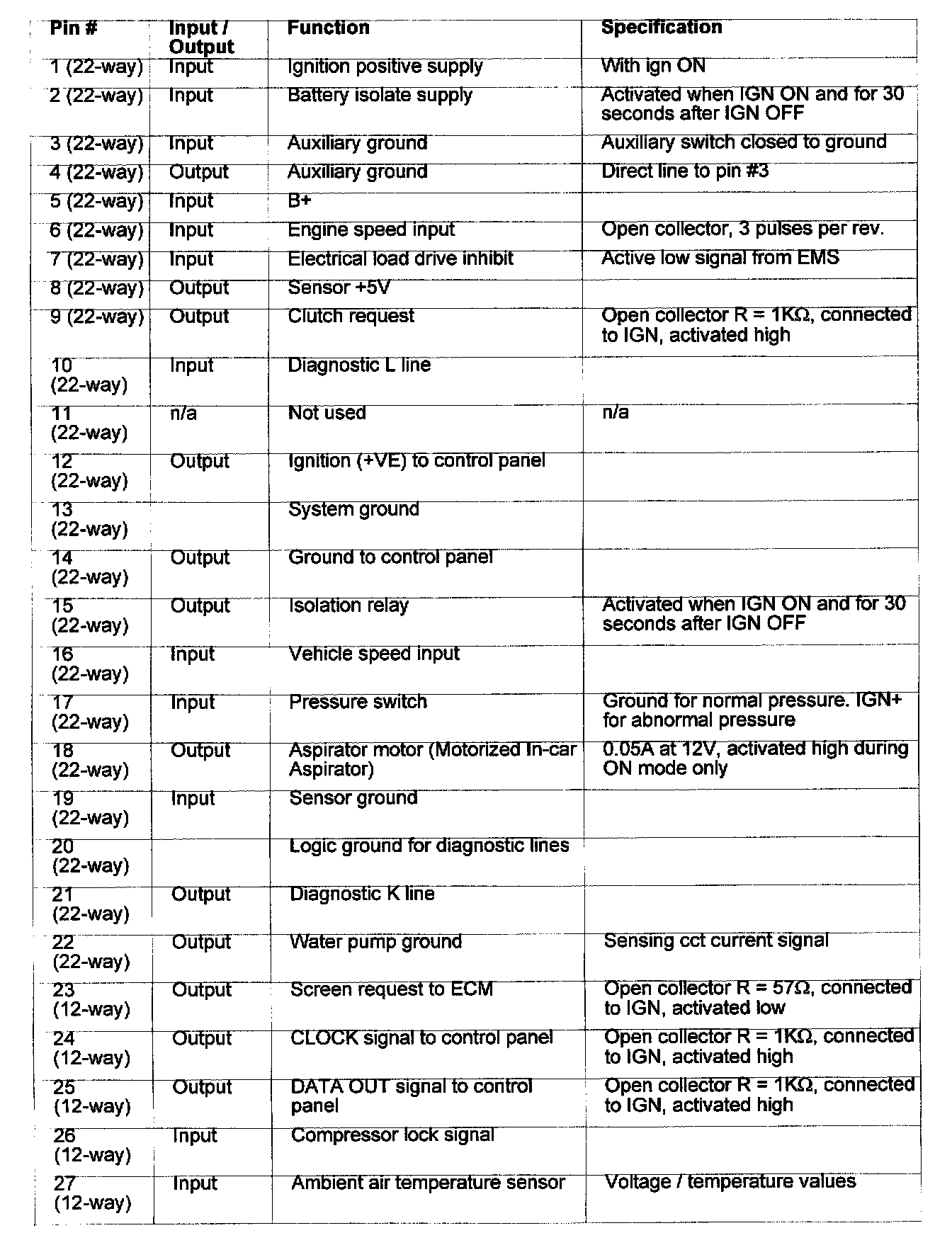

Pin 1(22-way) - 27(12-way):

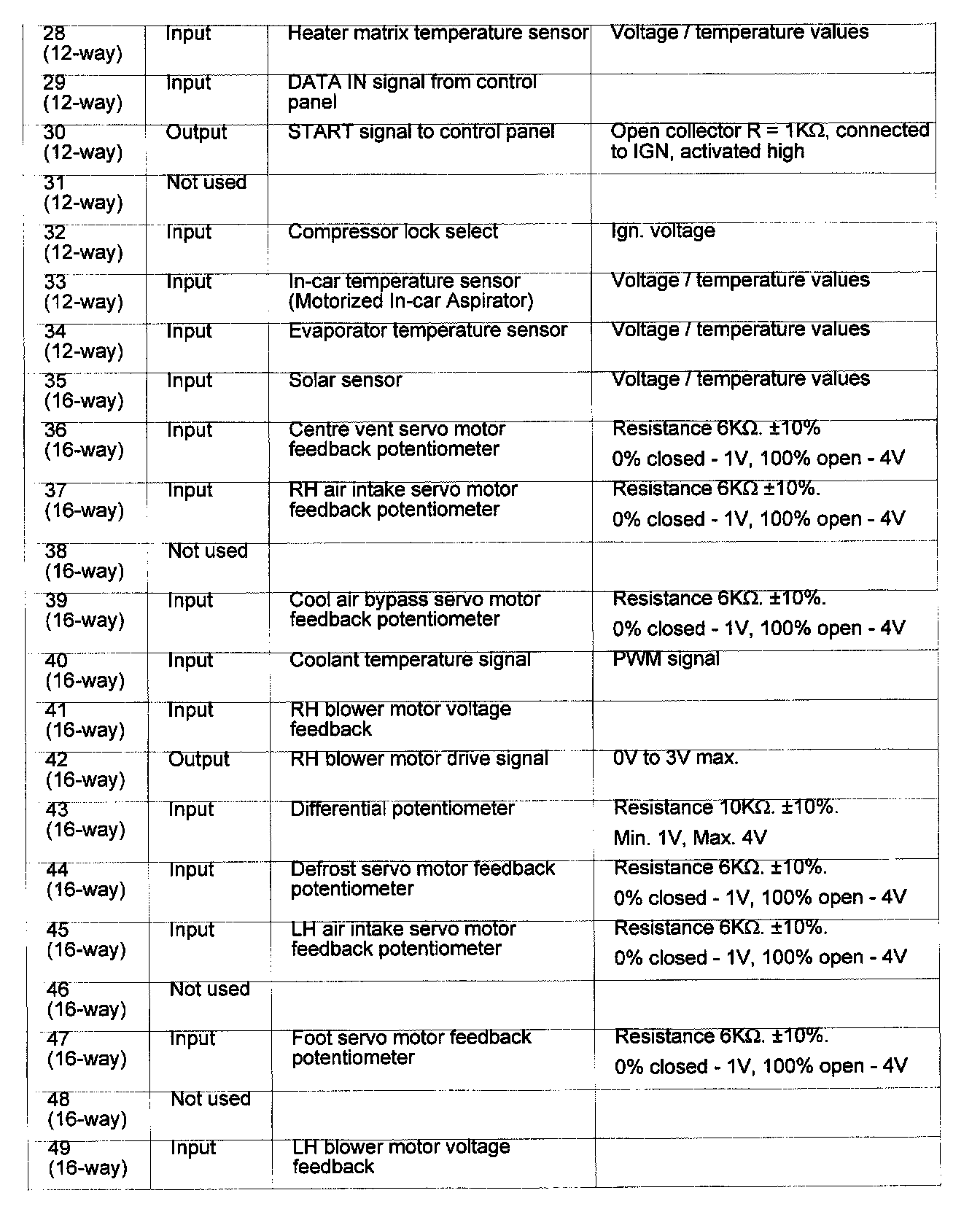

Pin 28(12-way) - 49(16-way):

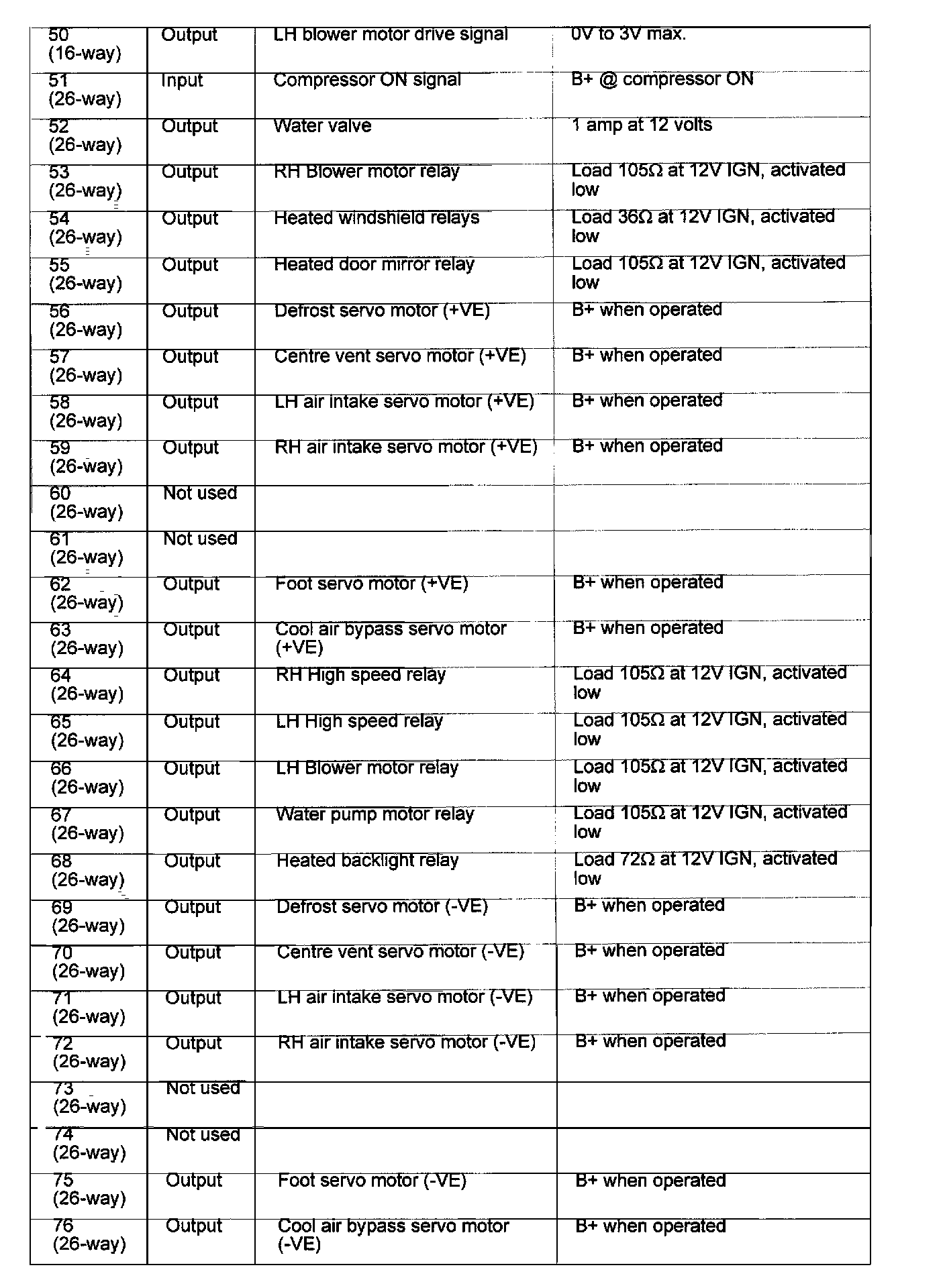

Pin 50(16-way) - 76(26-way):
