3-Way Movement

&#:

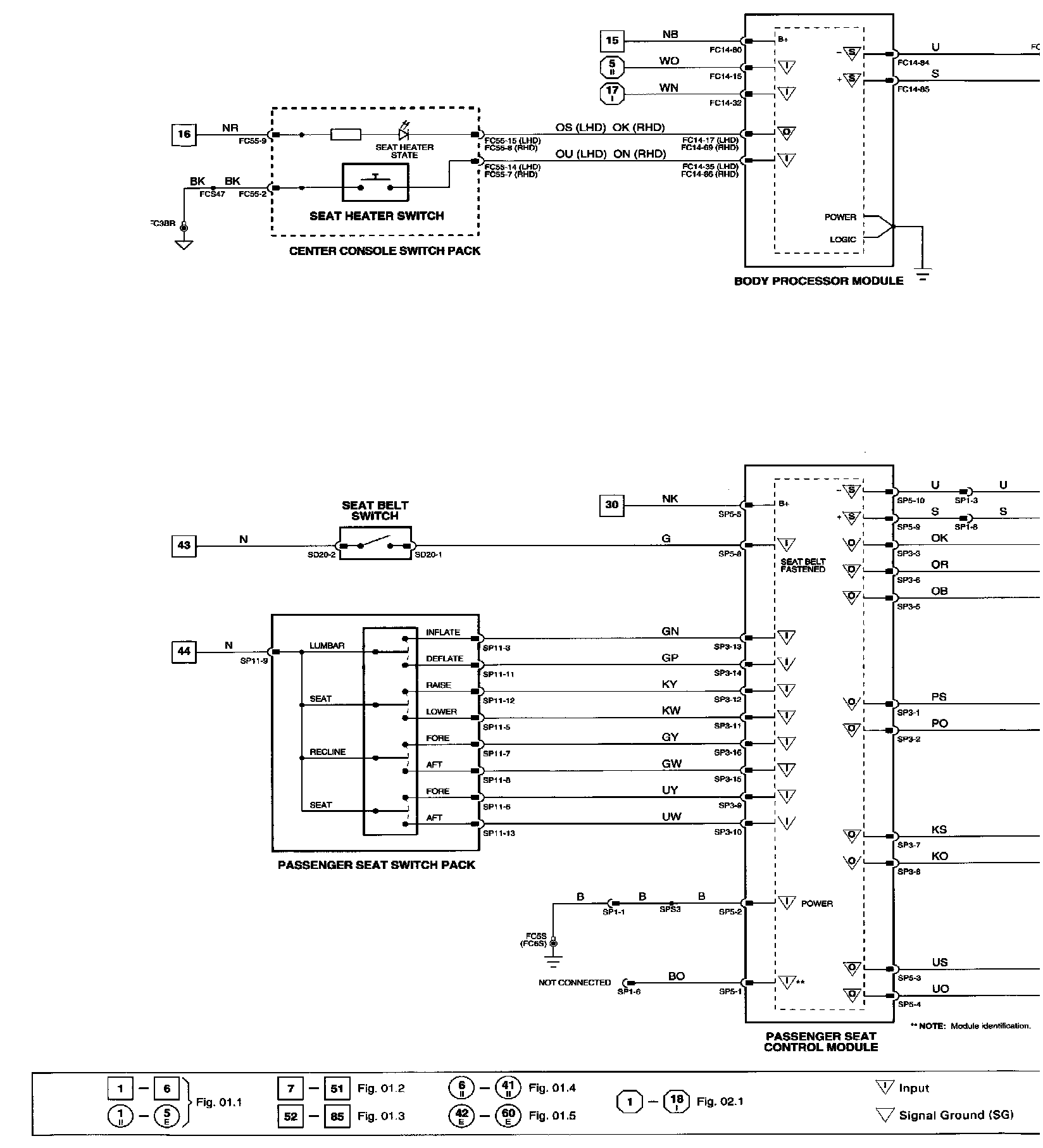

Wiring Diagram


Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

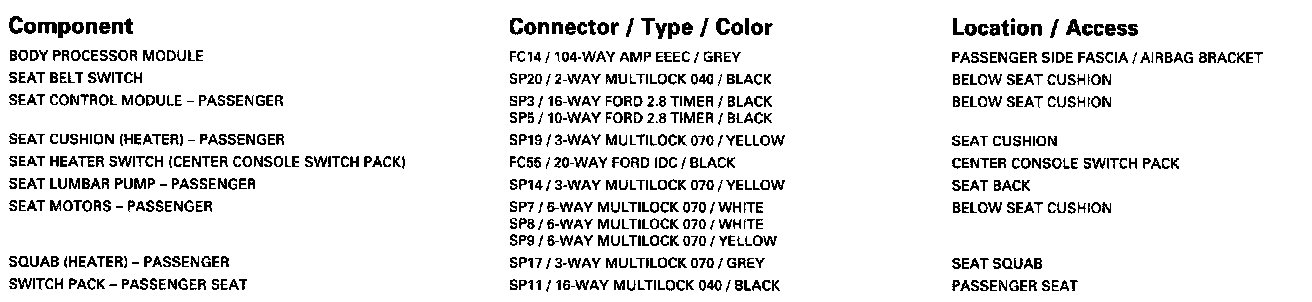

Component Information







Harness to Harness Connector Information

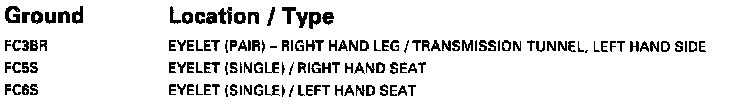

Ground Information

W�#:

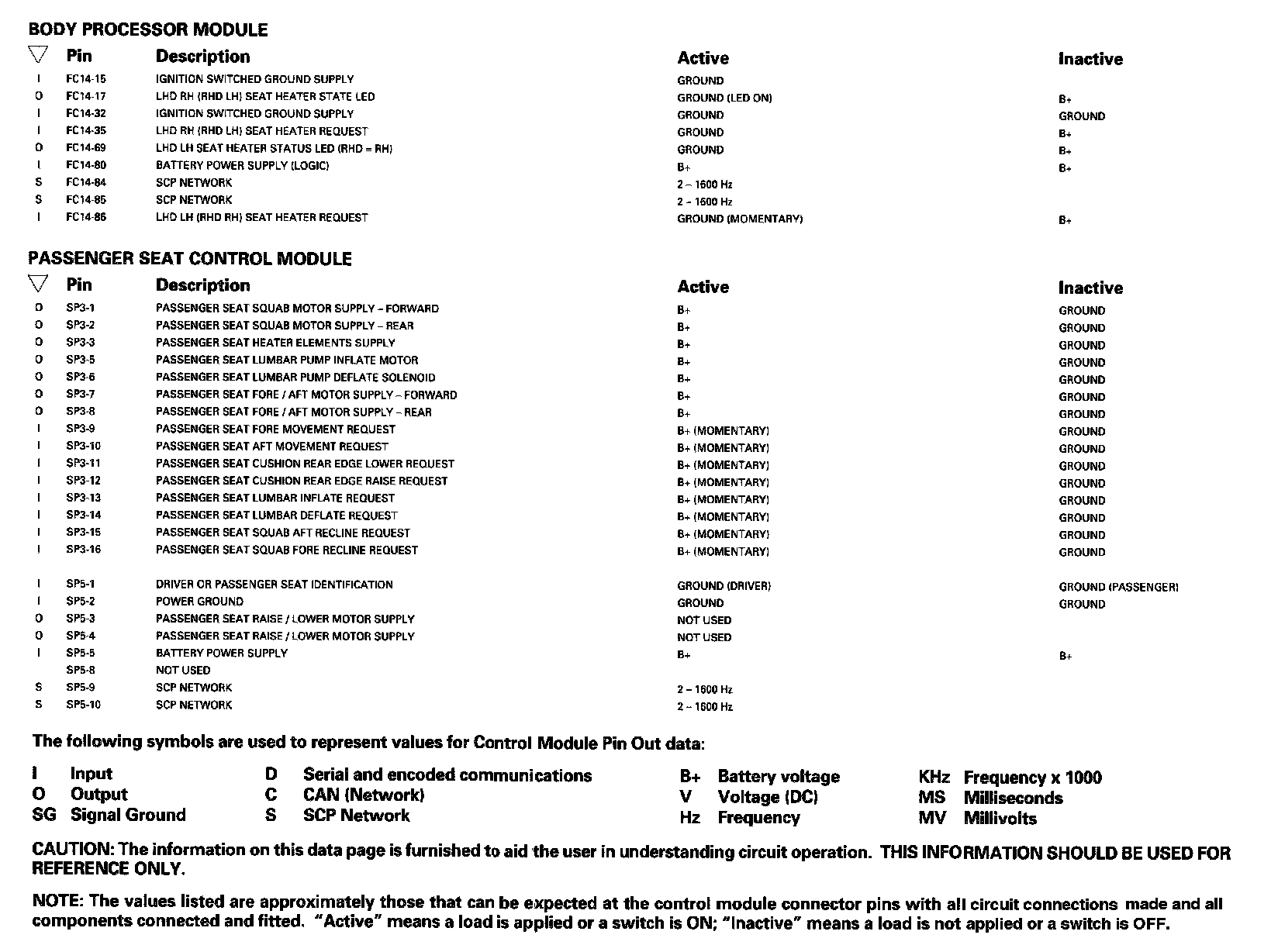

Control Module Pin Out Information
