Interior and Exterior Mirrors: Fold-Back Mirrors
�I :

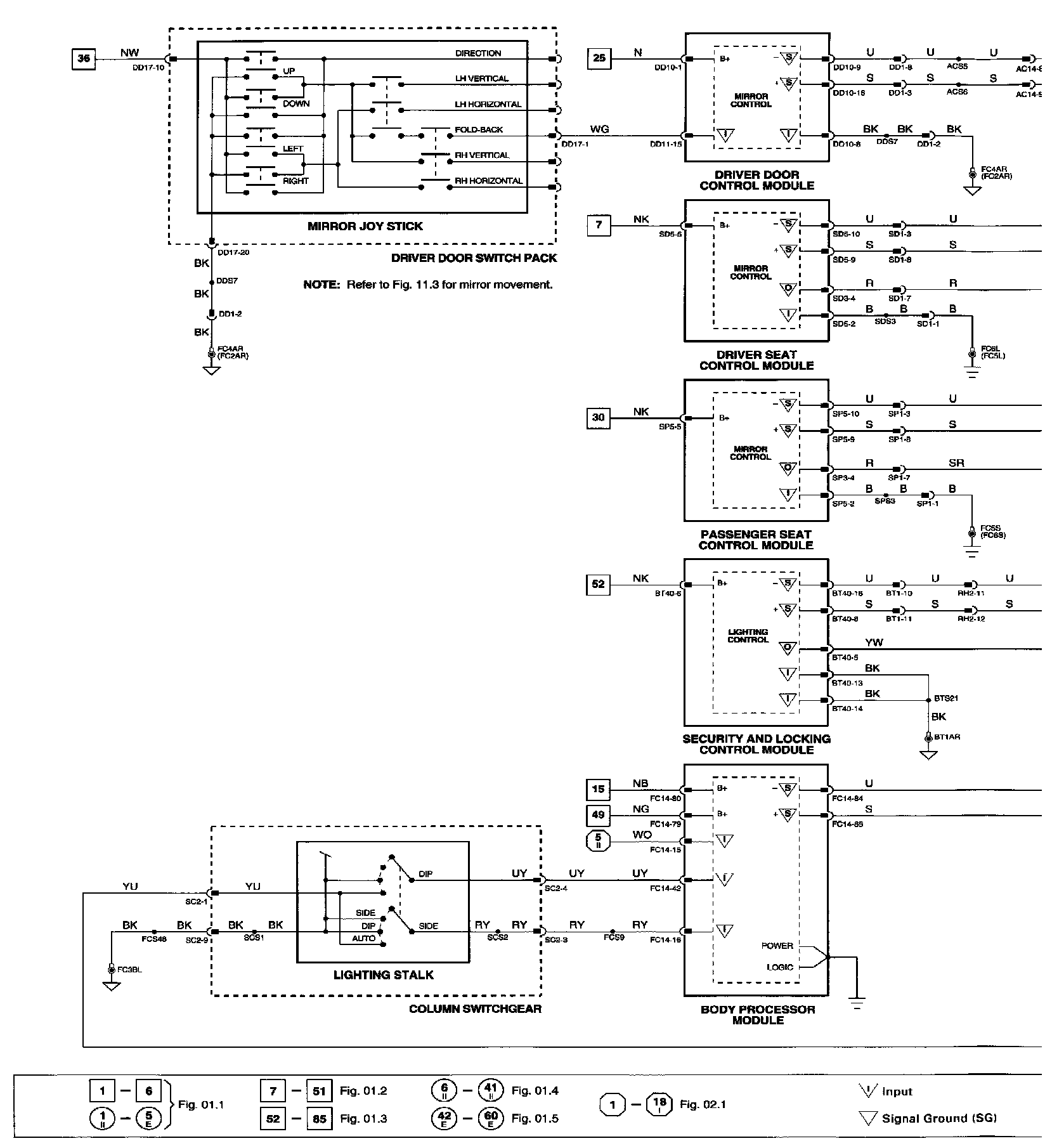

Wiring Diagram
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

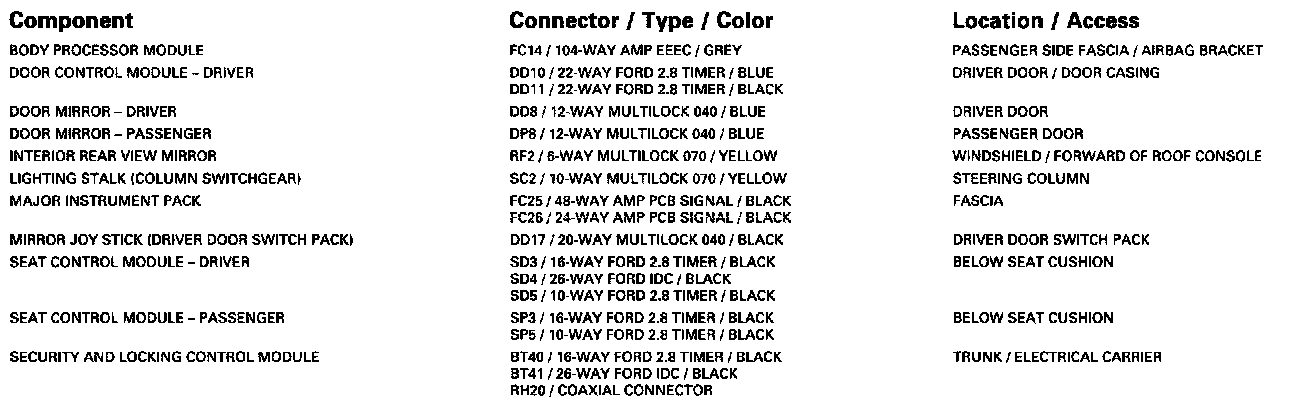

Component Information

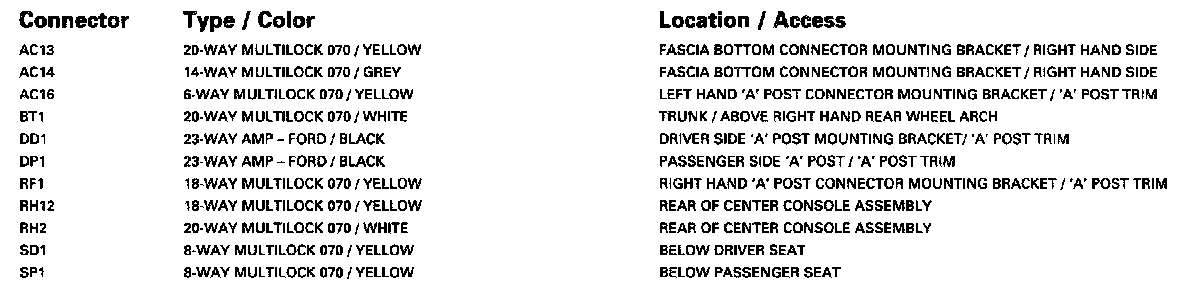

Harness to Harness Connector Information

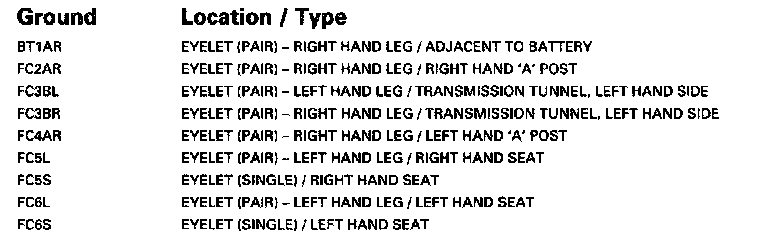

Ground Information

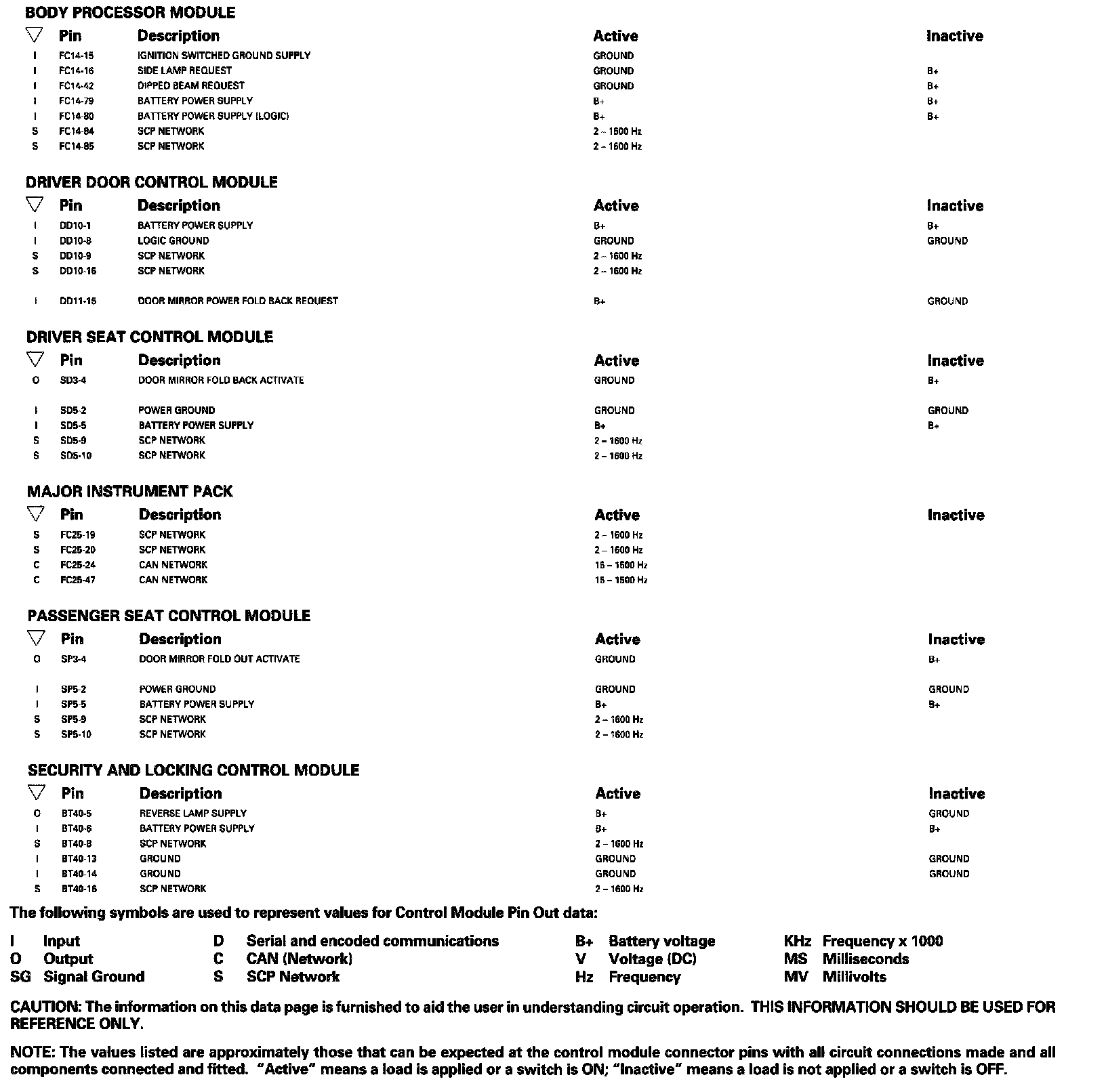

Control Module Pin Out Information
