Output Speed Sensor

Output Speed Sensor

Removal





1. Disconnect battery ground cable.
Remove the battery cover.





2. Raise the vehicle on a lift.

WARNING: TRANSMISSION FLUID MAY CAUSE SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES ARE OBSERVED.

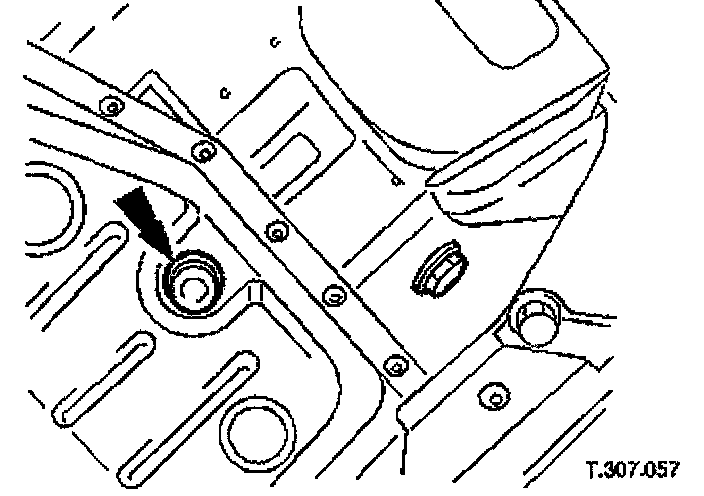

Carefully remove the drain plug and drain the transmission fluid.





3. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all traces of gasket material.





4. Remove the output speed sensor.

NOTE: M6 fixing.

Release the screw which secures the output speed sensor bracket and pull the sensor clear.





5. Disconnect the multiplug from the speed sensor.

Installation





1. NOTE: M6 fixing.

Connect the multiplug, install the output speed sensor and securing bracket. Tighten the screw to the specified torque figure.





2. NOTE: Ensure extreme cleanliness and never reuse transmission fluid.

Using a new gasket, install the fluid pan and tighten the twenty-two fixings to the specified. torque figure.
3. Connect the battery and fit the battery cover.
Reset the radio and the clock.
