Shifter A/T: Service and Repair

Shift Lever Knob

Removal

1. Disconnect the vehicle battery ground lead.





2. Remove the selector lever knob.
Slacken the ferrule, rotate clockwise.
Rotate the knob counter-clockwise to remove.

Installation

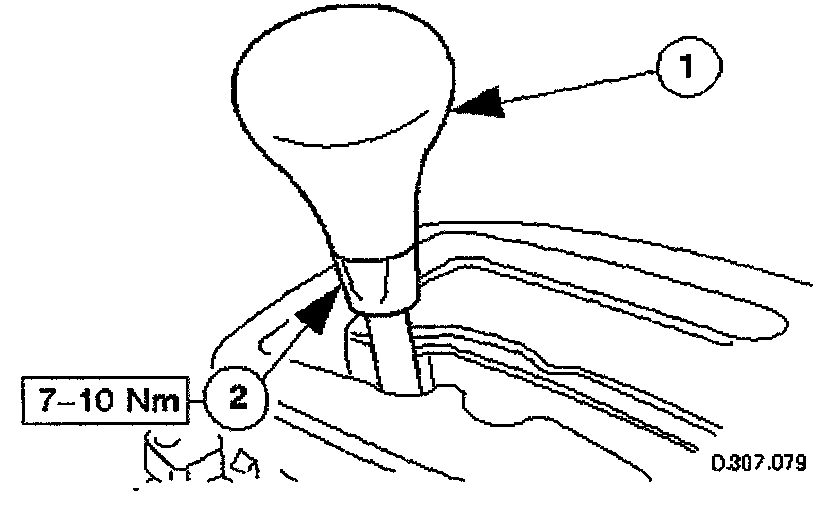

1. Refer to the illustration.
Fit the knob.
Refer to the illustration.
