Luggage Compartment Fuse Box

Removal





1. Disconnect battery ground cable. Service and Repair





2. Remove cover from fuse box.
1. Release securing tangs.
2. Remove cover.

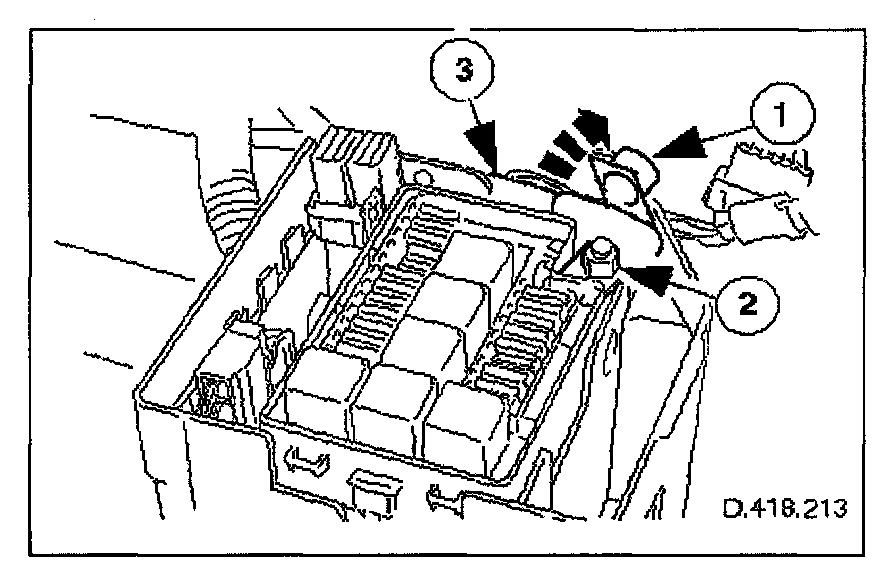

3. Remove positive supply power cable.
1. Displace cover.
2. Remove nut.
3. Disconnect cable.

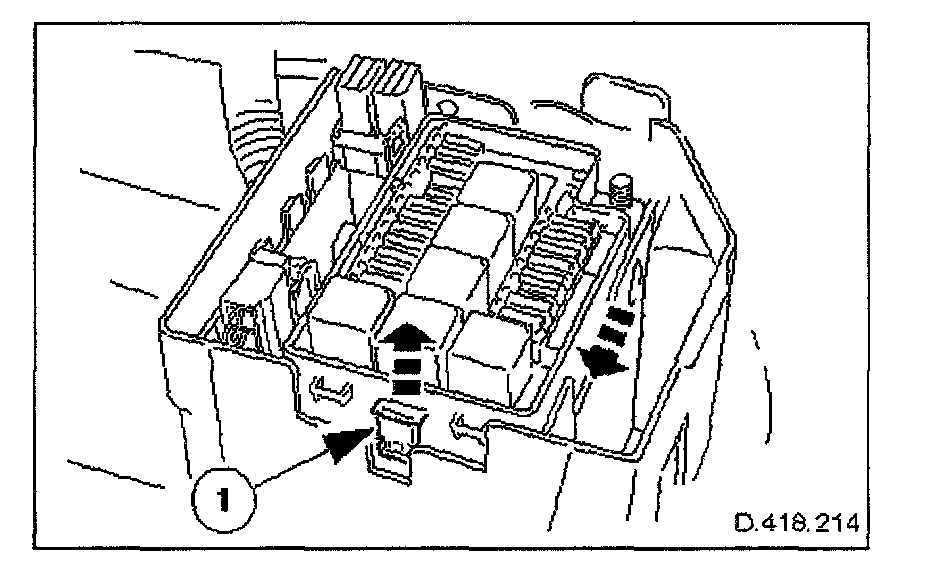

4. Displace fuse box from mounting panel for access.
1. Release securing latch upwards.
- Release fuse box from mounting panel by displacement towards spare wheel.

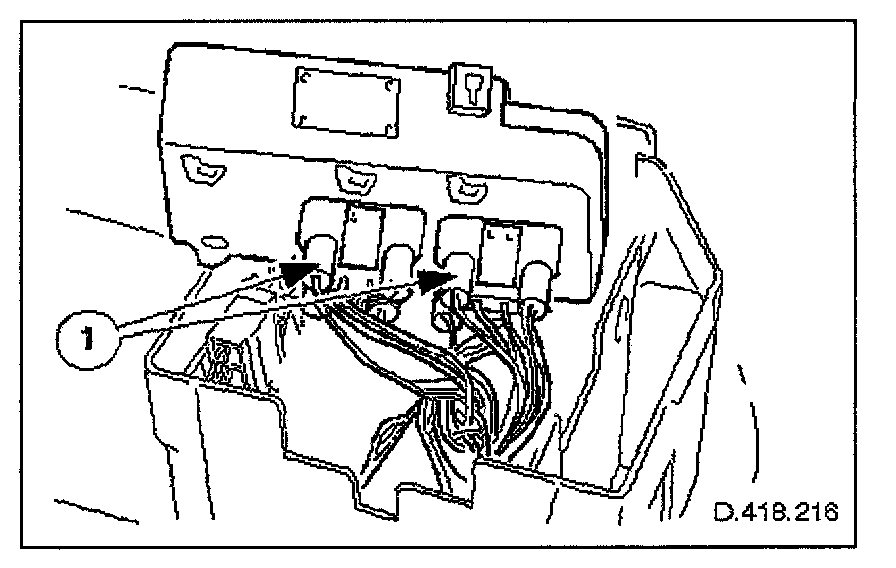

5. Remove fuse box.
1. Identify and disconnect harness connectors.

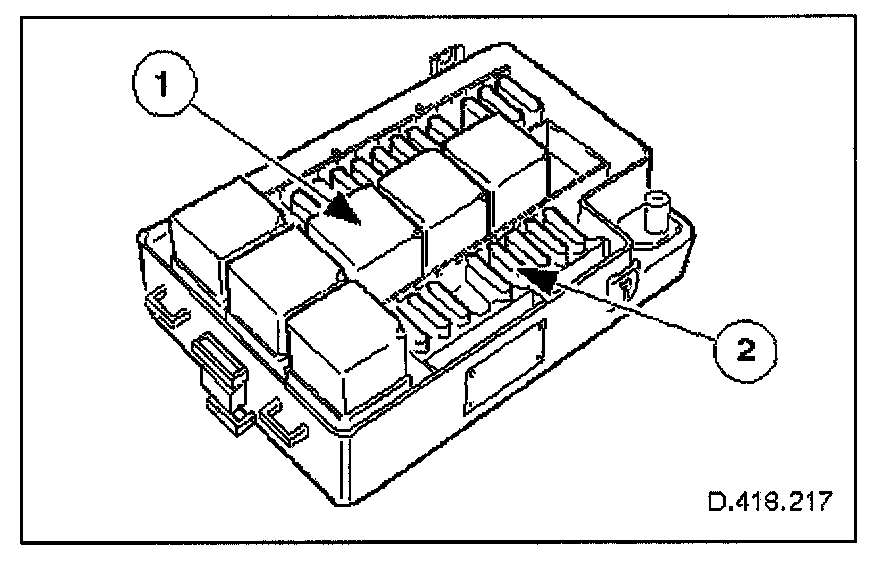

6. Remove fuses and relays.
1. Note position of each relay and remove them.
2. Identify each fuse and remove them.
- The value and position of each fuse is illustrated on the lid of the trunk compartment fuse box - for all fuse boxes on the vehicle.


Installation
1. Installation is reverse of removal.
2. Reconnect battery ground cable. Service and Repair
