Heelboard Fuse Box - Right or Left Hand

Removal





1. Disconnect battery ground cable. Service and Repair
2. Remove heelboard trim panel.

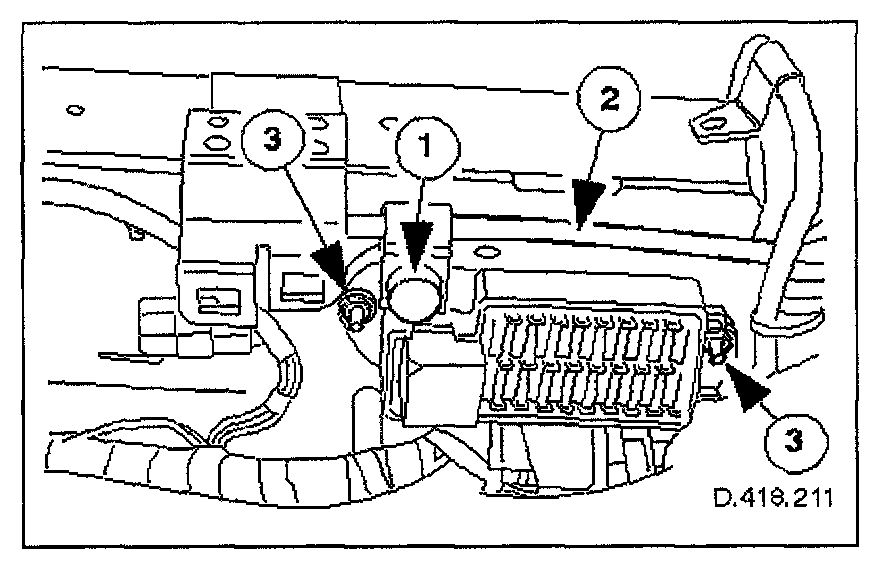

3. Remove positive supply power cable and displace fuse box.
- Displace cover.
1. Remove nut which secures positive cable to fuse box.
2. Disconnect cable.
3. Remove nuts.





4. Remove fuse box.

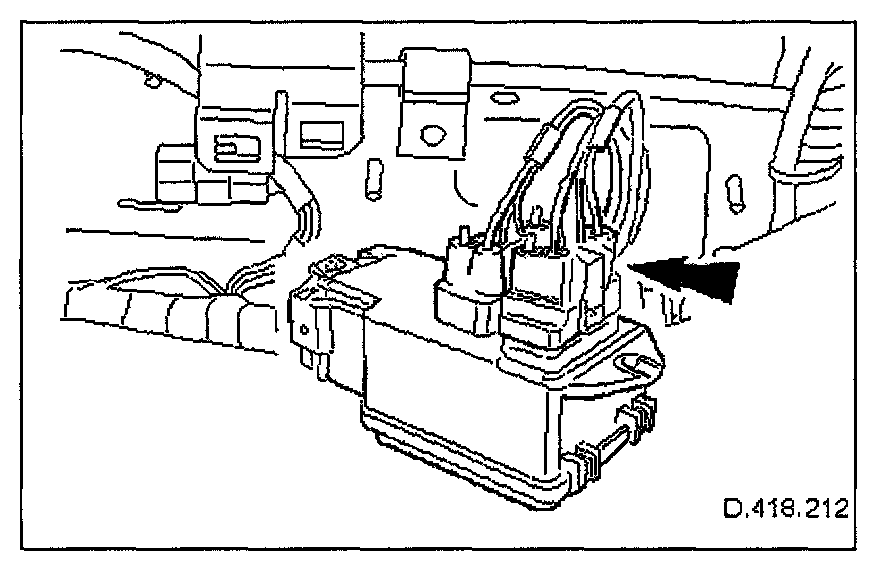

Identify and disconnect harness connectors.





5. Remove fuses and relay.
1. Remove relay.
2. Identify each fuse and remove them.
- The value and position of each fuse is illustrated on the lid of the trunk compartment fuse box - for all fuse boxes on the vehicle.


Installation
1. Installation is reverse of removal.
2. Reconnect battery ground cable. Service and Repair
