Overall Specifications

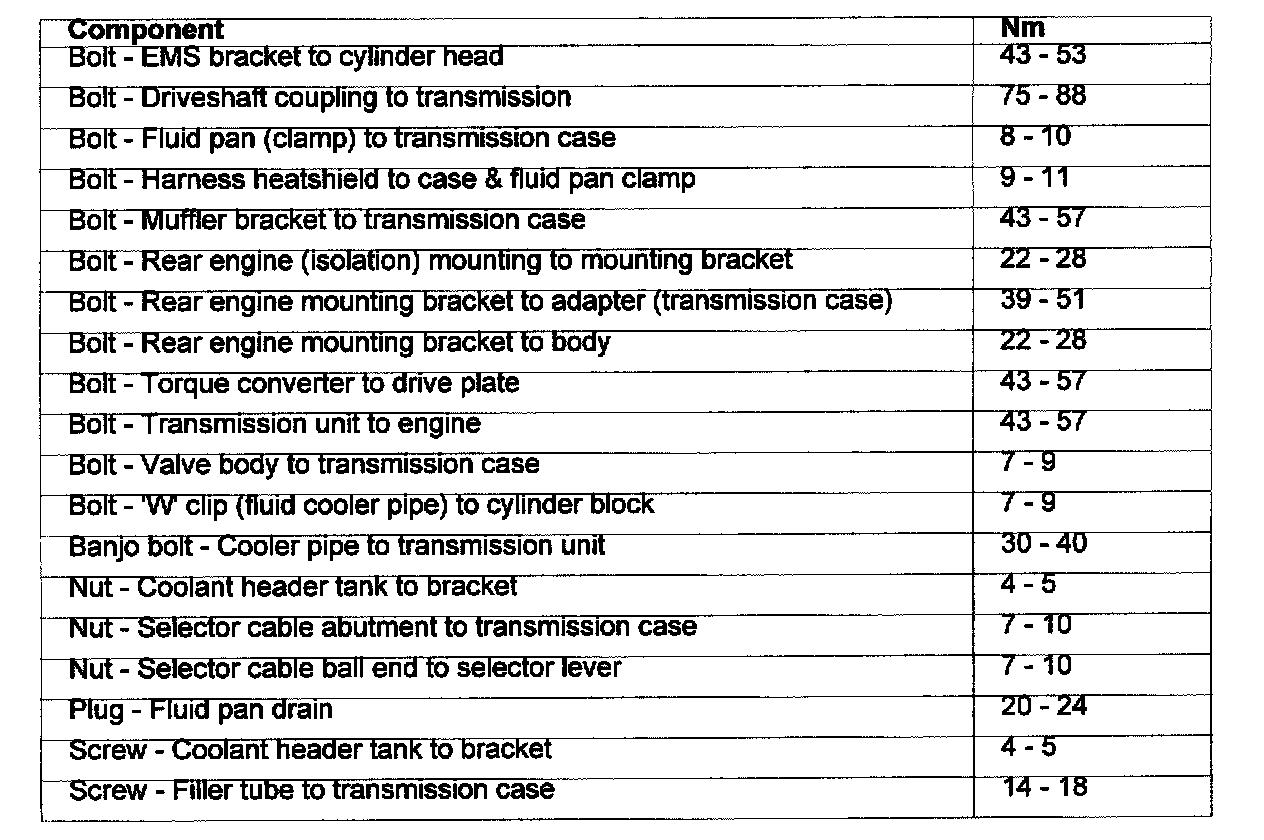

Torques - Automatic Transmission (Supercharged Vehicles)

Internal Gear Ratios - Automatic Transmission (Supercharged Vehicles)
