Front Suspension
>>

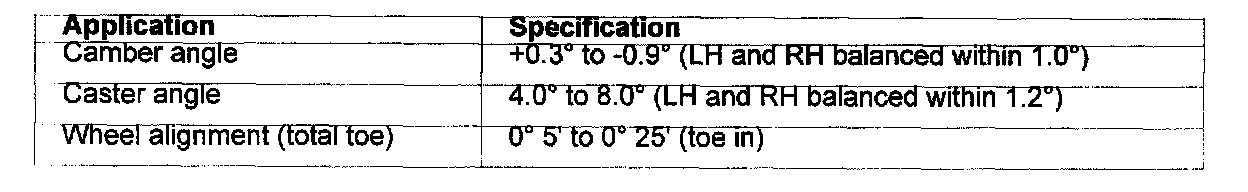

Front Suspension Service Data
Front Suspension Service Data
NOTE:
Settings to be checked with the vehicle at "curb" height (unladen, with full tank of fuel).
