Front Door Glass Lift Switch pack Illumination Bulb

FRONT DOOR GLASS LIFT SWITCH PACK ILLUMINATION BULB


Removal
1. Remove casing/armrest assembly from door.

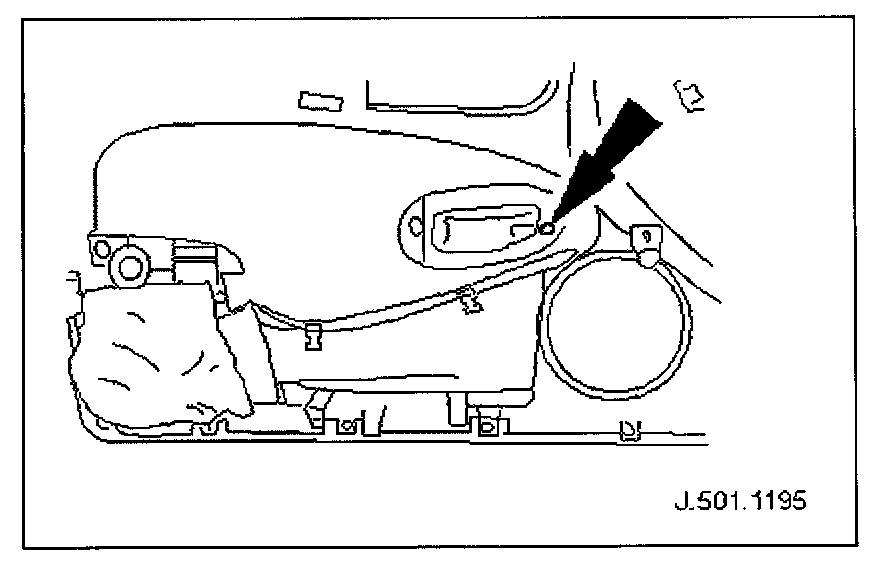

2. Slacken and remove armrest front securing screw.







3. Position armrest for access slacken and remove two switch pack securing screws and remove switch pack assembly from armrest.

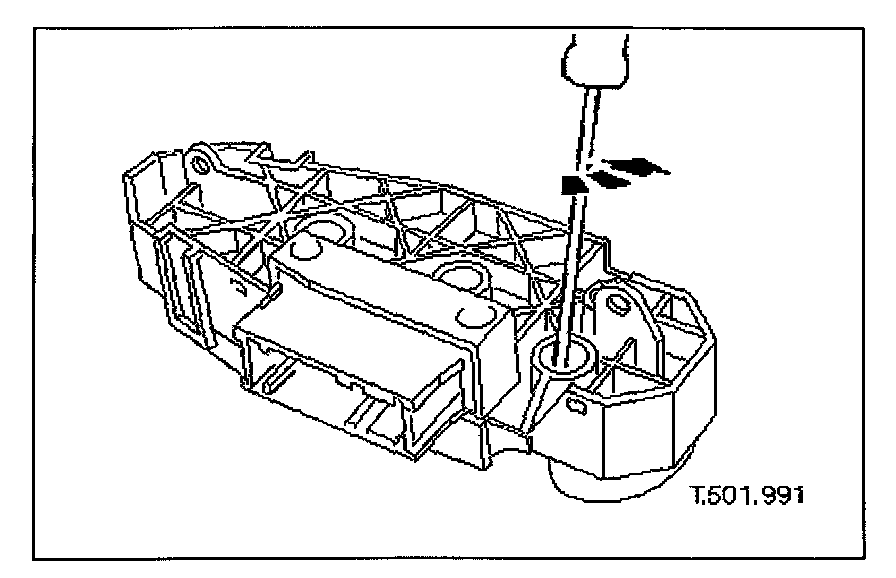

4. Invert switch pack and using a small flat bladed screwdriver rotate bulb holder 1/8 turn counterclockwise.

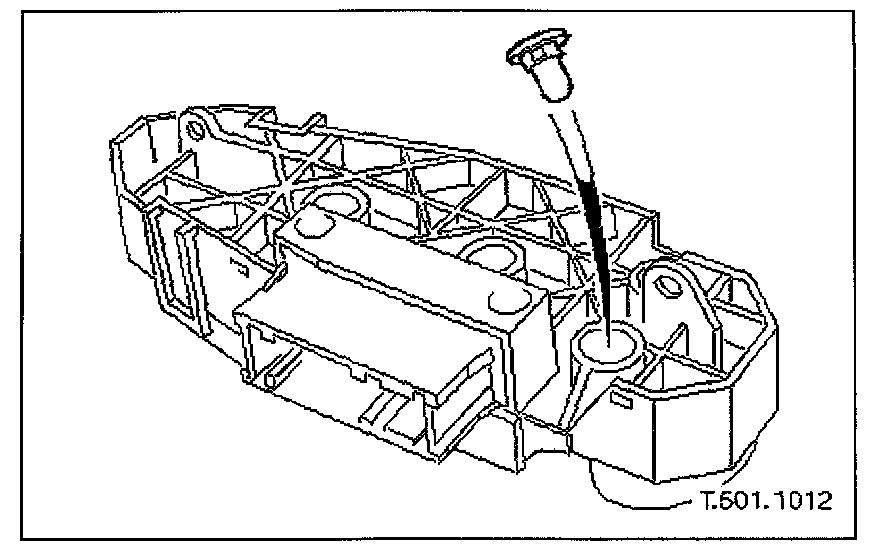

5. Remove bulb from switch pack base.

Installation
1. Fit illumination bulb in switch pack base and using a small flat bladed screwdriver rotate it 1/8 turn clockwise to fully seat.
2. Fit switch pack to armrest. Front Door Glass Lift Switch pack
3. Fit casing/armrest assembly to door.
