Front Door Glass Lift Switch pack

FRONT DOOR GLASS LIFT SWITCH PACK

Removal
1. Remove casing/armrest assembly from door.

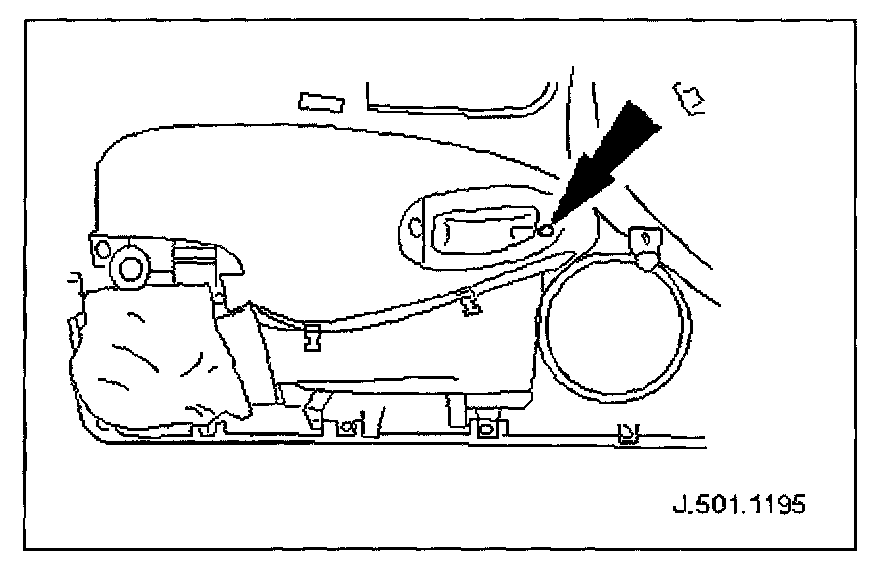

2. Slacken and remove armrest front securing screw.

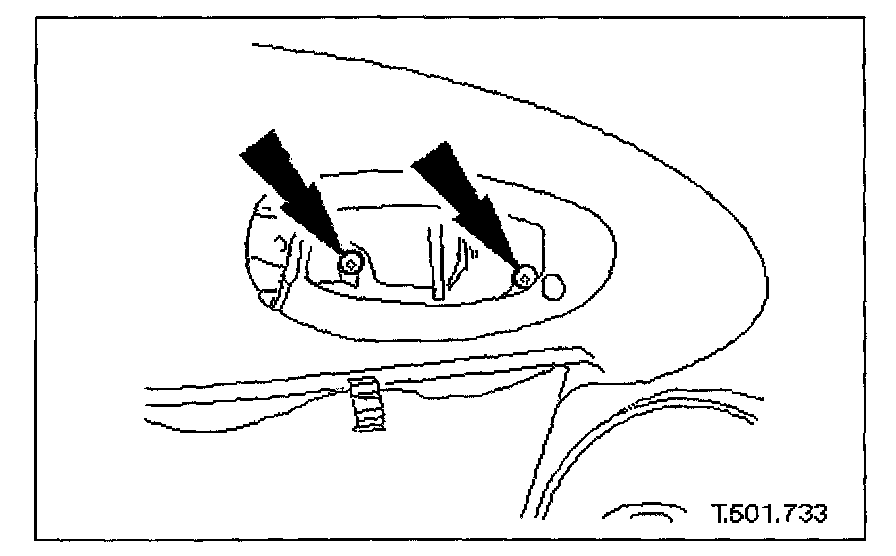

3. Position armrest for access, slacken and remove two switch pack securing screws and remove switch pack assembly from armrest.

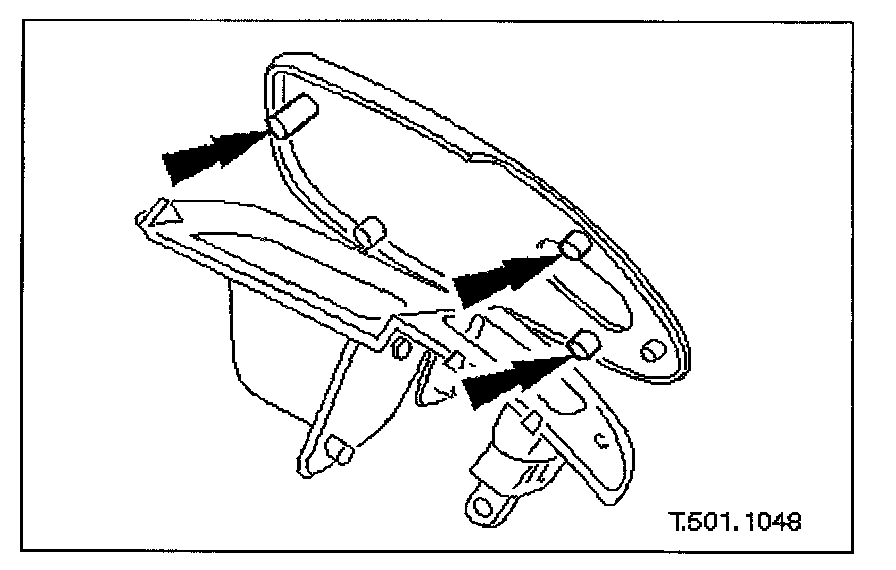

4. Slacken and remove screws securing veneer panel to switch pack.

Installation
1. Position veneer panel on switch pack and fit and tighten securing screws.
2. Position switch pack assembly on armrest and fit and tighten securing screws.
3. Fit and tighten screw securing front of armrest to door casing.
4. Fit casing/armrest assembly to door.
