Single Point Sensor

Single Point Sensor

Removal

1. WARNING: Following disconnection of the battery, a period of at least one minute must be allowed to elapse before any work is carried out on an air bag system component.

Remove battery cover and disconnect ground cable from battery terminal.
2. Remove 'J' gate surround.
3. Remove centre console veneer panel.
4. Remove radio.

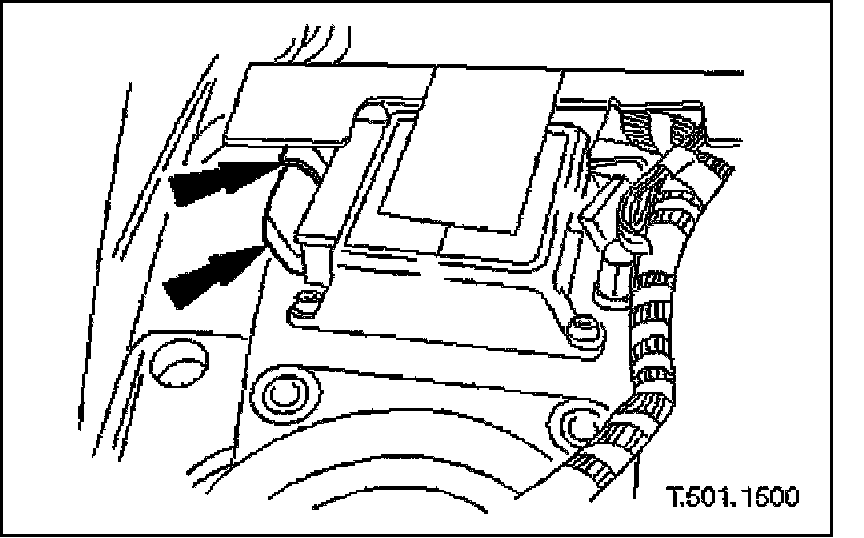

5. Release single point sensor harness multiplug retaining lever and disconnect multiplug.







6. NOTE: The serial numbers of all supplementary restraint system components must always be recorded against the VIN of the vehicle.

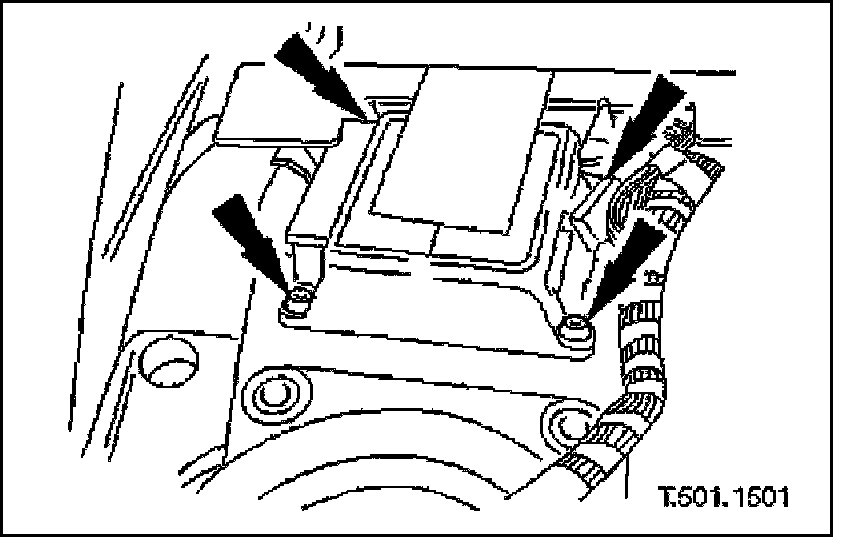

Slacken and remove single point sensor securing bolts and remove sensor from vehicle.

Installation

1. Position sensor on tunnel and fit and tighten securing bolts.
2. Connect single point sensor harness multiplug and secure with retaining lever.
3. Fit radio.
4. Fit centre console veneer panel.
5. Fit 'J' gate surround.
6. Connect ground cable to battery terminal and fit battery cover.
