Fog/Driving Lamp Switch: Service and Repair

Combined Front and Rear Fog Lamp Switch Pack

Removal

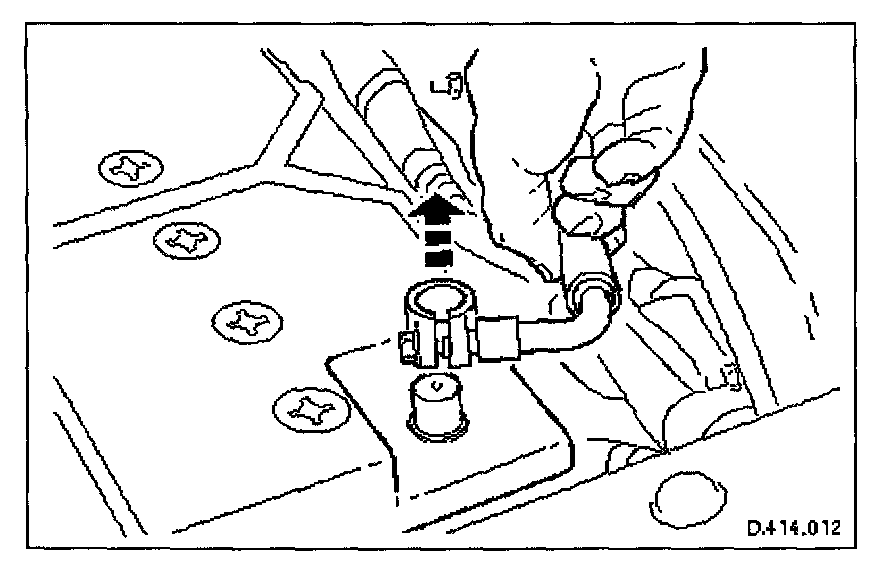

1. Remove battery cover and disconnect ground cable from battery terminal.
2. Remove instrument panel veneer panel.

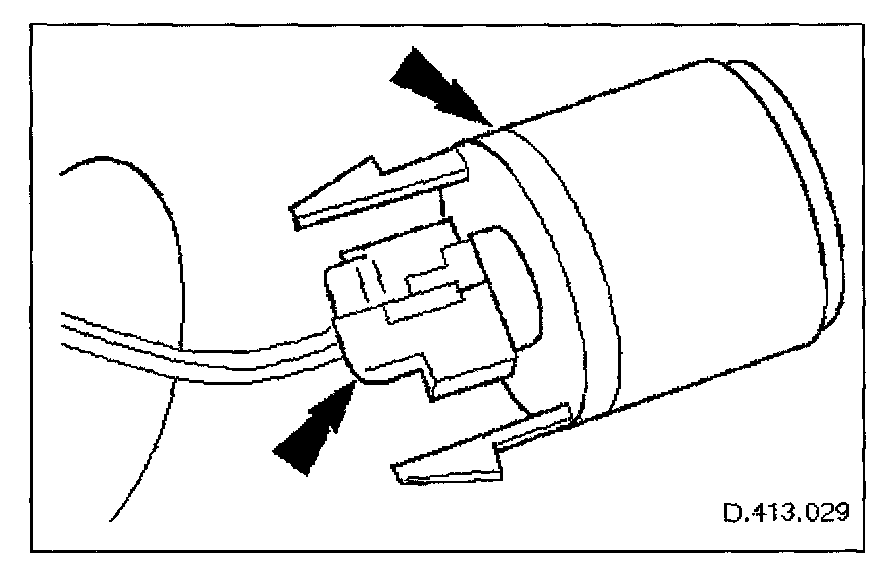

3. Remove combined front and rear fog lamp switch pack.
- Use a small screwdriver to release upper retaining tag
- Position switch for access to connector.
- Disconnect connector and remove switch.

Installation
1. Position switch pack at instrument panel.
2. Connect harness connector to switch pack
3. Install switch pack in panel, ensuring that retaining tangs are fully seated.
4. Install instrument panel veneer panel.
5. Connect ground cable to battery terminal and install battery cover.
