Combination Switch: Service and Repair

Flasher/Headlamp/Trip Switch

Removal
1. Disconnect battery ground cable.


2. NOTE: Steering wheel must be in straight ahead position.


Remove steering wheel.







3. Displace cancellation module connector from mounting bracket and disconnect.

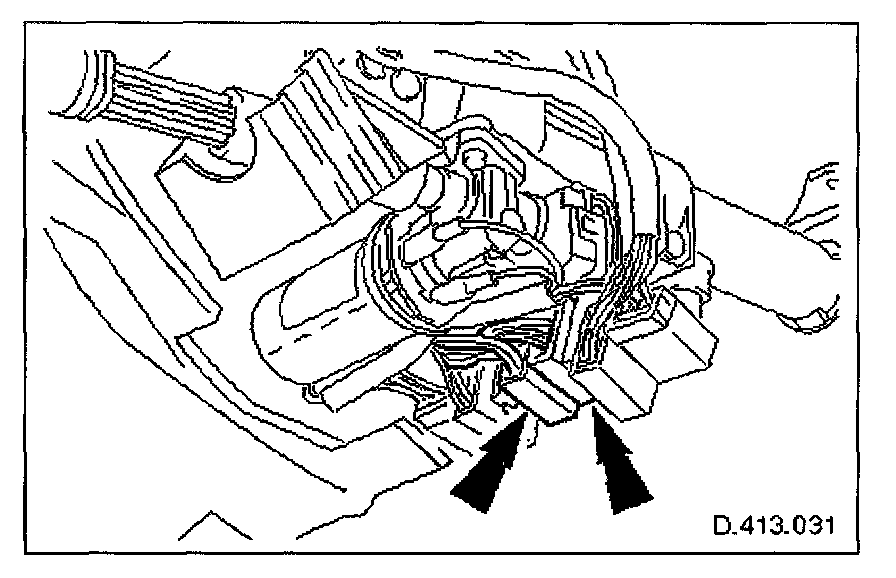

4. Displace flasher/headlamp/trip switch connectors from mounting bracket and disconnect.
- Cut and remove appropriate harness securing ties.

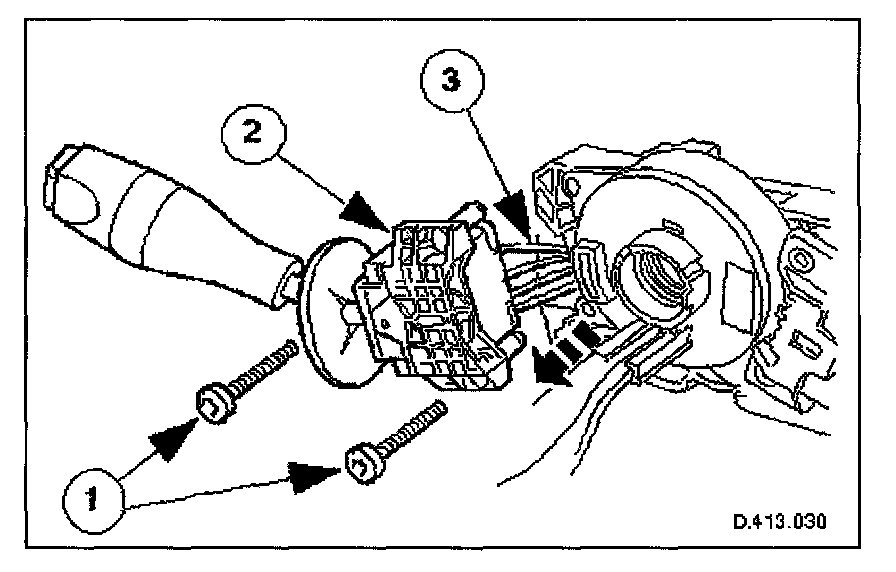

5. Remove switchgear.
1. Remove two screws which secure switch assembly/cancellation module to mounting bracket.
2. Displace switchgear from mounting bracket.
3. Route switchgear harness through mounting bracket and remove switchgear.

Installation
1. Installation is reverse of removal.
