Solar Sensor: Description and Operation

Solar Sensor:

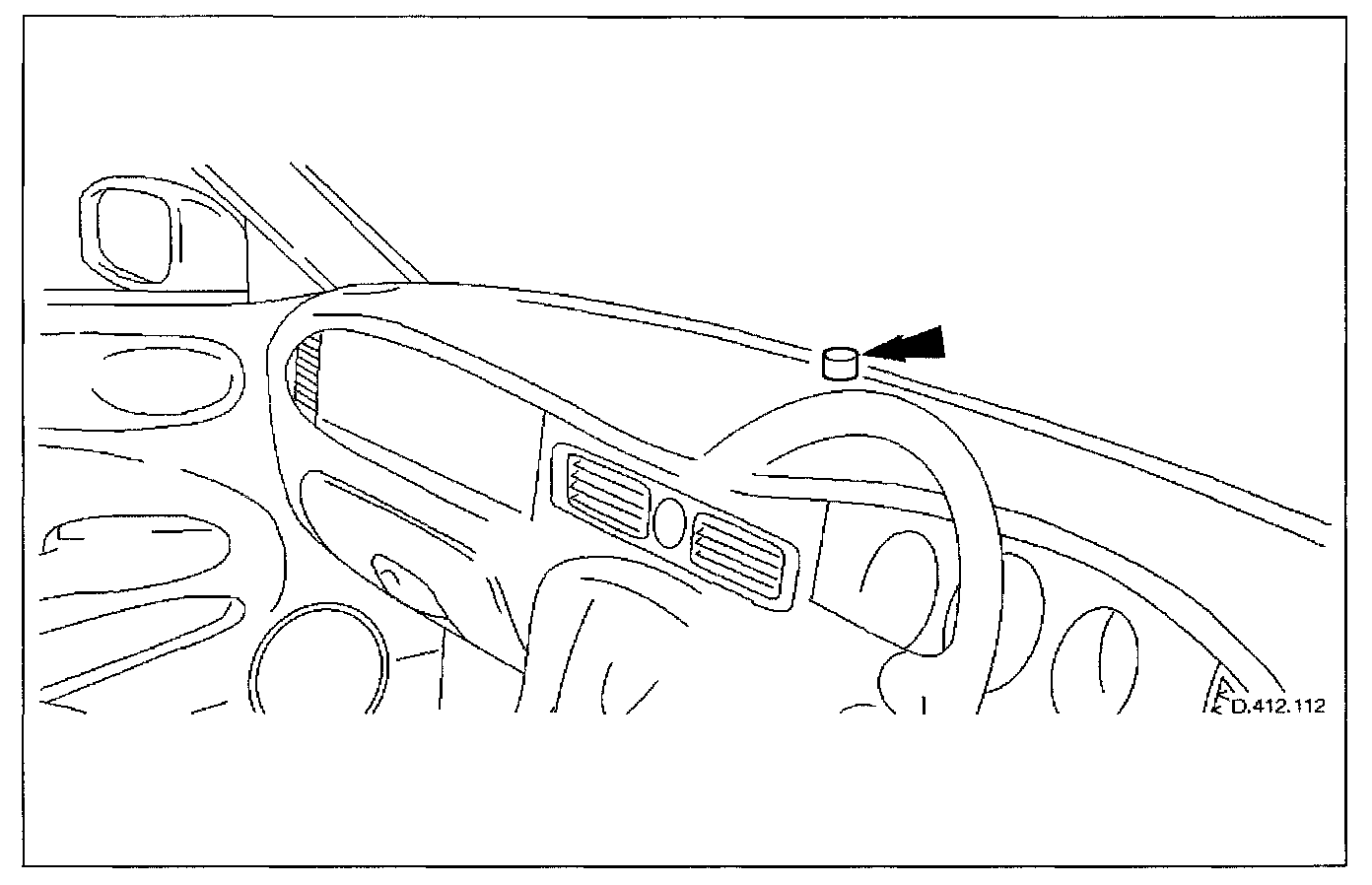

The solar sensor is mounted on the top surface of the fascia between the defrost outlets.

The sensor is a photo-diode which is calibrated to measure direct sunlight. It provides an output signal to the A/CCM which automatically reduces air temperature and increases fan speed (airflow volume) to compensate for solar heating.
