Refrigerant Pressure Sensor / Switch: Service and Repair

Pressure Switch

Removal

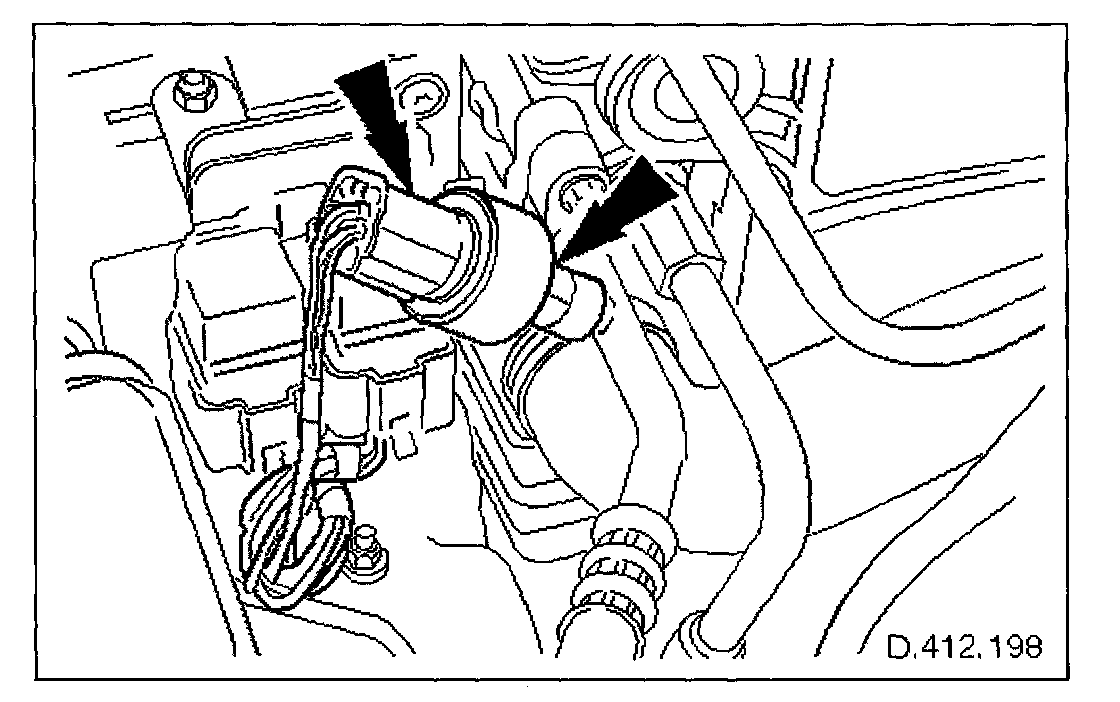

1. Remove pressure switch.
- Disconnect connector.


NOTE: Discard O-ring seal.


- Remove switch.

Installation

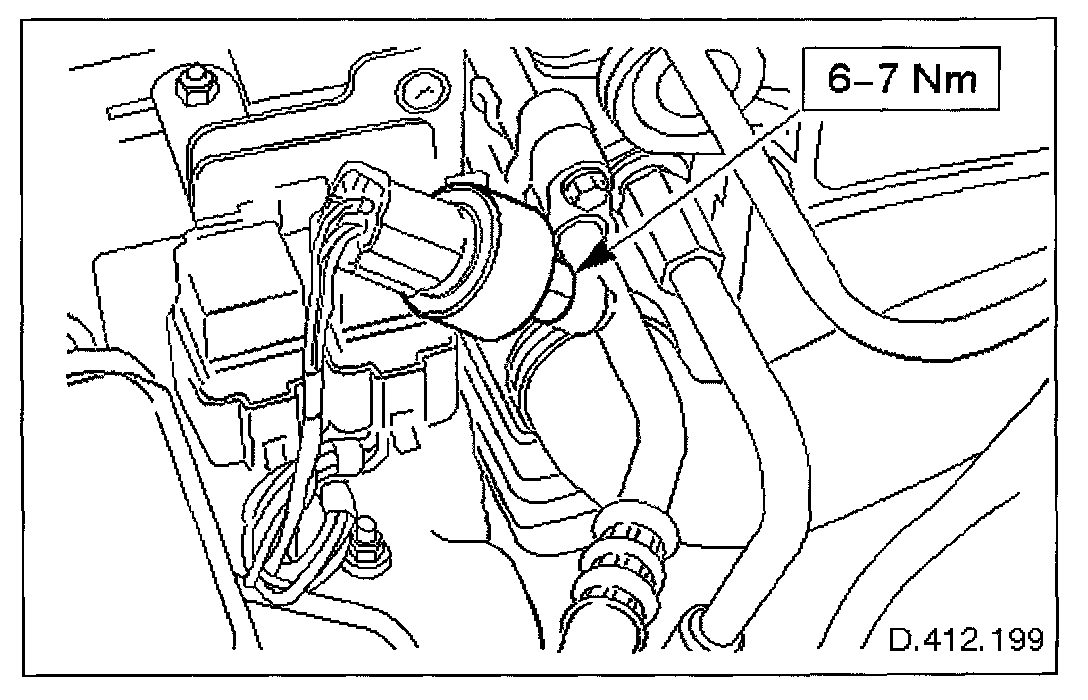

1. NOTE: Clean mating faces, install new O-ring seal and lubricate with clean compressor oil.


Installation is a reversal of the removal procedure.
