Oil Pressure Sender: Service and Repair

Oil Pressure Switch

Removal
1. Raise vehicle on four post ramp.

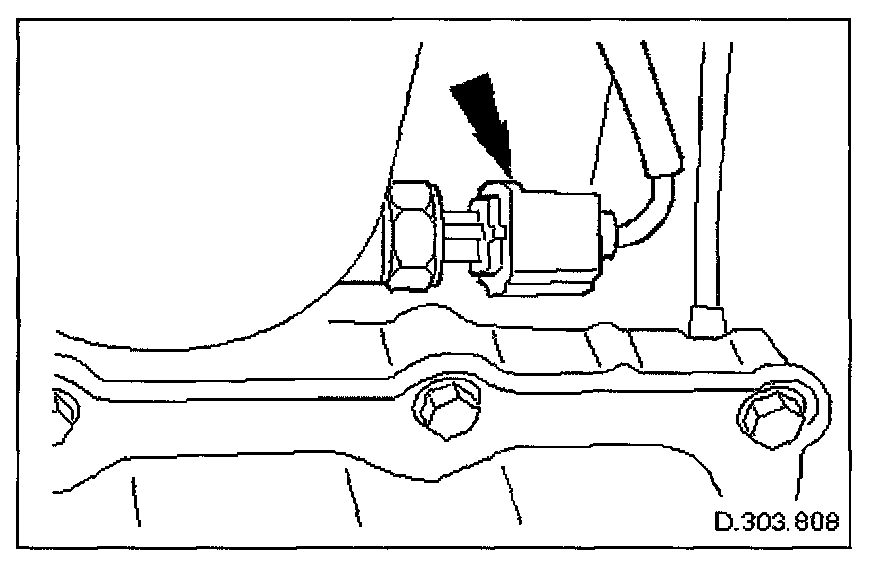

2. Remove oil pressure switch.
- Disconnect connector.
- Remove oil pressure switch from oil filter head.

Installation

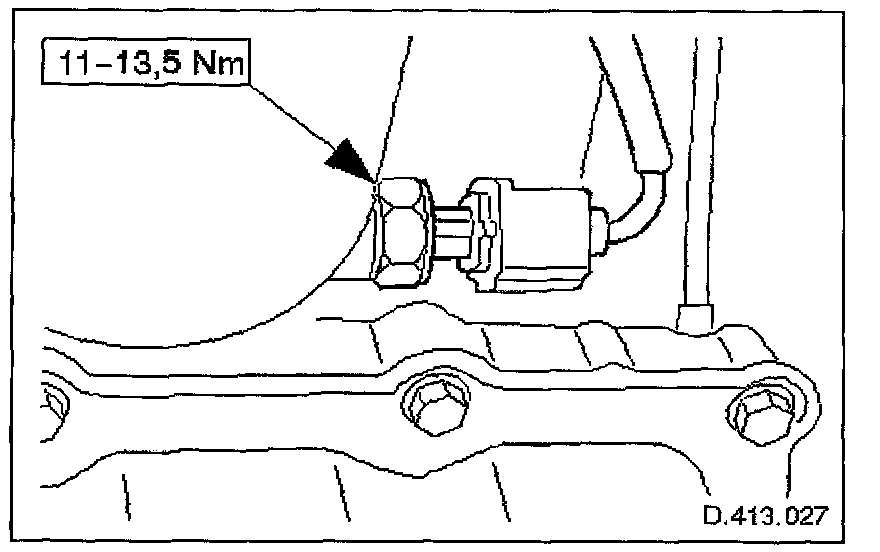

1. NOTE: Fit new sealing washer to oil pressure switch.


Installation is reverse of removal.
