Valet Switch: Service and Repair

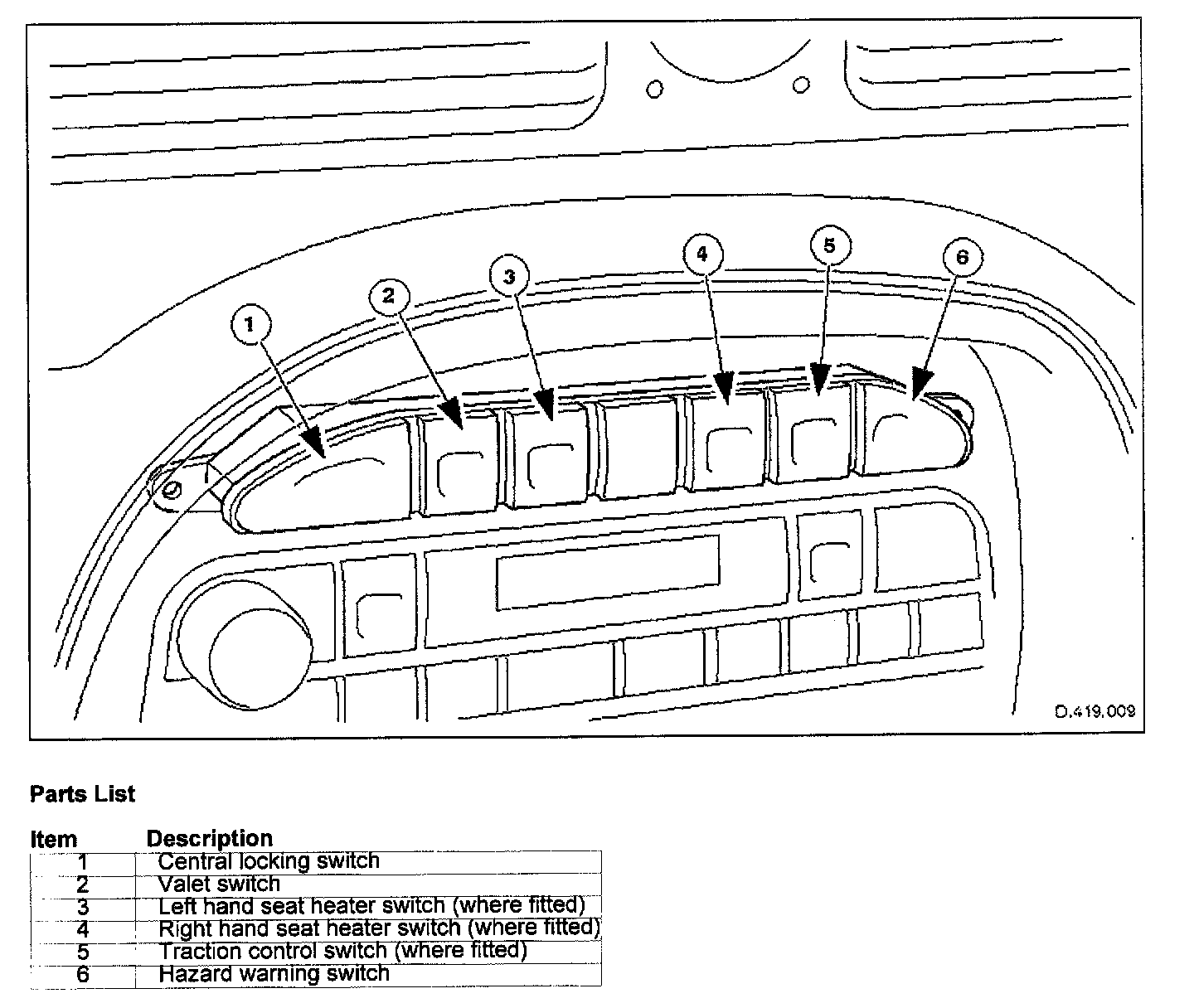

Center Console Switch Module (CCSM):

The Center Console Switch Module comprises the integral switches identified in the image above. All switches with the exception of the Traction Control Switch are connected to BPM inputs. The Traction Control Switch is connected to an ABS unit input.


Removal, Center Console Switch Module





1. Disconnect battery ground cable. Refer to 'Battery, Battery Cable.' Negative
2. Remove center console veneer panel.
3. Displace radio for access.

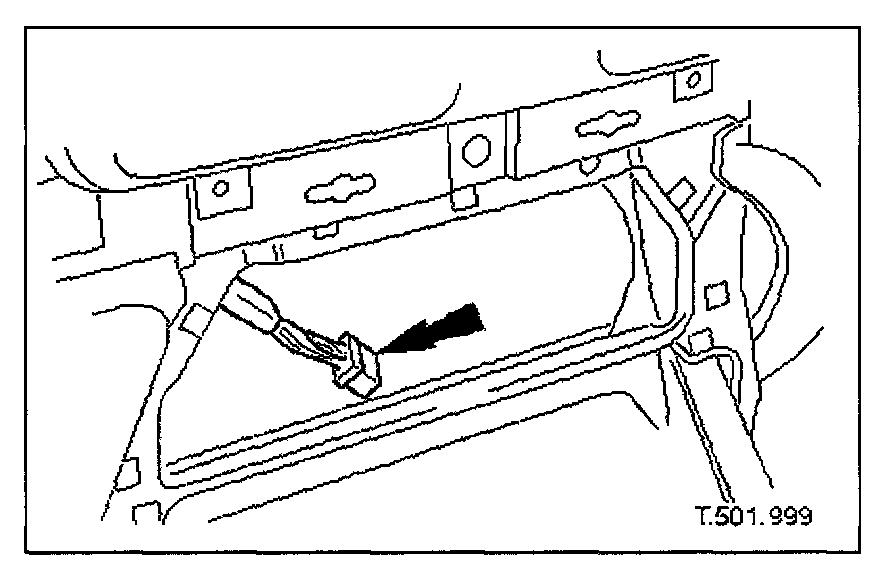

4. Disconnect air conditioning control module flying lead connector (blue) from harness connector located at side of 'J' gate.

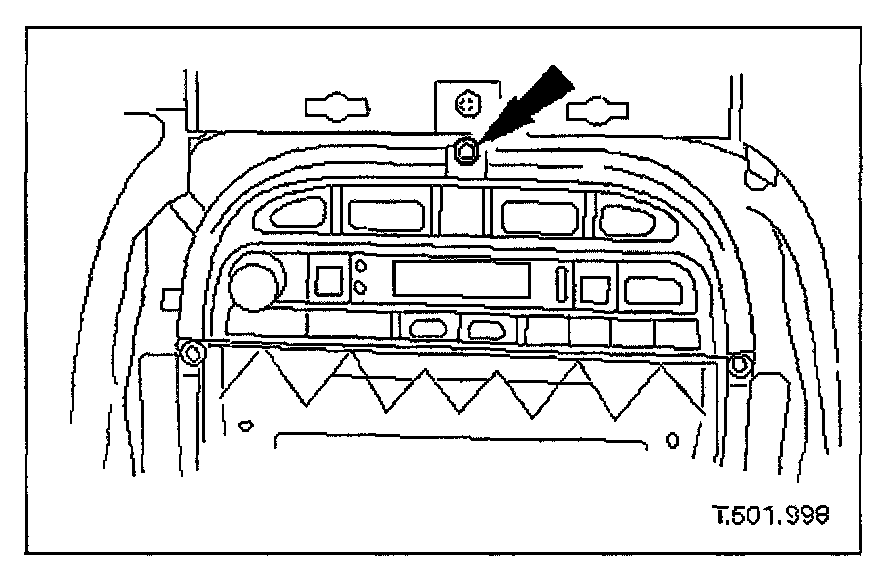

5. Displace air conditioning switch module / center console switch module assembly.
- Remove screw
- Reposition assembly for access to connector.

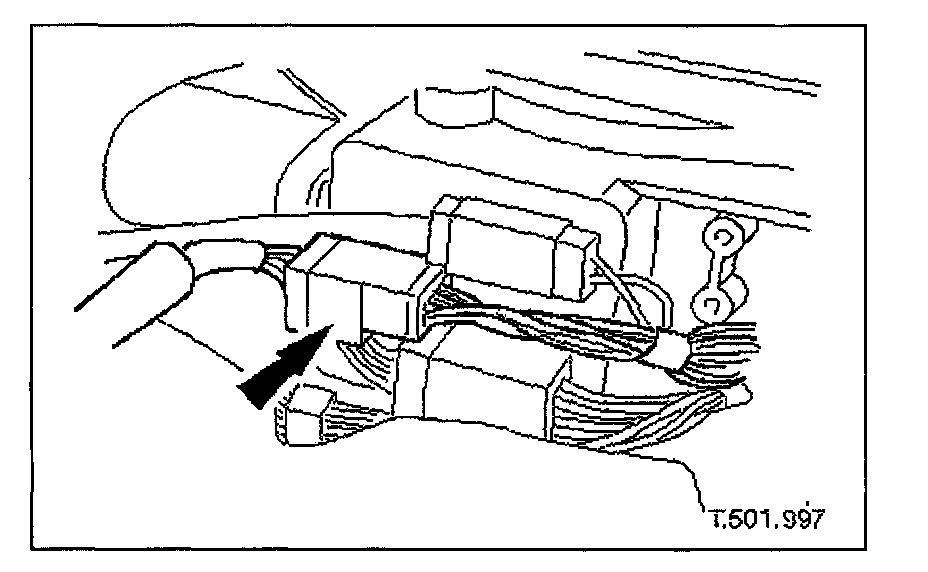

6. Remove air conditioning switch module / center console switch module assembly.
- Disconnect center console switch module harness connector.
- Remove assembly.

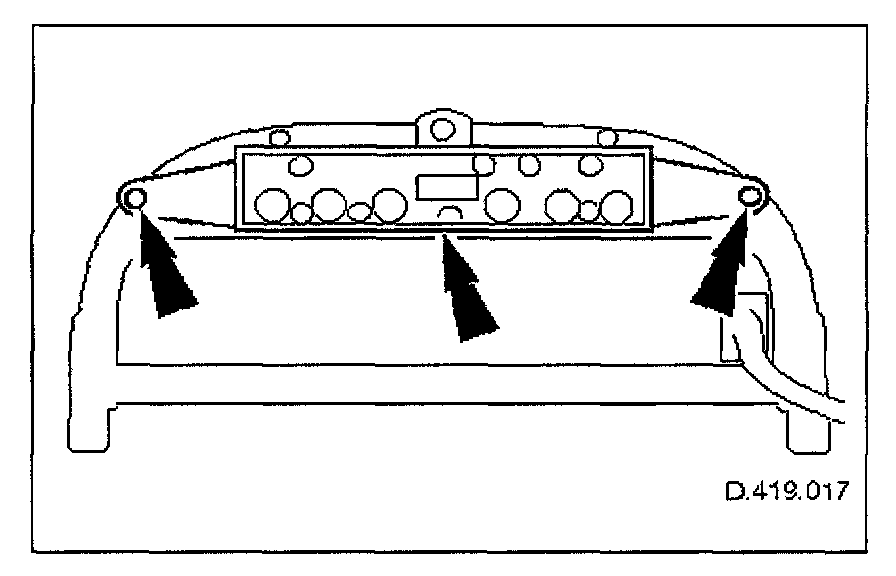

7. Remove center console switch module.
- Remove two screws.
- Remove module.


Installation
1. Installation is reverse of removal.
2. Reconnect battery ground cable; refer to Battery Reconnection Procedure. Service and Repair
