Power Seat Switch: Service and Repair

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove front seat for access. Service and Repair
3. Place seat inverted on clean working surface for access to underside.

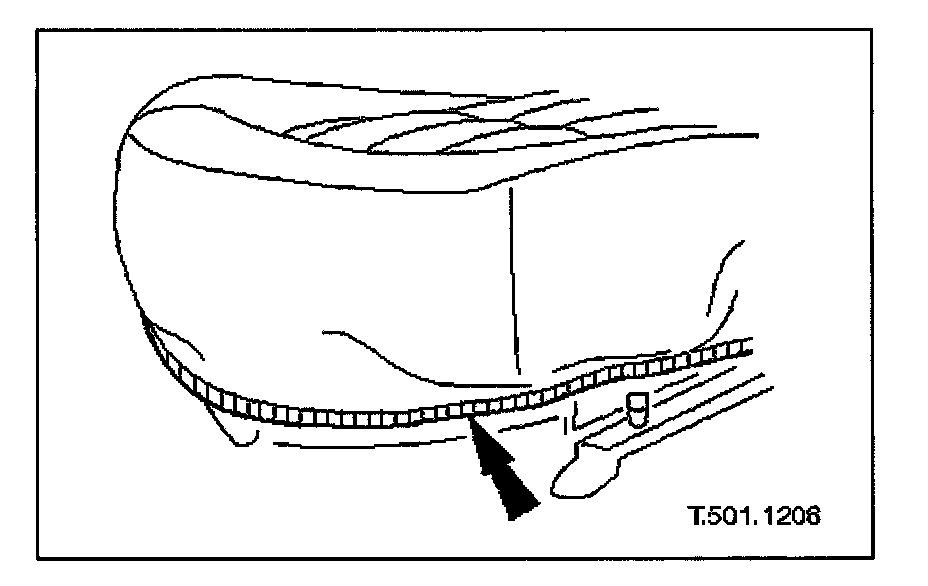

4. Release cushion cover retaining strip from edge of seat frame.





5. Release cushion cover front elastic retaining straps from seat frame.





6 Position cushion cover sides for access to cushion pad, raise pad to access back of switch pack and disconnect harness multiplug.

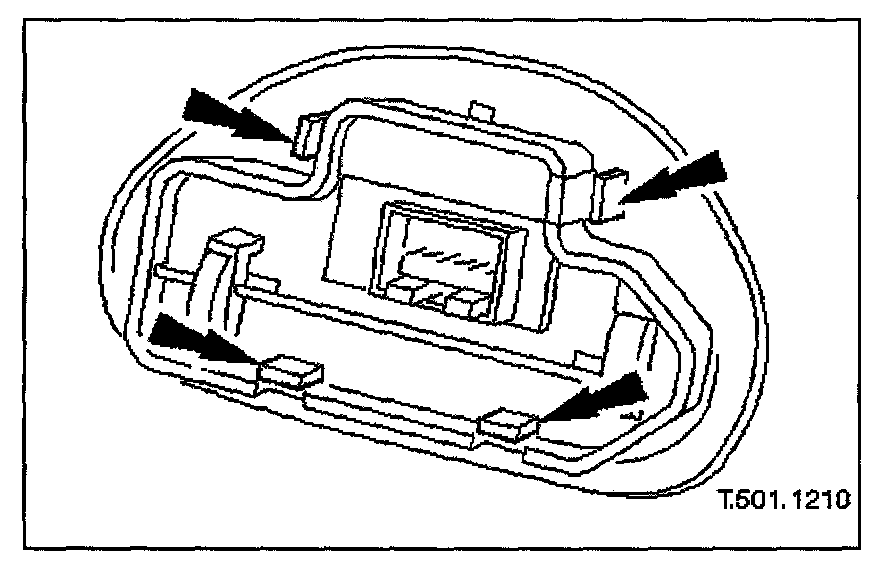

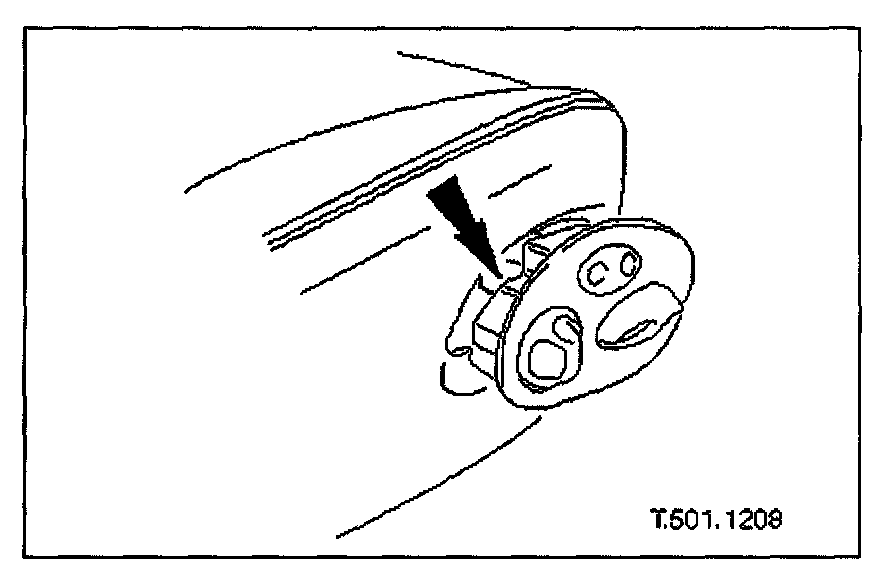

7. Release switchpack upper retaining tangs, and lower retaining tangs situated by seat sliders and remove switchpack from seat.


Installation
1. Install and fully seat switchpack in seat mounting.
2. Raise cushion pad for access to rear of switch pack and connect harness multiplug.
3. Release cushion pad and secure cushion cover front elastic retaining straps to seat frame.
4. Pull cushion cover over cushion pad and fully seat edge retaining strip on seat frame.
5. Install seat in vehicle.
6. Connect ground cable to battery terminal and fit battery cover. Service and Repair
