Ignition Switch: Description and Operation

The key-operated ignition switch is located on the right-hand side of the steering column and has four positions.

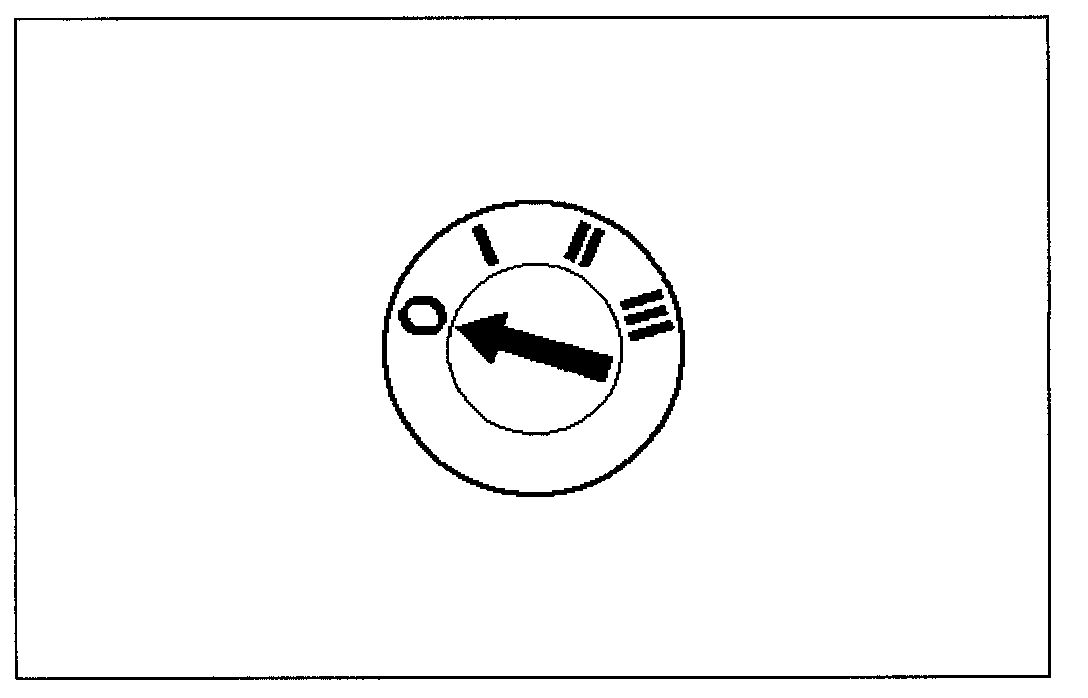

Position 'O'







OFF. The only position in which the key can be inserted or removed. With the key removed, the steering lock engages. The key can only be removed when the transmission is in the Park position.

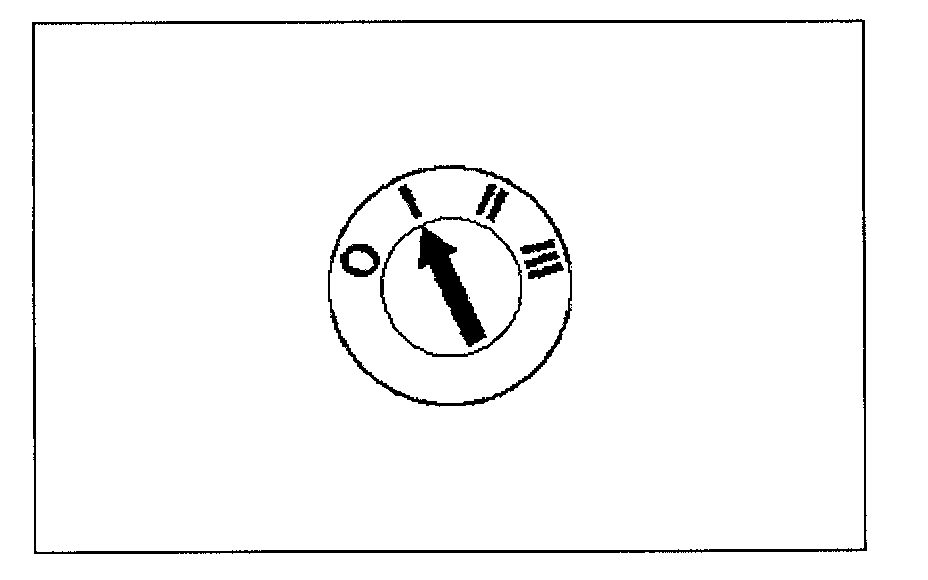

Position 'I'







AUXILIARY. Certain circuits, i.e. radio and windows, can be operated without switching on the ignition.

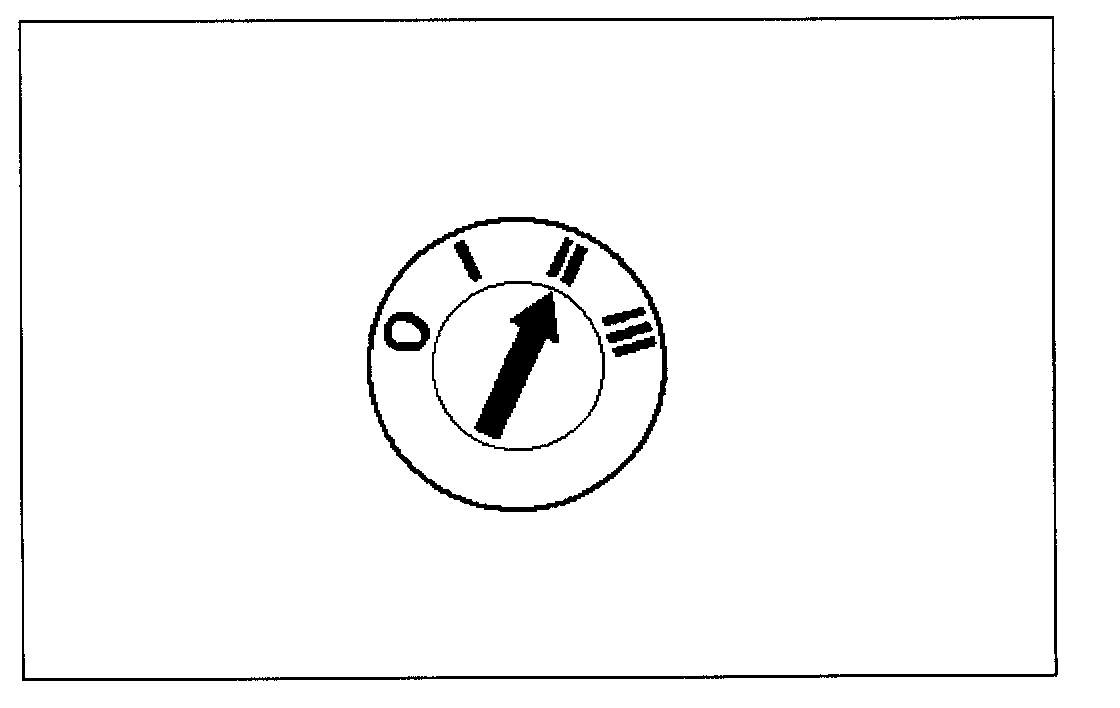

Position 'II'







IGNITION. All circuits, except the starter motor, are activated. The key remains in this position when driving.

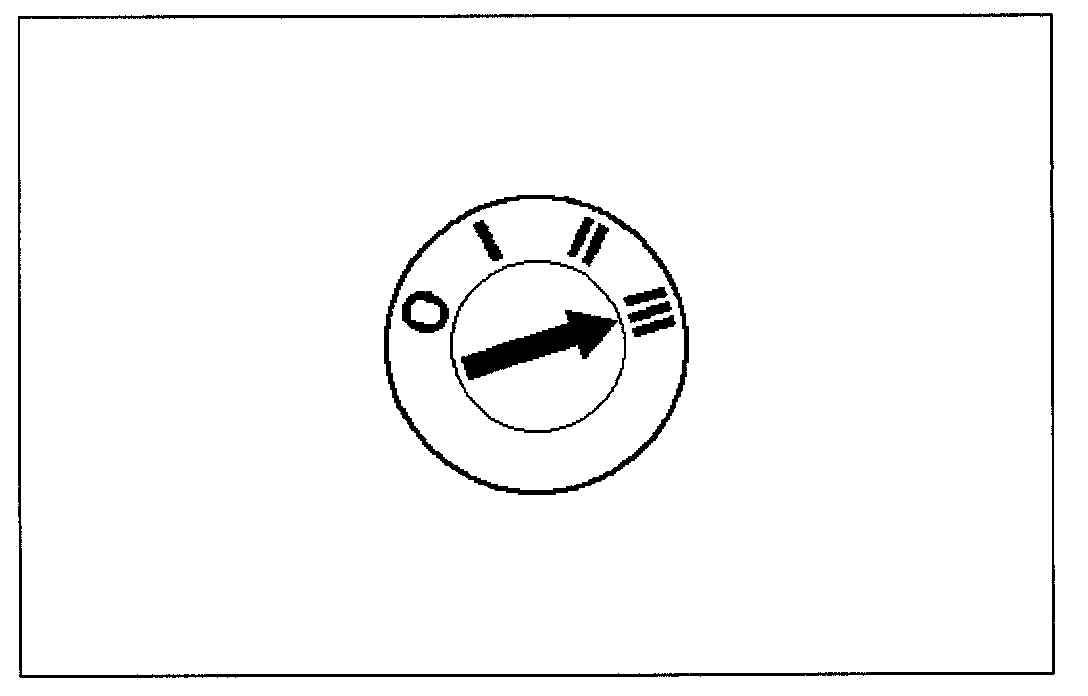

Position 'III'







START. The starter operates for as long as the key is held in this position, against spring pressure. If the engine fails to start, the key must be returned to position 'I' before another start is attempted.
