Electrical Diagram Layout

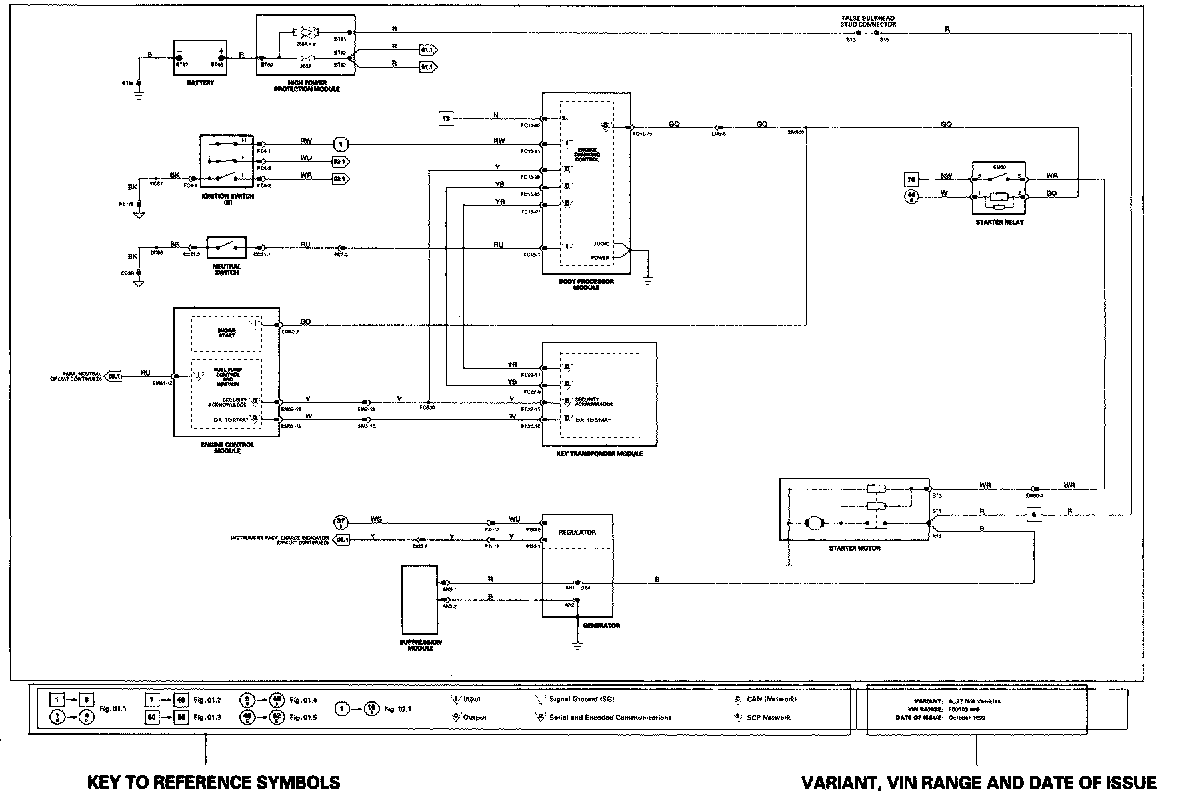

Figure





Each Figure represents a specific electrical system of the vehicle. At the Alldata Vehicle Level the Figures are arranged numerically by system (01 - Power Distribution, 02 - Ground Distribution, etc.) with variations in the system identified by a numeral following a decimal point (01.1, 01.2, etc.). The figures are also duplicated and arranged according to the Alldata heirarchy.

The Figures 01 - Power Distribution detail the distribution of power to each of the systems. Numbered reference symbols refer the user to a specific Figure and from a specific Figure back to the Power Distribution Figures. This method eliminates the need to include detailed Power Distribution information on each of the Figures. Similarly, the Figure 02 - Ground Distribution details the ignition switched ground distribution. For a key to the reference symbols, see "Reference Symbols". Reference Symbols

Each Figure appears at the top of the article with a corresponding Legend below.


Legend
The Legend includes information to assist the user in identifying and locating components, connectors and grounds. This information is supplemented by the illustrations found at Vehicle / Locations. Locations

When network data is required for the understanding of a particular circuit, the user is directed to the "CAN and SCP Network Messages". Description and Operation

Where circuits include a Control Module, Pin Out information is provided with values for "active" and "inactive" states. The values listed are approximately those that can be expected at the control module connector pins with all circuit connections made and all components connected and fitted. "Active" means a load is applied or a switch is ON; "inactive" means a load is not applied or a switch is OFF. This information is provided to assist the user in understanding circuit operation and should be used FOR REFERENCE ONLY.
