Connector Identification

The following connectors are the common harness-to-harness connectors used throughout the vehicle.

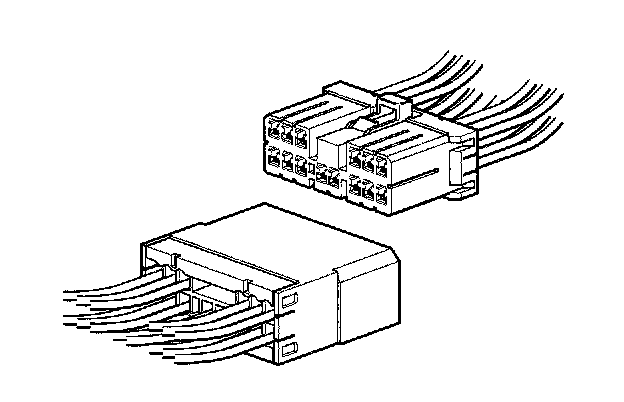

Multilock 040
Low current (used as harness and "direct" connection connector).

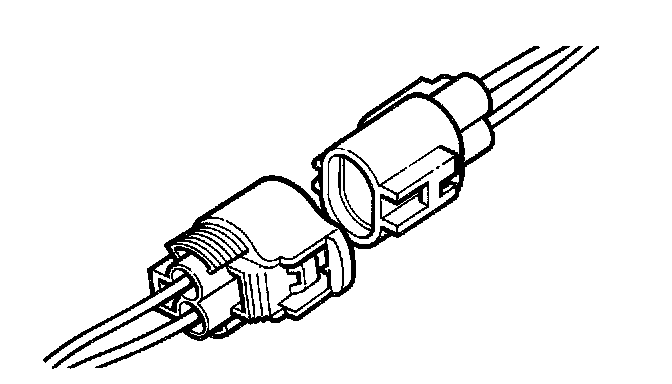

Econoseal III LC
Low current sealed connector.







Ford Card
Used for SRS only.

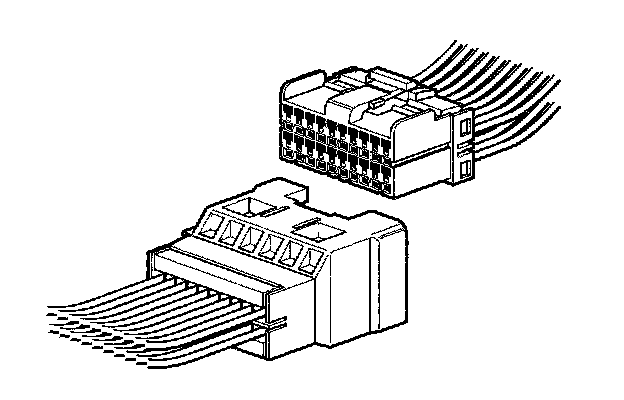

Multilock 070
High current (harness and "direct" connection connector).

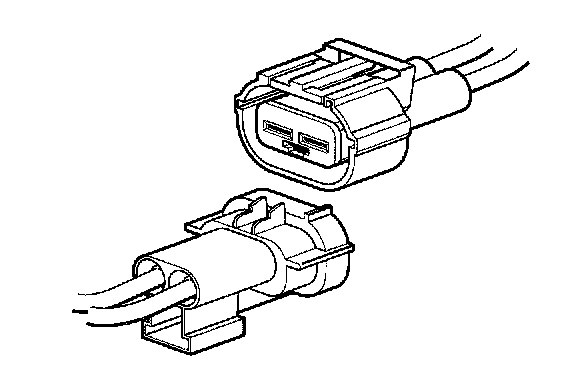

Econoseal III HC
High current sealed connector.

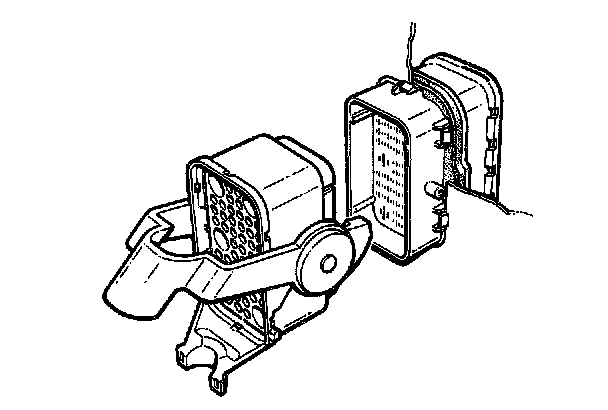

Through Panel
54-way connector

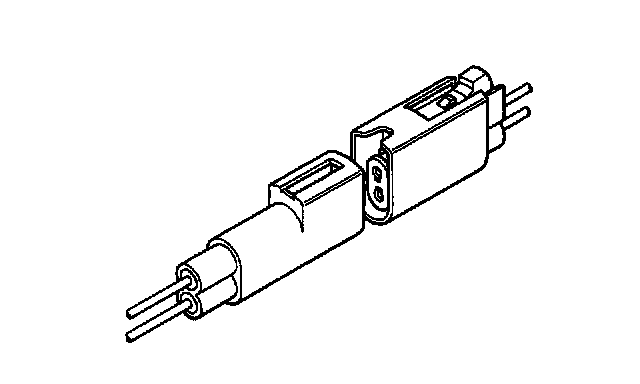

Augat 1.6
2-way connector

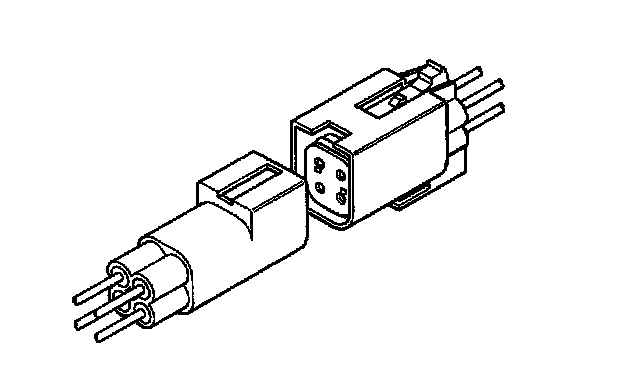

Augat 1.6
4-way connector

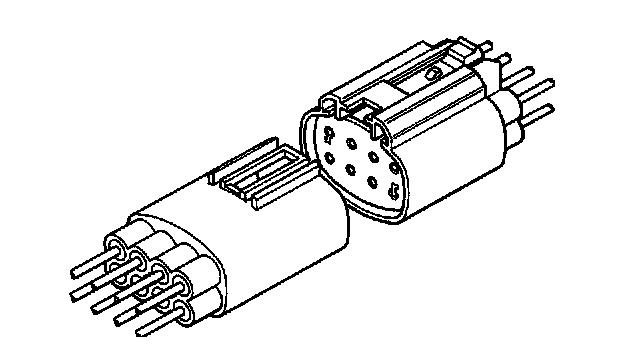

Augat 1.6
8-way connector

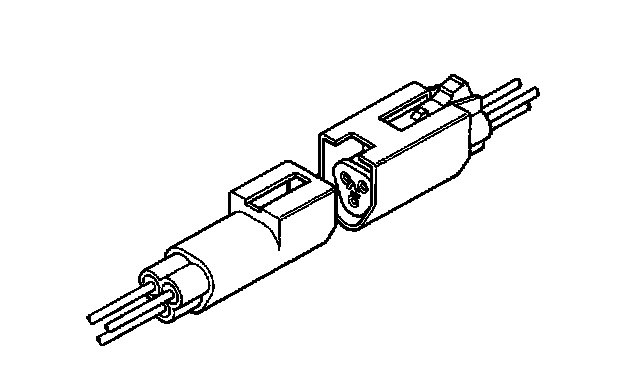

Augat 1.6
3-way connector

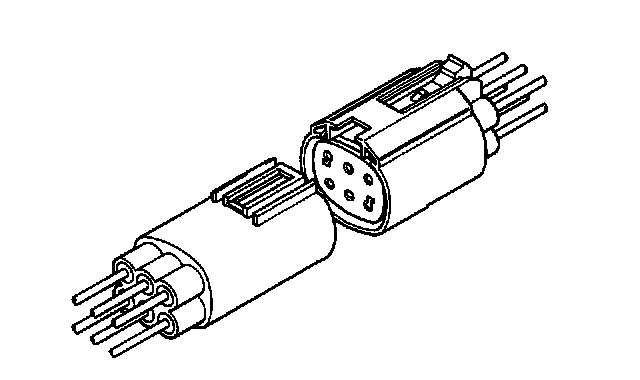

Augat 1.6
6-way connector
