Side Repeater Lamp

Lamp - Indication Side Repeater

Removal

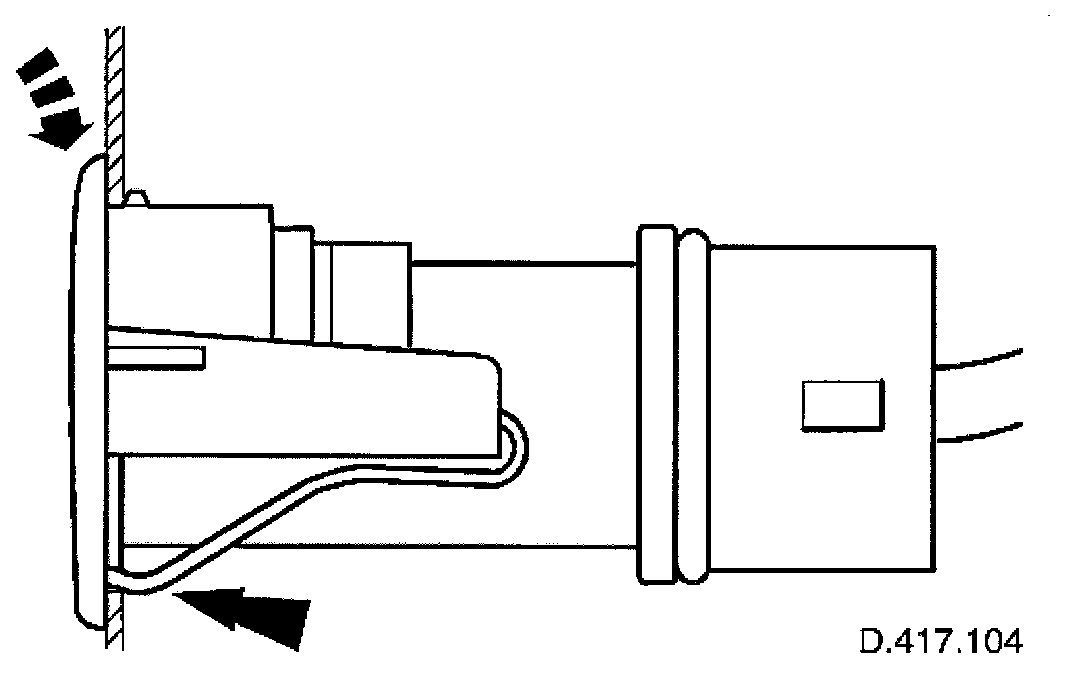

1. Remove side repeater lamp.
- Applying downward pressure, compress retaining clips and release lamp upper edge from fender.
- Withdraw lamp from panel and disconnect harness connector.

Installation
1. Position lamp at fender and connect harness connector.
2. Position lower edge of lamp in fender aperture and apply downward pressure to compress clip.
3. Pivot lamp to seat upper edge in fender.
