Rear Side Marker Lamp

Lamp - Rear Sidemarker

Removal







1. Applying firm thumb pressure to front of lens, pivot lamp assembly for access to rear end.

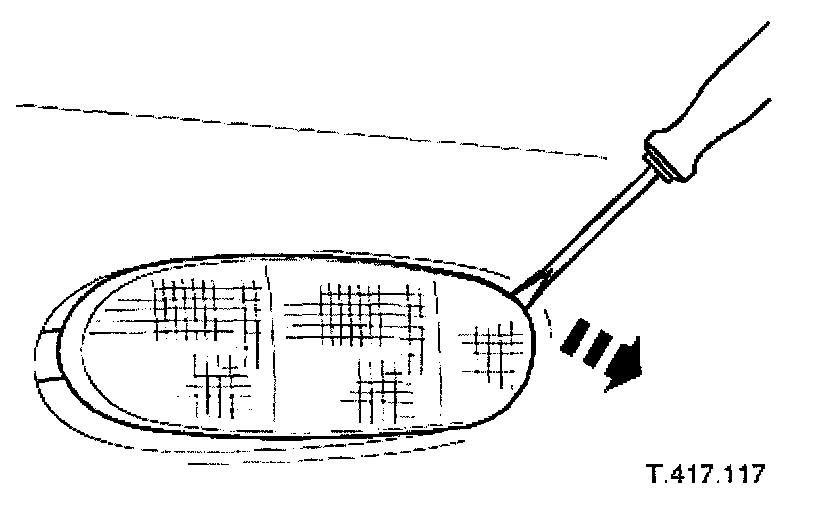

2. Exercising care to avoid damaging paintwork, use a small screwdriver to press and release rear retaining clip.

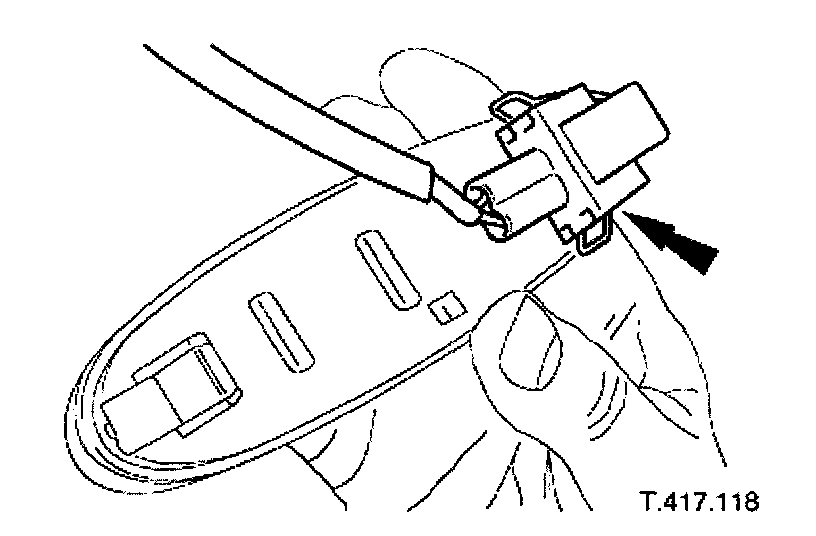

3. Withdraw lamp from bumper for access and disconnect harness connector.

Installation
1. Position lamp at bumper aperture and connect harness connector.
2. Engage front end tang of lamp in bumper aperture.
3. Pivot lamp assembly and firmly seat rear retaining clip in bumper aperture.
