Front Side Marker Lamp

Lamp - Front Side Marker

Removal

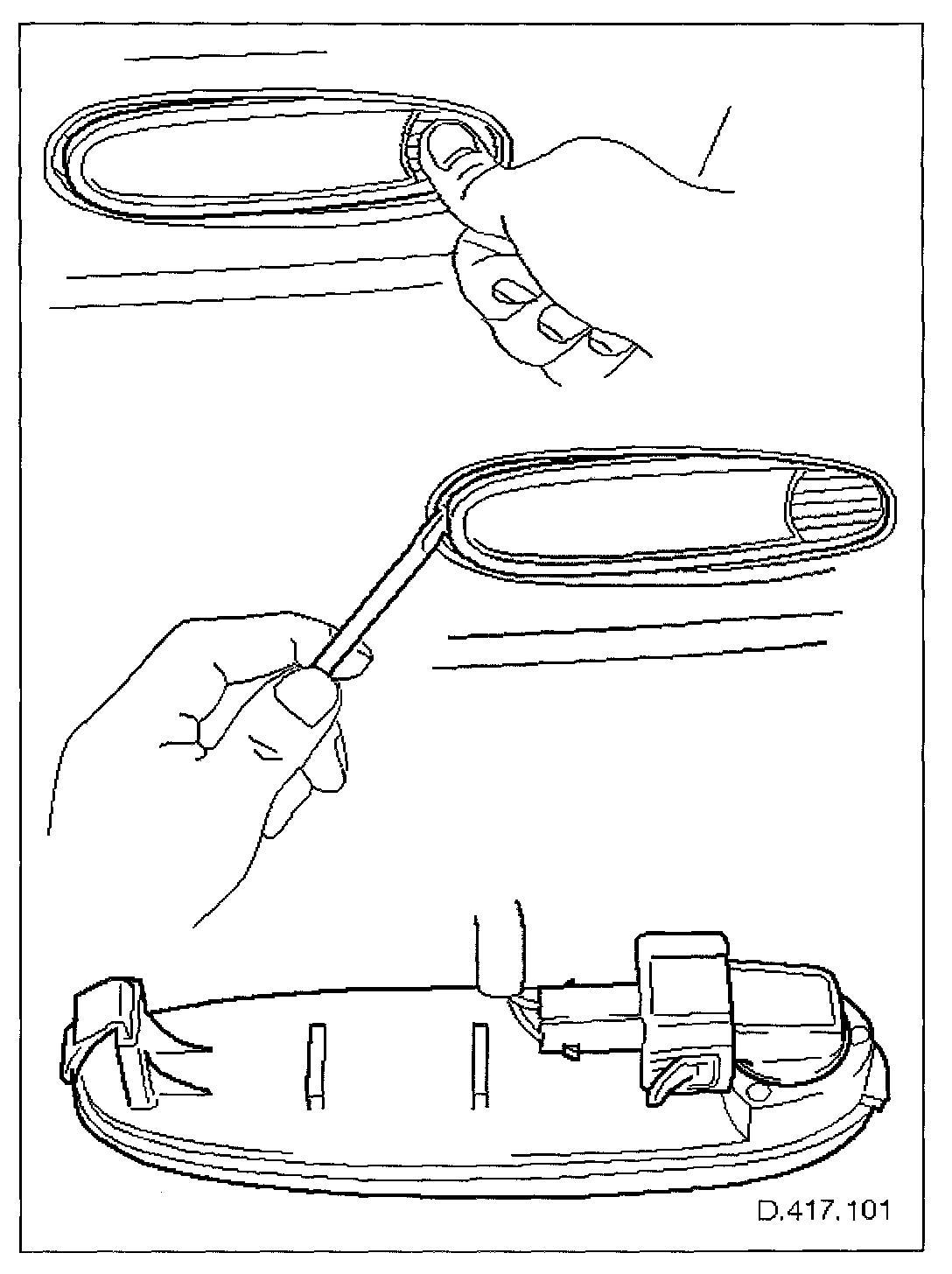

1. Remove lamp unit.
- Apply gentle thumb pressure to front end of lamp lens.
- Exercising care to avoid damaging paintwork, compress rear spring clip to release lamp unit. Disconnect harness connector.

Installation
1. Position lamp at bumper and connect harness connector.
2. Engage lamp front tang in bumper aperture.
3. Pivot lamp, compress rear clip and fully seat lamp in bumper.
