License Plate Lamp: Service and Repair

Rear Number Plate Lamp Assembly

Removal

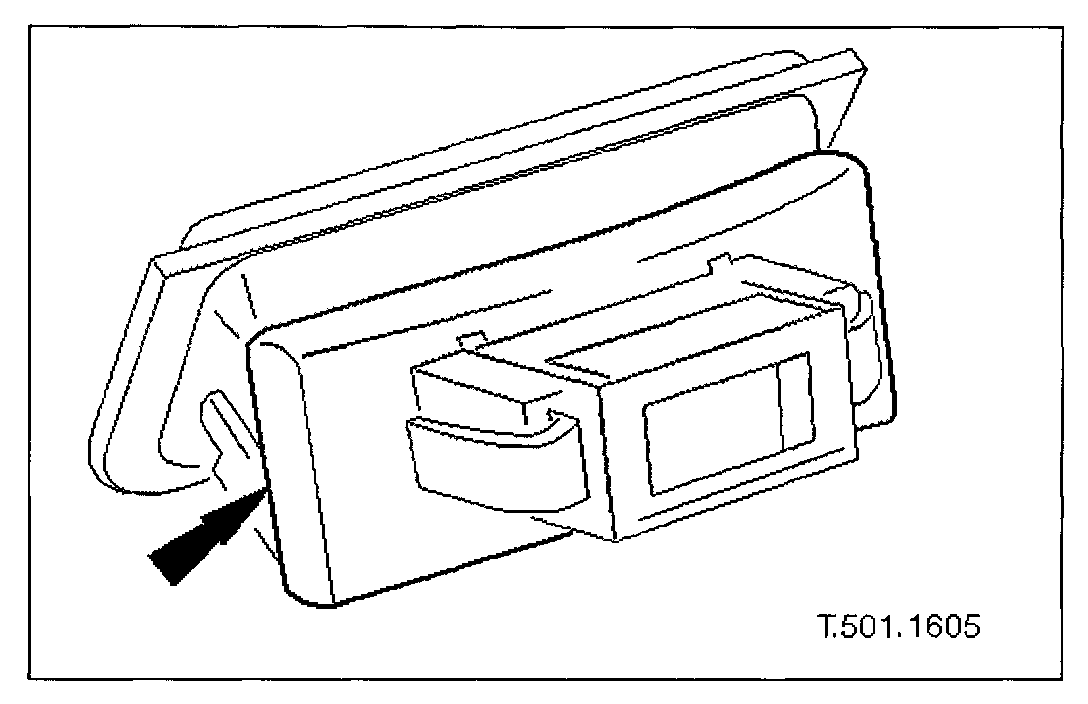

1. Remove battery cover and disconnect ground cable from battery terminal.
2. Remove trunk lamp assemblies.
3. Remove trunk lid upper trim finisher.







4. From inside trunk lid press tang at each side of lamp and push lamp outwards.

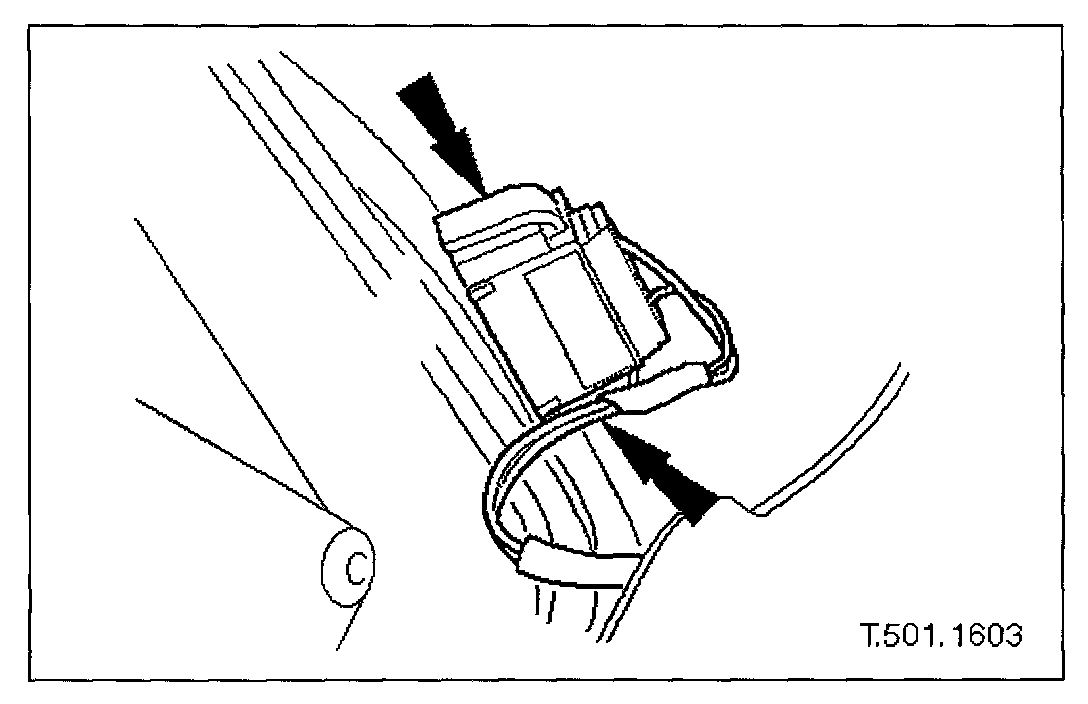

5. Withdraw number plate lamp from trunk lid for access and disconnect lamp harness multiplug.







6. Remove and discard foam seal from lamp.

Installation
1. Install new foam seal to number plate lamp.
2. Position number plate lamp at trunk lid and connect harness multiplug.
3. Install number plate lamp in trunk lid aperture ensuring that seal seats correctly.
4. Install trunk upper trim finisher.
5. Install trunk lamp assemblies.
6. Connect ground cable to battery terminal and fit battery cover.
