With Remote Levelling

Headlamp Unit Outer - Remote Levelling

Removal
1. Remove headlamp assembly for access. Headlamp Assembly

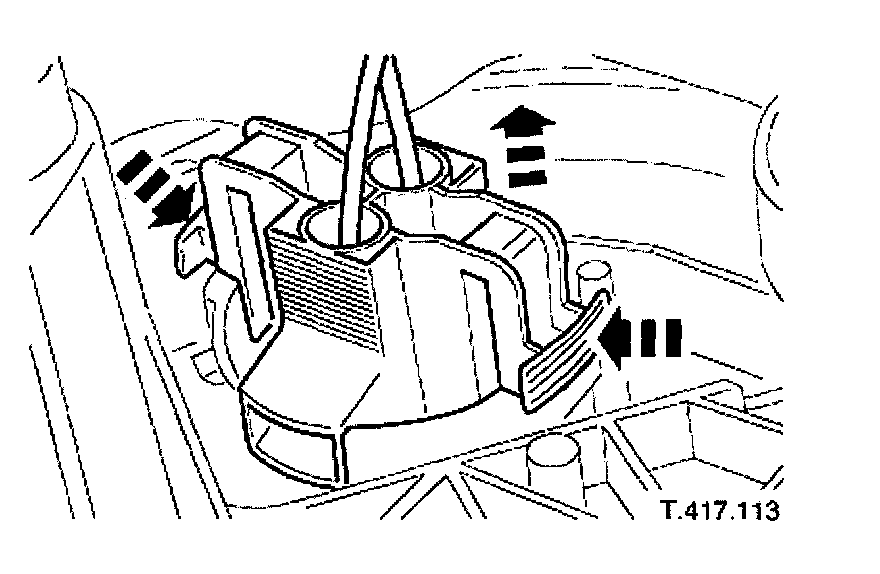

2. Release bulb holder securing tangs and withdraw holder for access.
3. Invert headlamp assembly.







4. Release headlamp unit adjusting screws and pivot







5. Remove actuator.
1. Release headlamp unit from leveling actuator adjusting screw.

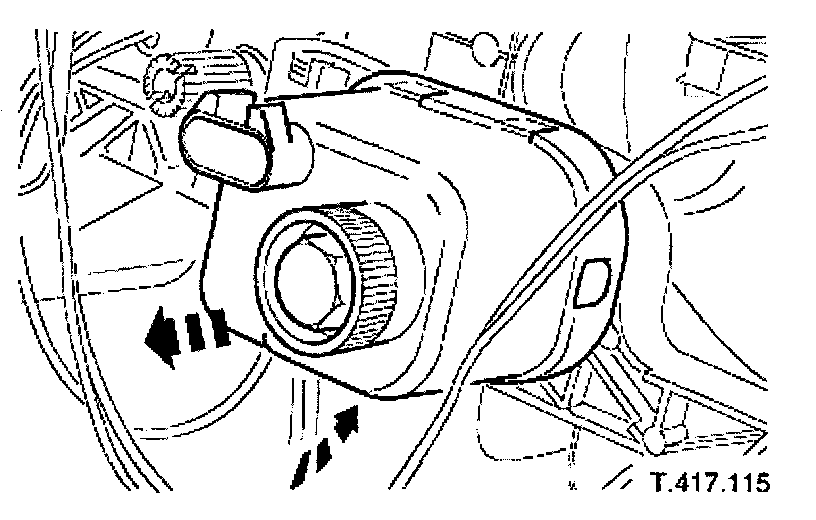

2. Rotate actuator 1/4 turn inward, tilt forward end downward and withdraw assembly from headlamp.

Installation
1. Install headlamp unit adjusting screws and pivot in locating seats.
2. Invert headlamp assembly and install bulb holder.
3. With forward end tilted downward, position actuator assembly on headlamp mounting.
4. Align actuator with headlamp and rotate it 1/4 turn outwards to engage and fully seat in mounting.
5. Install headlamp assembly. Headlamp Assembly
6. Align headlamp beams.
