Headlamp Unit - Inner

Headlamp Unit - Inner

Removal
1. Remove headlamp assembly for access. Headlamp Assembly

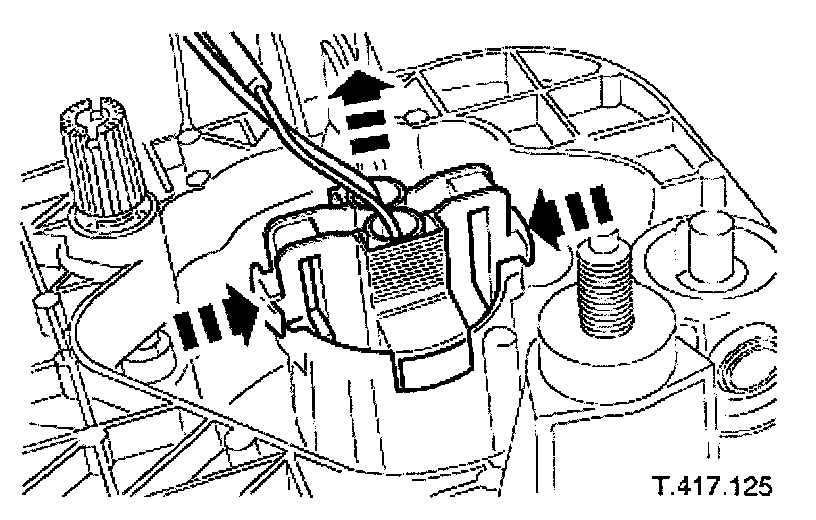

2. Release bulb holder securing tangs and position holder for access.







3. Rotate pilot bulb holder 1/4 turn and withdraw holder.

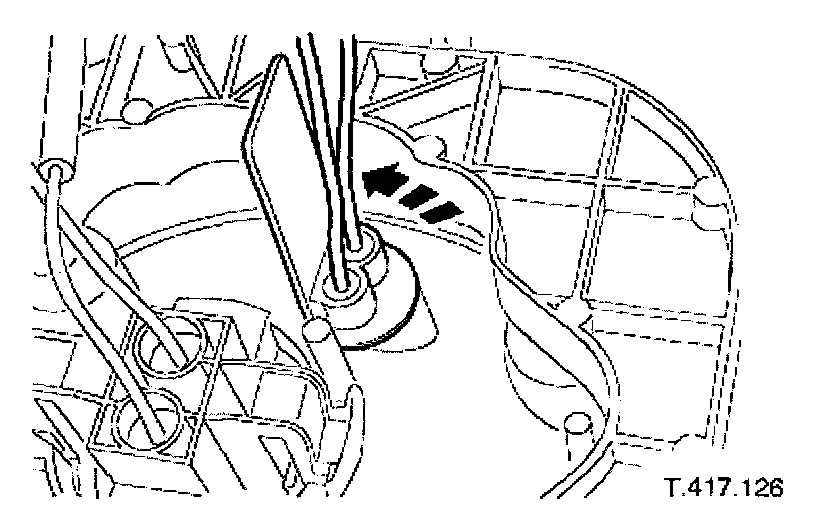

4. Invert headlamp assembly.

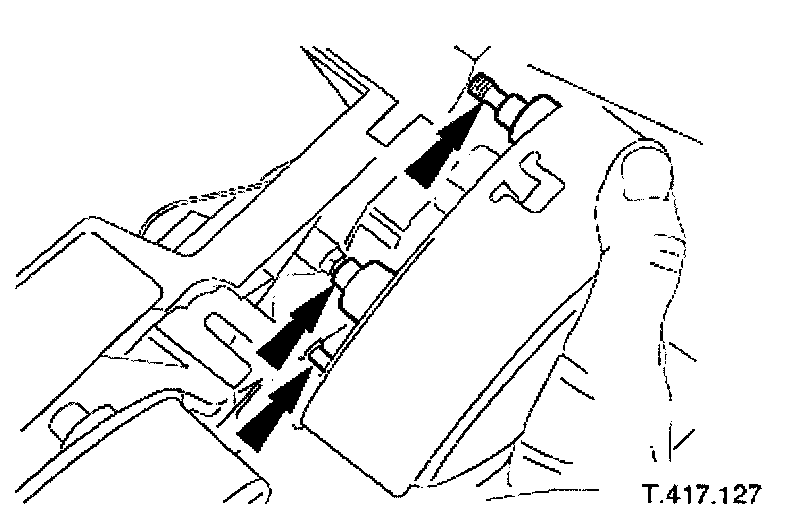

5. Release headlamp unit adjusting screws and pivot.

Installation







1. Install headlamp unit on adjusting screw and pivot seats.
2. Invert headlamp assembly.







3. Install pilot bulb holder in headlamp unit and rotate 1/4 turn to secure.







4. Install headlamp assembly bulb holder.
5. Install headlamp assembly. Headlamp Assembly
6. Align headlamp beams.
