Backup Light Bulb: Service and Repair

Rear, Stop, Direction Indicator and Reverse Lamp Bulbs and Bulb Holder

Removal







1. Depress retaining tab and remove rear lamp interior trim finisher.







2. Disconnect rear lamp harness multiplug.

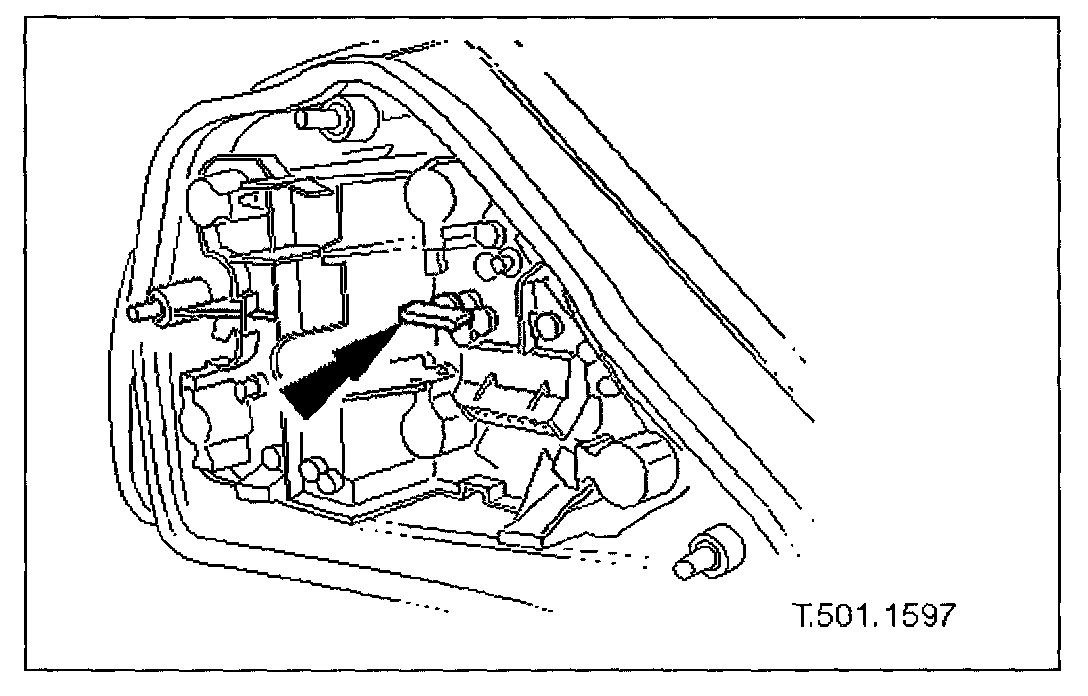

3. Rotate bulb holder retaining fastener 1/4 turn counter-clockwise and withdraw holder from rear lamp lens.

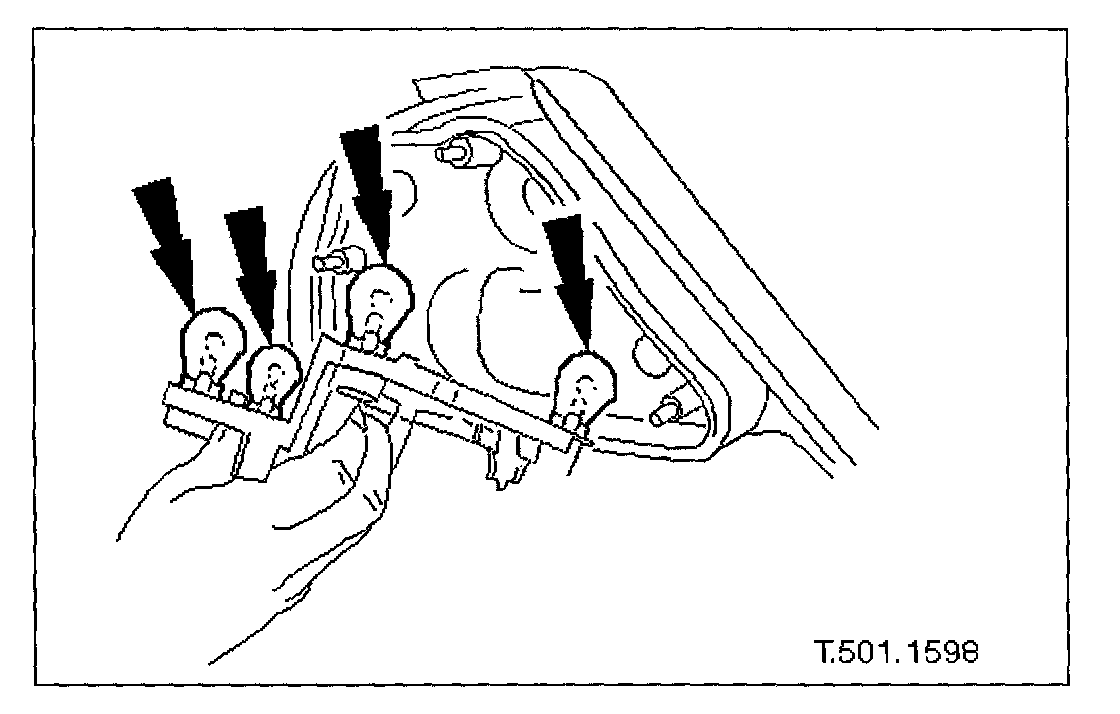

4. Remove bulbs from holder as necessary.

Installation
1. Install bulbs in holder as necessary.
2. Position bulb holder assembly on rear lamp lens and rotate fastener 1/4 turn clockwise to secure.
3. Connect rear lamp harness multiplug.
4. Install rear lamp interior trim finisher.
