Pinout Values and Diagnostic Parameters

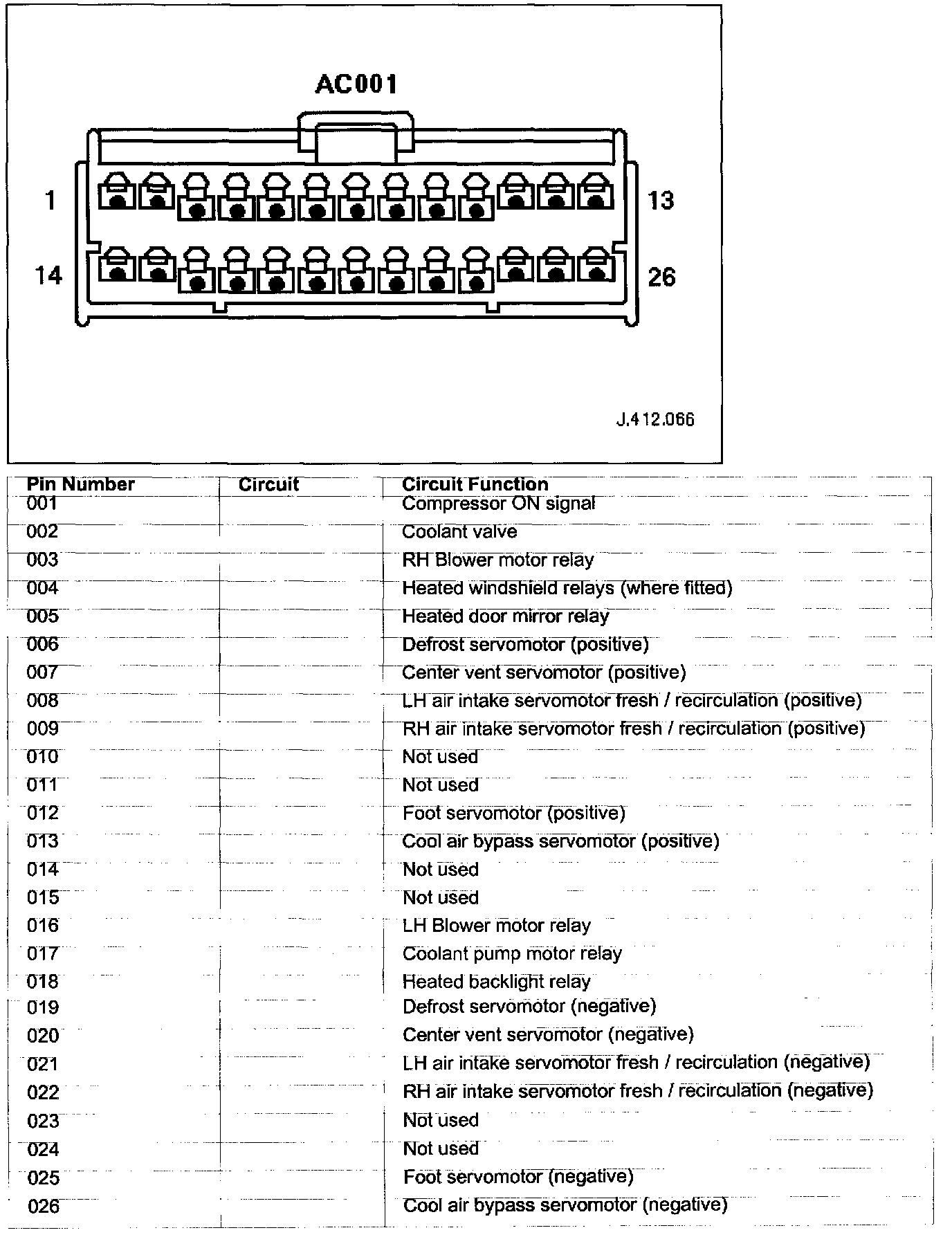

Connector Pin Identity Chart for AC001:

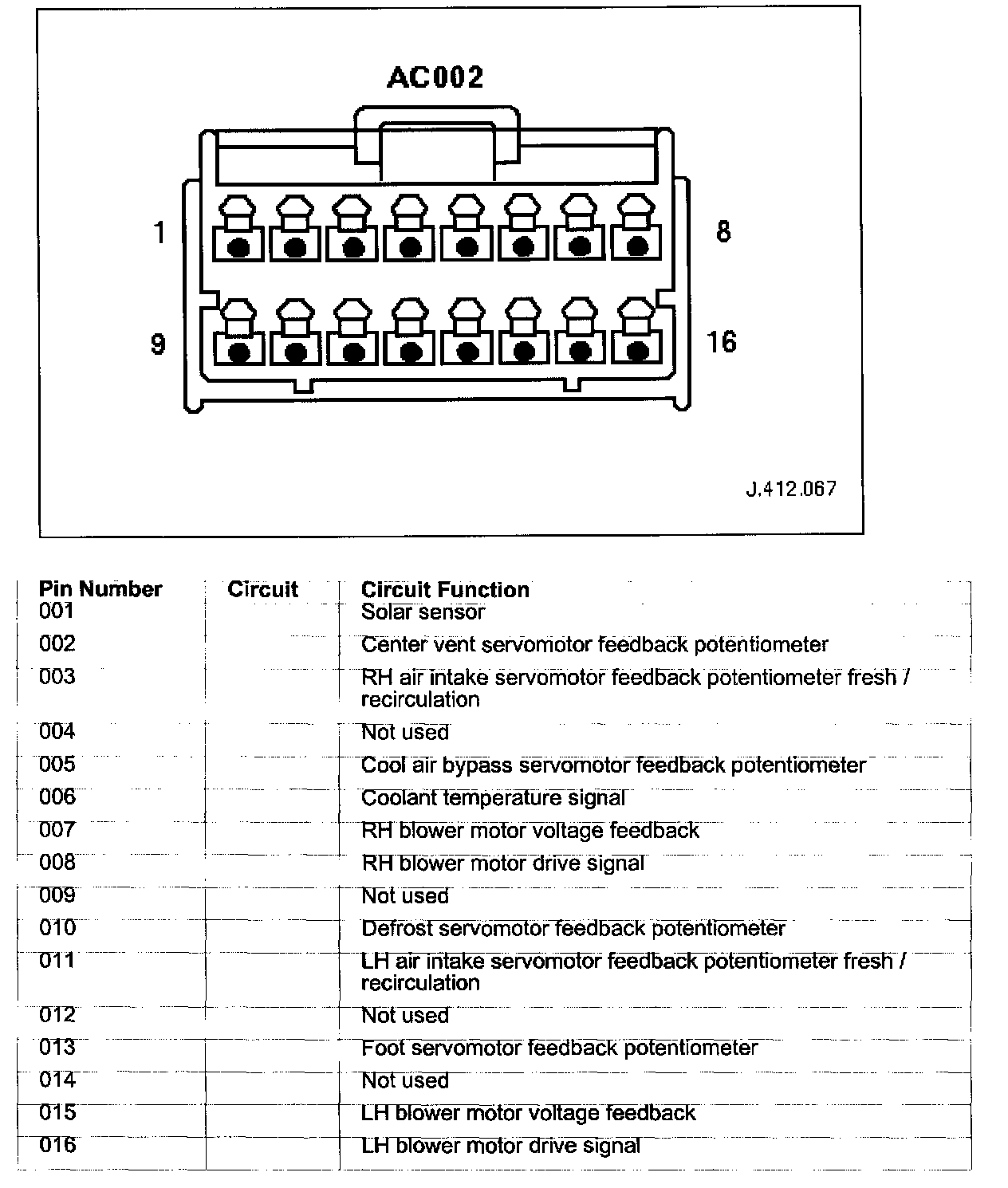

Connector Pin Identity Chart for AC002:

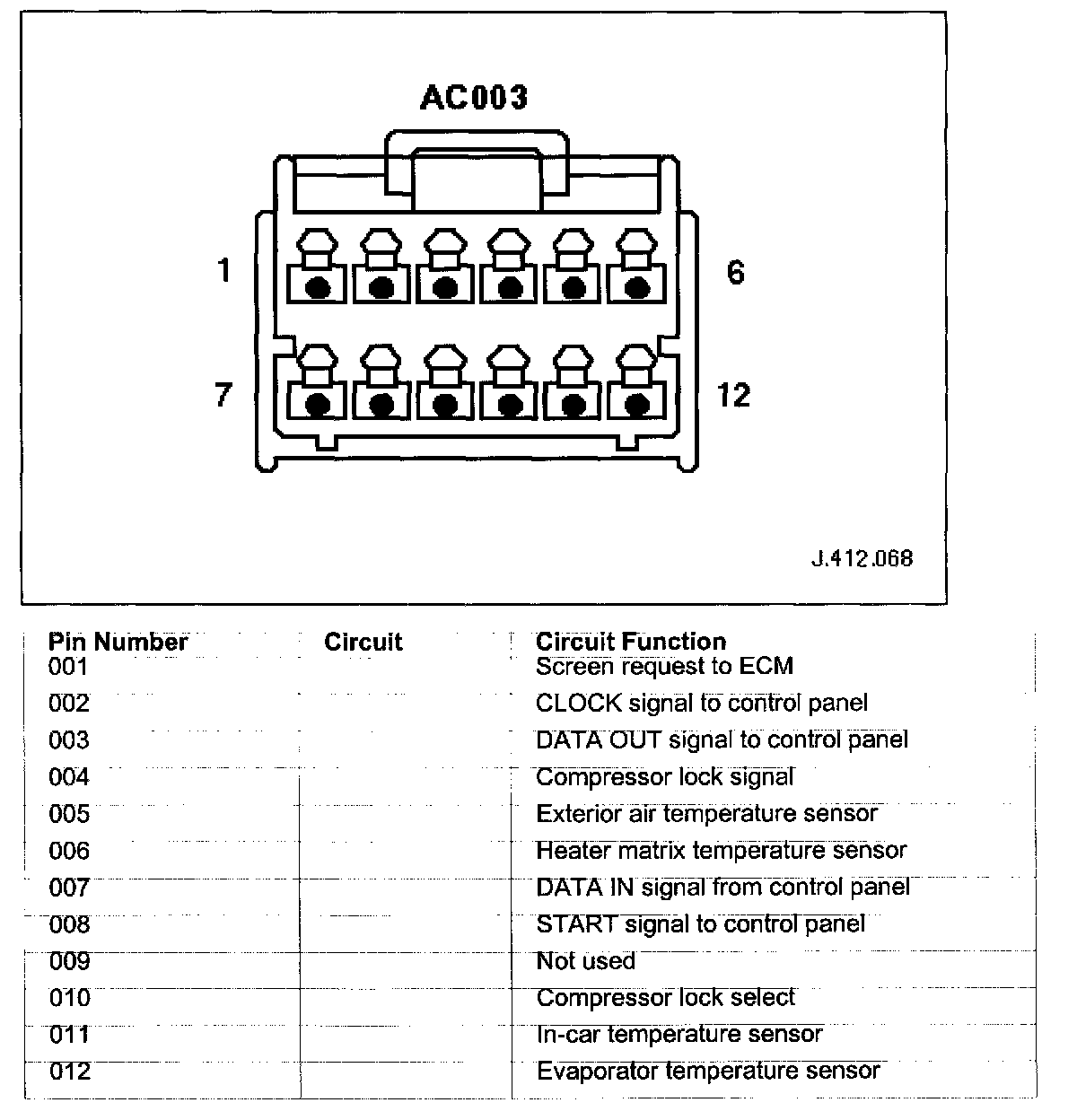

Connector Pin Identity Chart for AC003:

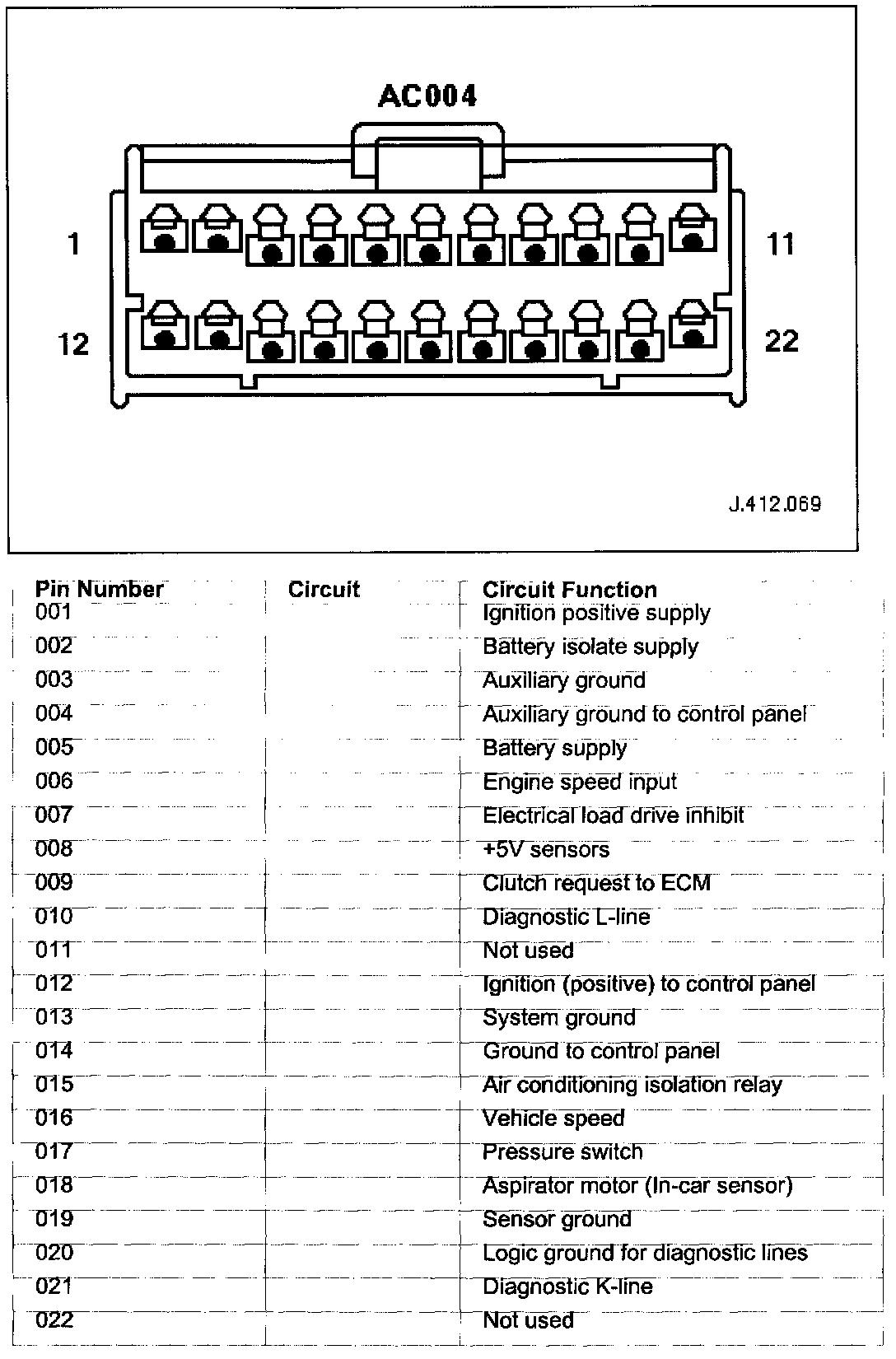

Connector Pin Identity Chart for AC004:






Connector Pin Identity Chart for FC043:
