Maximum Heating/Cooling

Maximum Heating/Cooling

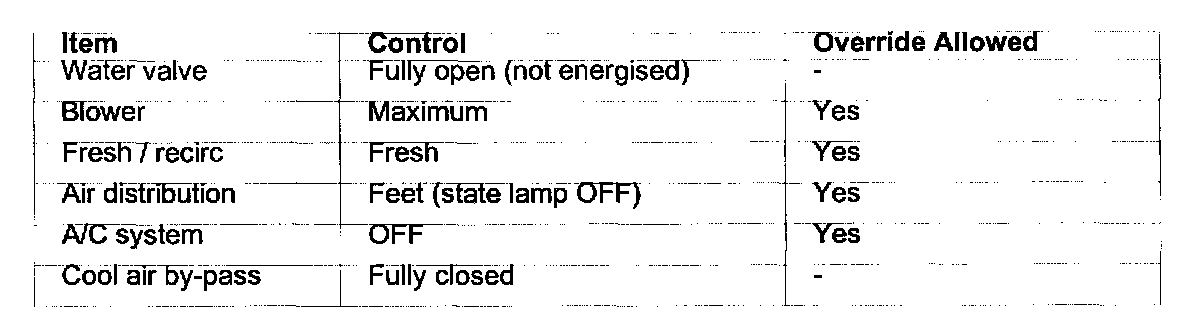

Maximum Heating (Temperature Setting HI):

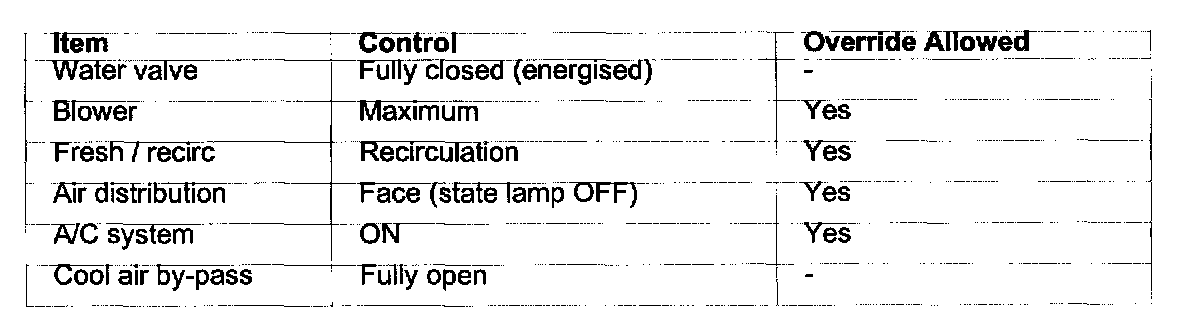

Maximum Cooling (Temperature Setting LO):
