AJ26 4.0 SC ROW

���:

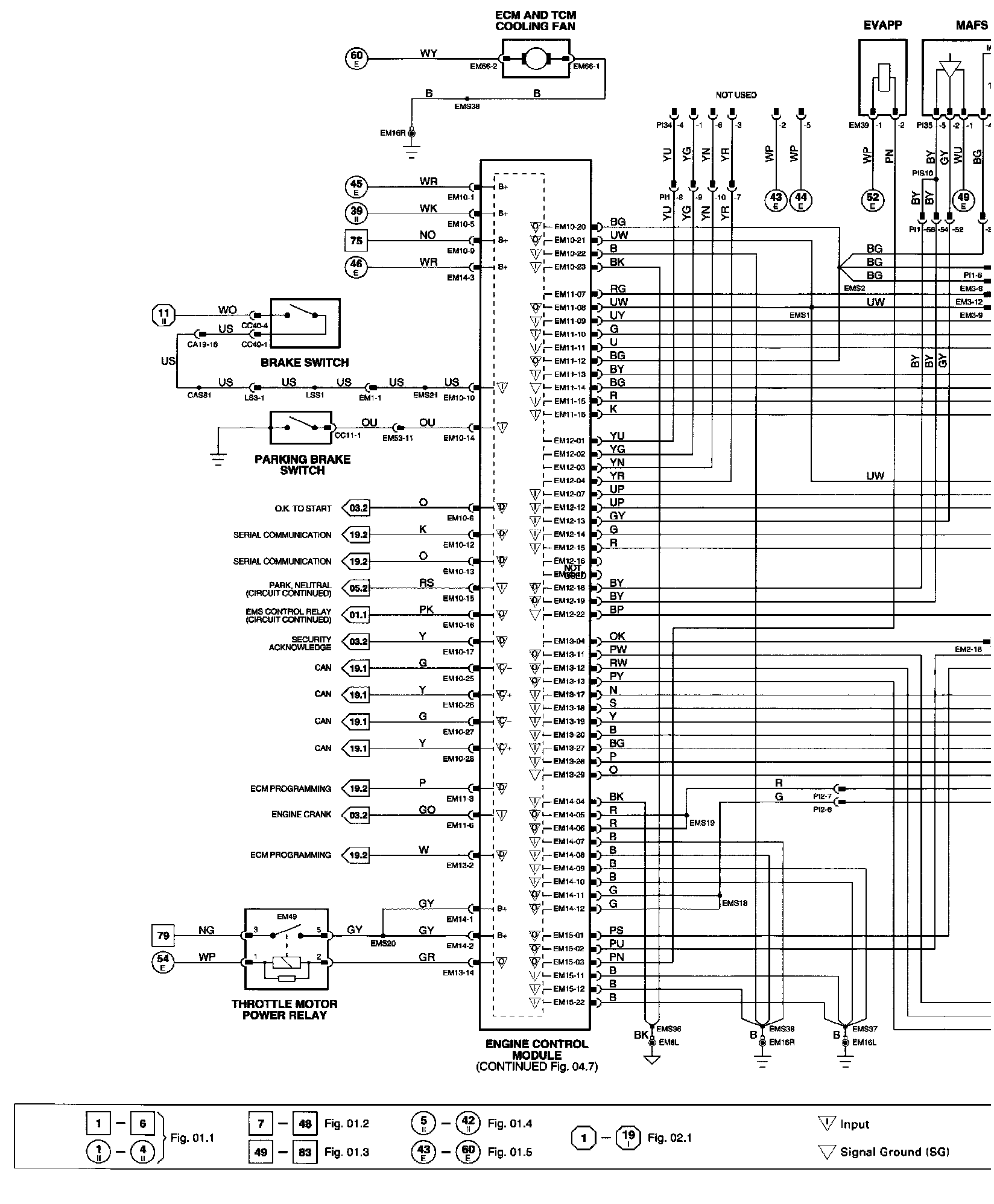

Wiring Diagram


Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

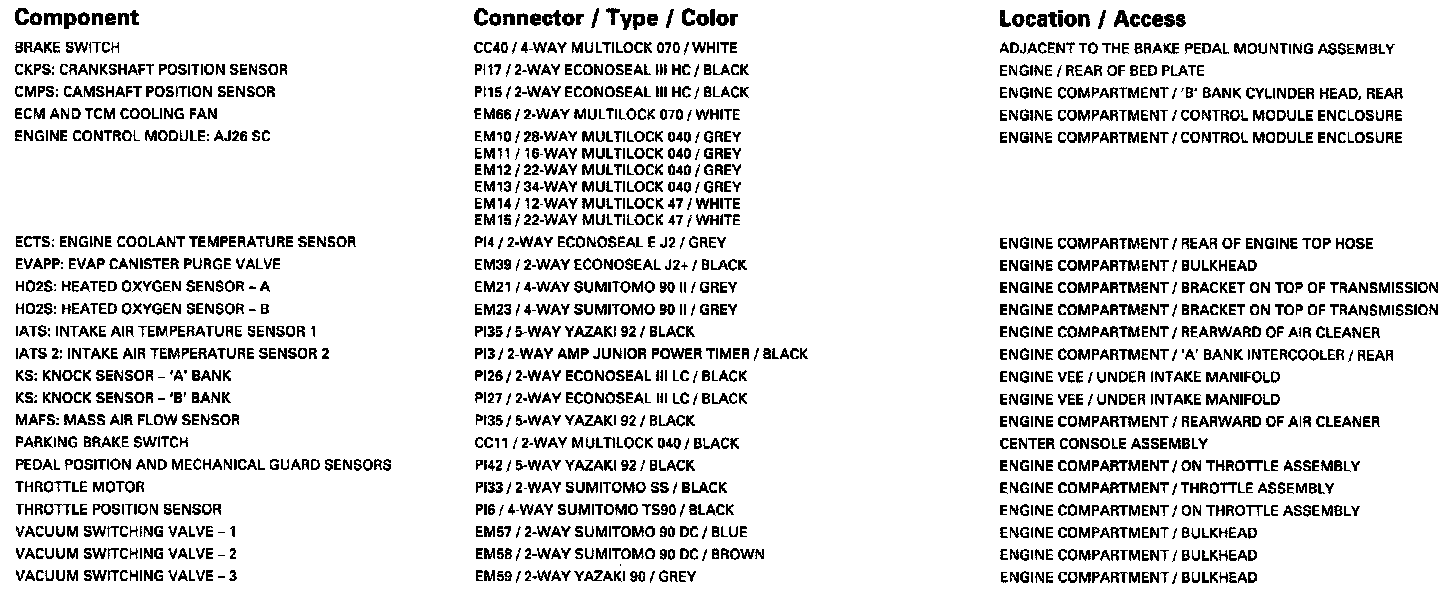

Component Information







Relay Information

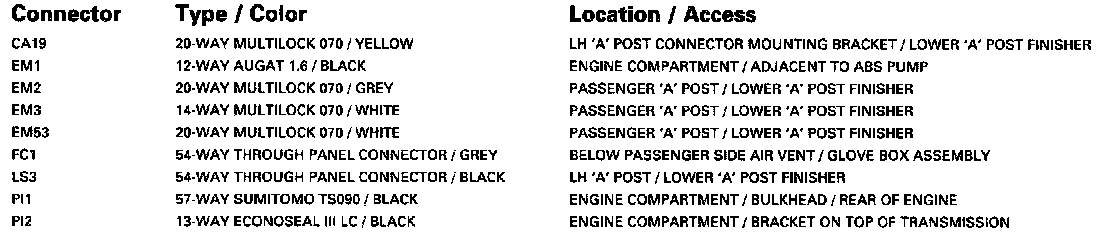

Harness to Harness Connector Information

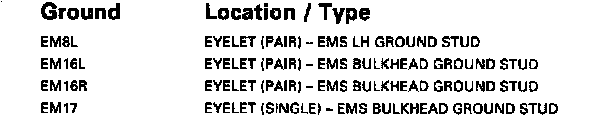

Ground Information

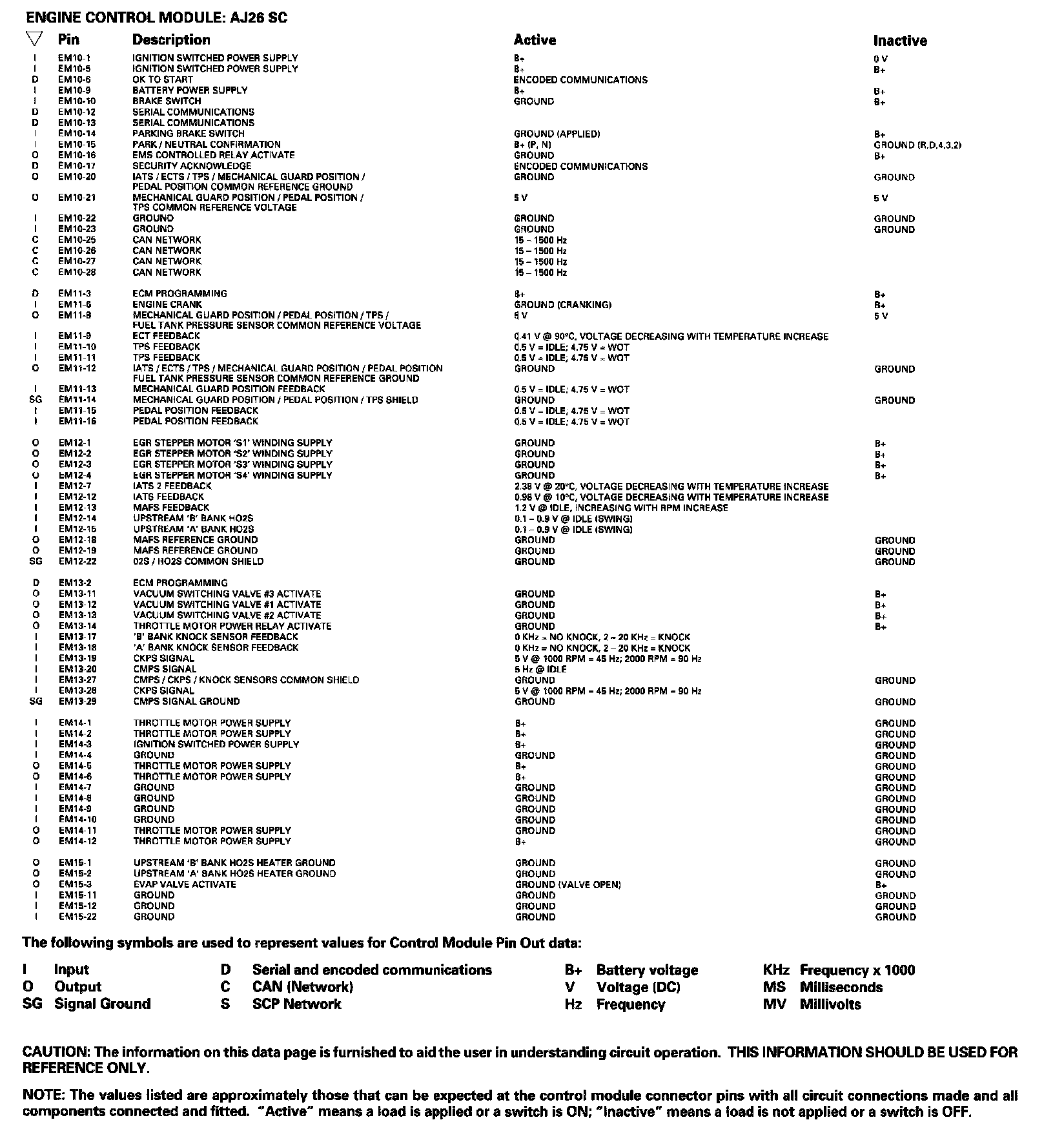

Control Module Pin Out Information
