Automatic Transmission Schematics

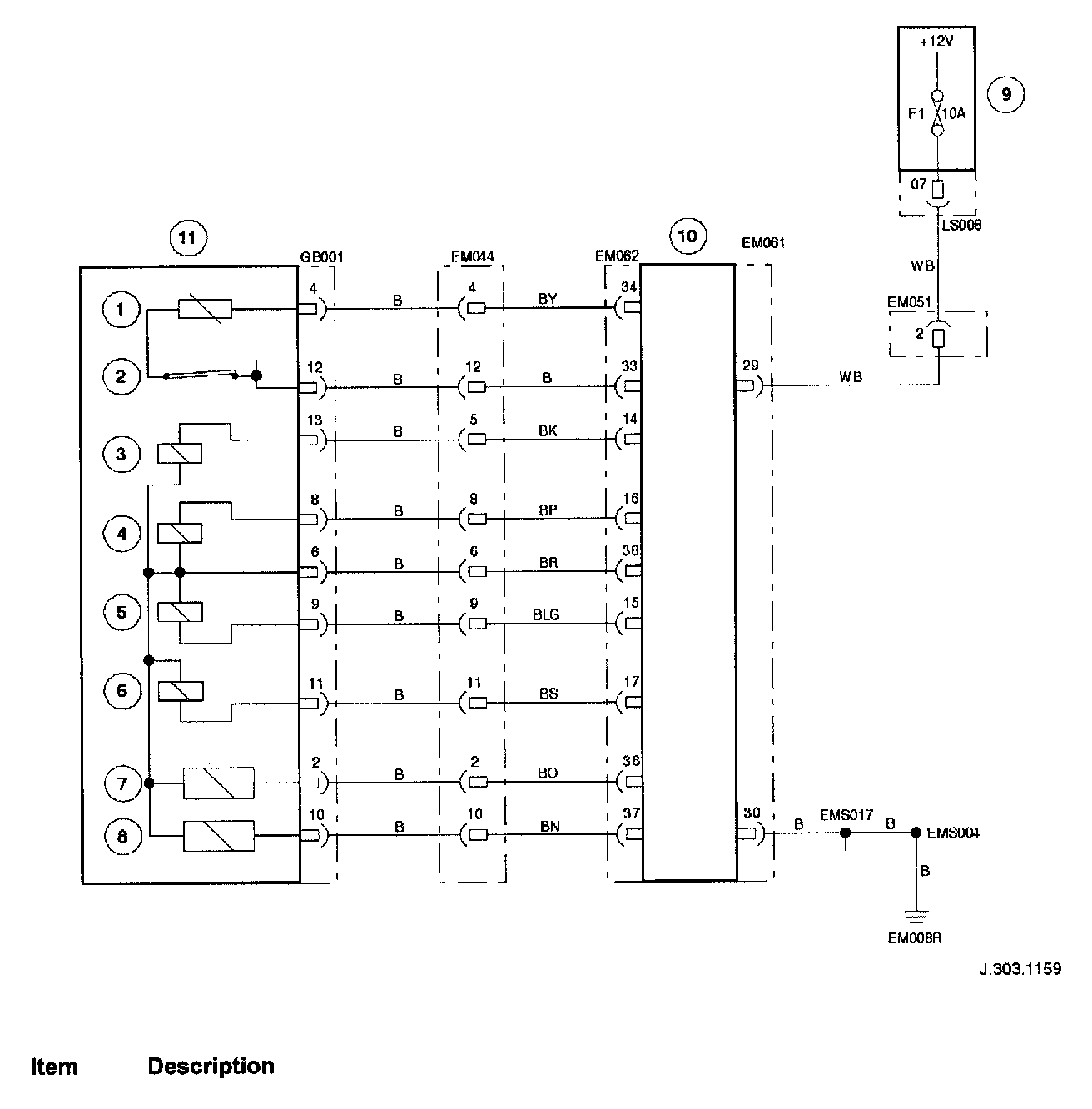

Transmission Pressure Regulators and Shift Solenoids Circuit Diagram

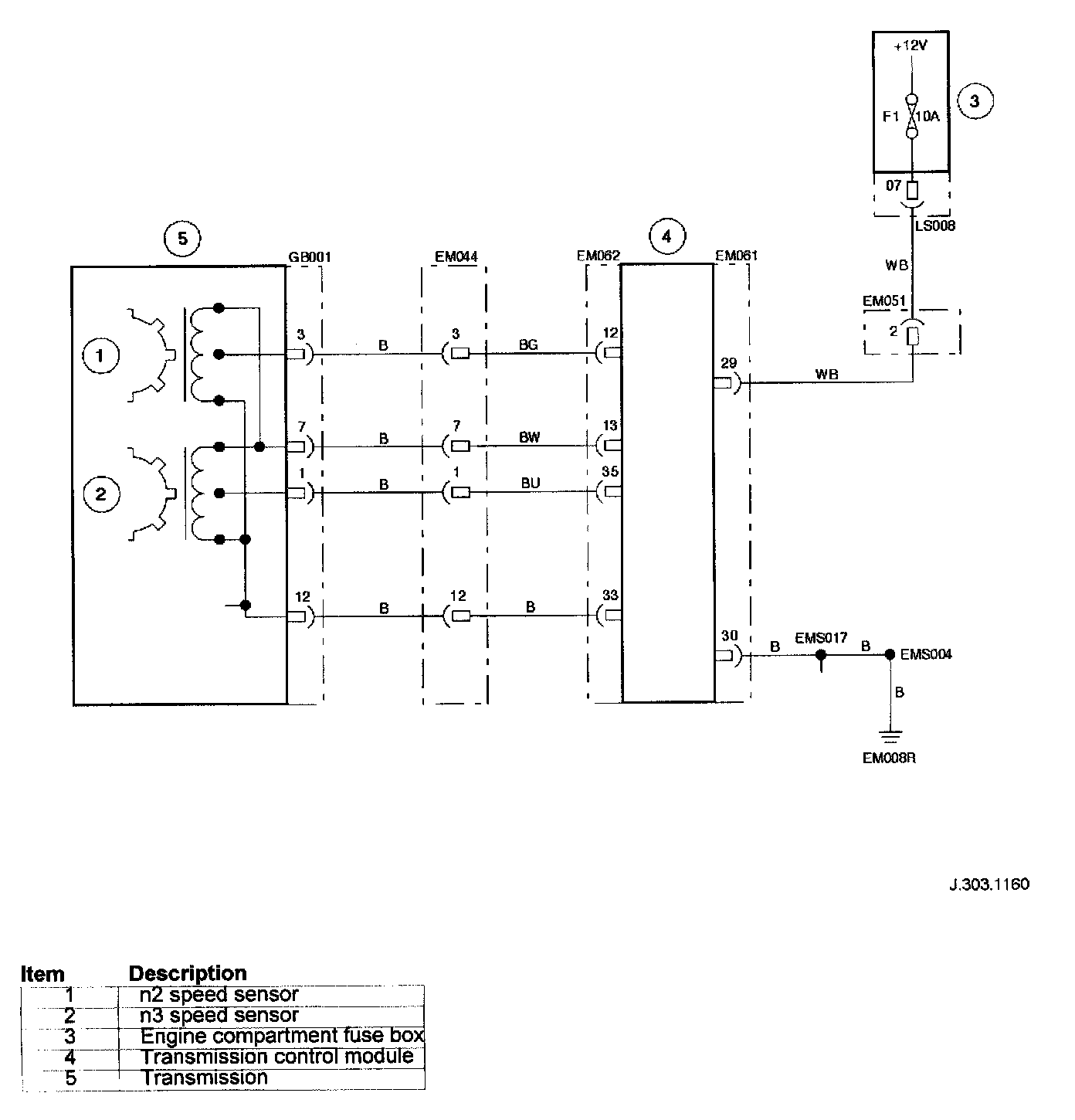

Speed Sensor/TCM Circuit Diagram
